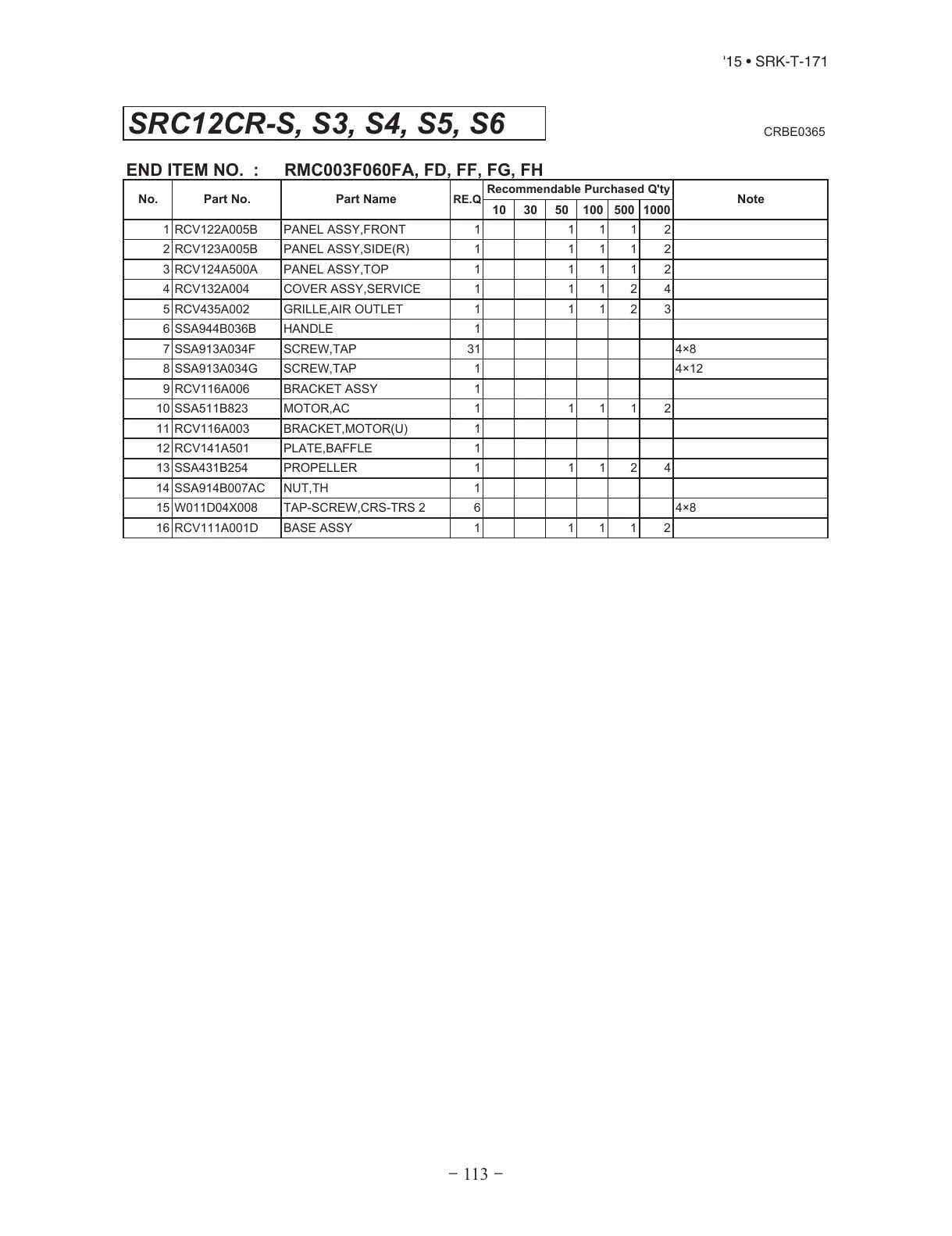

CRBE0365
END ITEM NO. : RMC003F060FA, FD, FF, FG, FH
10 30 50 100 500 1000
1 RCV122A005B PANEL ASSY,FRONT 1 1 1 1 2
2 RCV123A005B PANEL ASSY,SIDE(R) 1 1 1 1 2
3 RCV124A500A PANEL ASSY,TOP 1 1 1 1 2
4 RCV132A004 COVER ASSY,SERVICE 1 1 1 2 4
5 RCV435A002 GRILLE,AIR OUTLET 1 1 1 2 3
6 SSA944B036B HANDLE 1
7 SSA913A034F SCREW,TAP 31 4×8
8 SSA913A034G SCREW,TAP 1 4×12
9 RCV116A006 BRACKET ASSY 1
10 SSA511B823 MOTOR,AC 1 1 1 1 2
11 RCV116A003 BRACKET,MOTOR(U) 1
12 RCV141A501 PLATE,BAFFLE 1
13 SSA431B254 PROPELLER 1 1 1 2 4
14 SSA914B007AC NUT,TH 1
15 W011D04X008 TAP-SCREW,CRS-TRS 2 6 4×8
16 RCV111A001D BASE ASSY 1 1 1 1 2
NoteNo. Part No. Part Name
RE.Q
Recommendable Purchased Q'ty
