Page 5
Fig #1
FRONT VIEW
Output Breaker
Inv. Power
Low battery
Overload
High temp.
Dimensions
Chassis
Bonding Lug
Fuse
Fuse
Remote
On/Off
Switch
Black (-)
Red (+)
Battery
Input
Remote
On/Off
A.C.
Output
120VAC, 60Hz
Output
+ -
12VDC
+ -
12VDC
+ -
12VDC
+ -
12VDC
Note 1: Remote switch to be connected to +12VDC, +24VDC or +48VDC depending on inverter model.
Ground

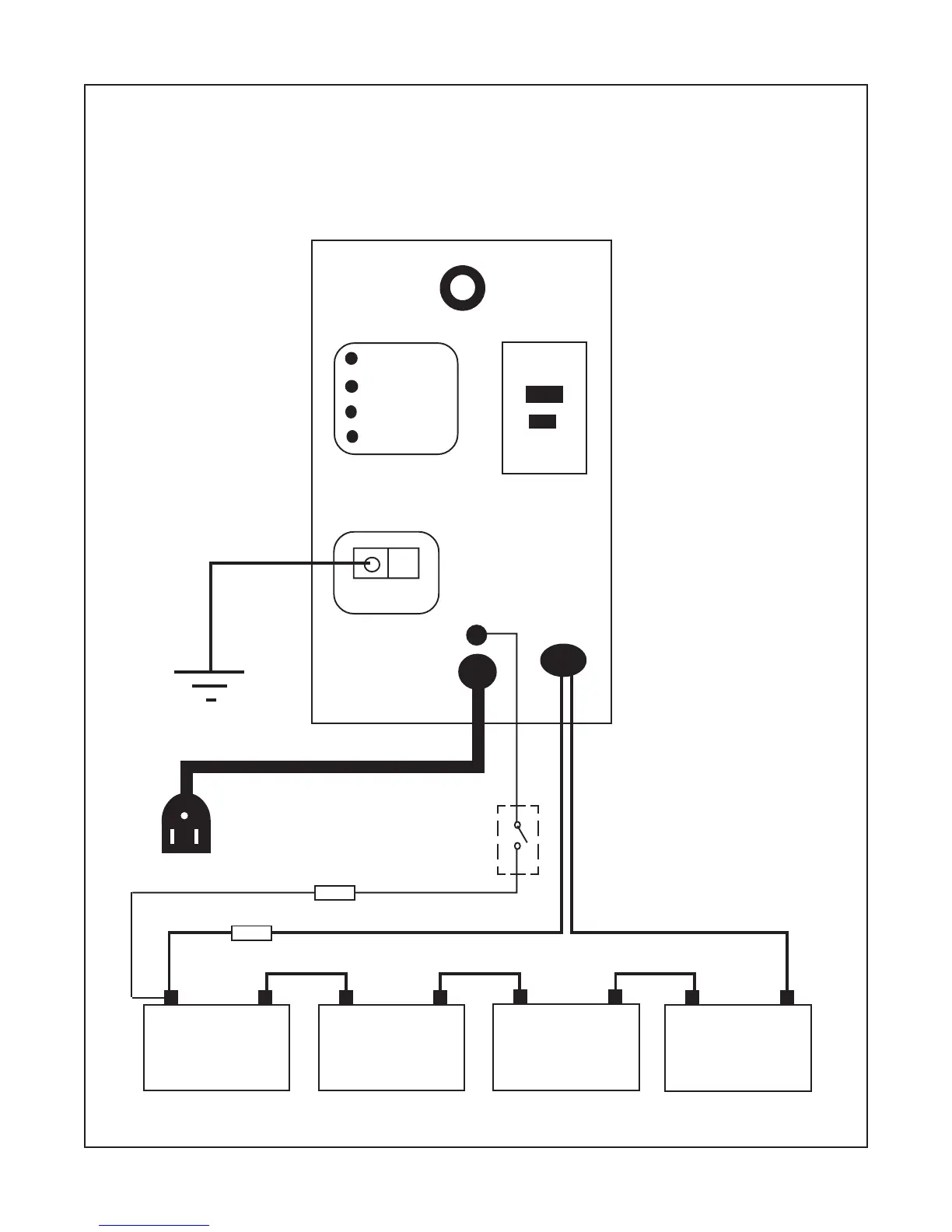

WIRING DIAGRAM FOR MODEL 48Z8NV
GFCI
Four batteries in series
