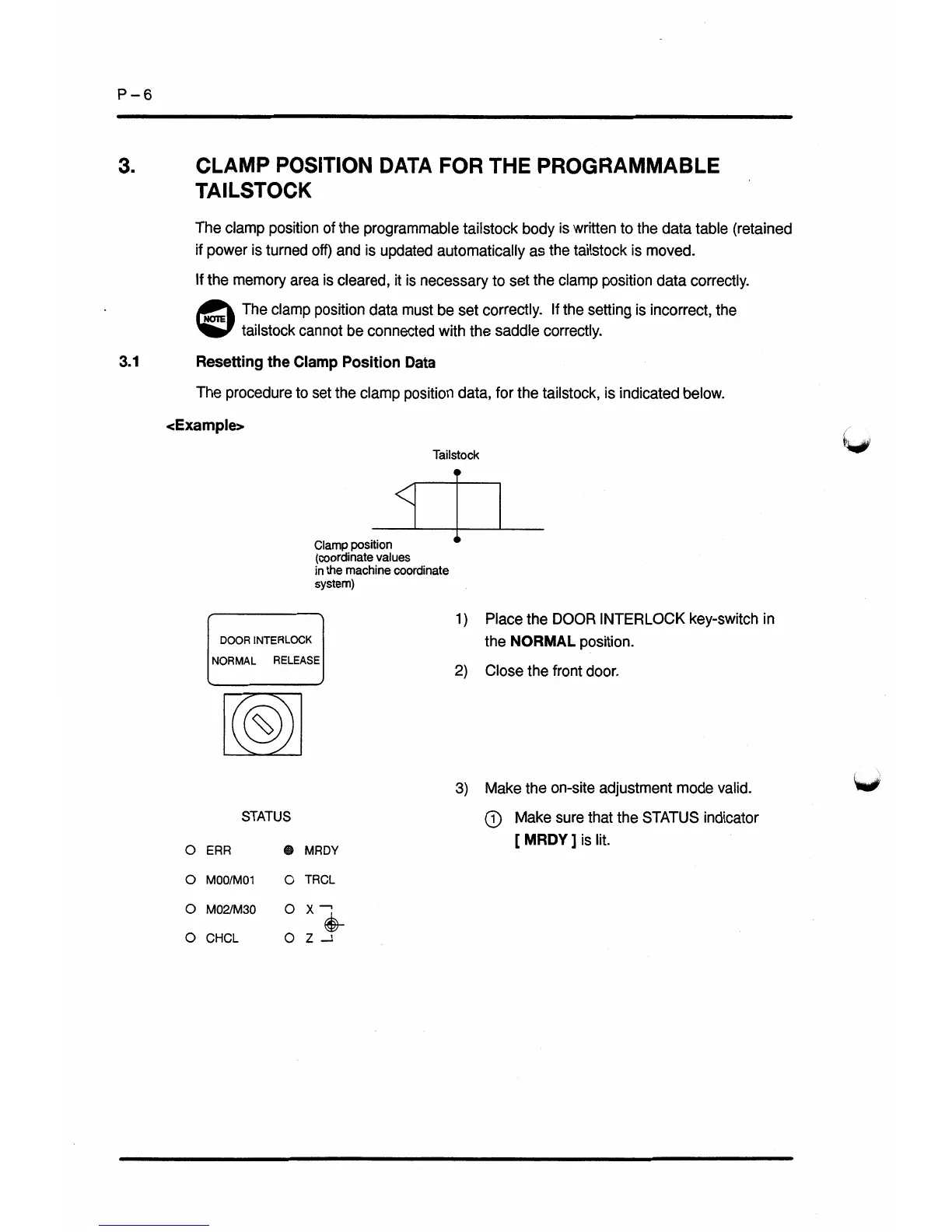

P-6
CLAMP
POSITION
DATA
FOR
THE
PROGRAMMABLE
TAILSTOCK
3.
The
clamp
position
of
the
programmable
tailstock
body
is written
to
the
data
table
(retained
if
power
is
turned
off)
and is
updated
automatically
as
the tailstock is moved.
If
the
memory
area
is
cleared,
it
is
necessary
to
set
the
clamp position
data
correctly.
The
clamp
position
data
must
be
set
correctly.
If
the
setting
is
incorrect,
the
tailstock
cannot
be
connected
with
the saddle
correctly.
Resetting
the
Clamp
Position
Data
The
procedure
to
set
the
clamp
position
data,
for
the
tailstock,
is indicated below.
<Example>
©
3.1
1ÿ0
Tailstock
<1
Clamp
position
(coordinate
values
in
the
machine
coordinate
system)
1
)
Place
the
DOOR
INTERLOCK
key-switch
in
the
NORMAL
position.
2)
Close
the
front
door.
DOOR
INTERLOCK
NORMAL
RELEASE
w
3)
Make
the
on-site
adjustment
mode
valid.
0
Make
sure
that the
STATUS
indicator
[
MRDY
]
is
lit.
STATUS
O
ERR
•
MRDY
O
M00/M01
O
TRCL
O
M02/M30
OX-!
4-
O
CHCL
O
Z
-J
