Motorola ASTRO Series User Manual

Chapter 1
Introduction
This manual covers the installation procedures for ASTRO mobile and motorcycle radios with O2, O3,
O5, E5, O7, and O9 control heads and accessories required to complete the radio system.
The radio system consists of a control head, radio, antenna, microphone, speaker, cabling, Universal
Relay Controller (URC), and accessories.
1.1
Mobile Radio Description
This chapter covers the basic dimension of the mobile radio.
1.1.1
Dimensions
When installing the radio, make sure to plan the installation carefully and leave extra room in the rear
of the radio for cabling and accessory connections. Leave extra space in the front of the radio for
access, controls, and cabling (if remote mount) and to the sides of the radio so that you can access
and install the trunnion screws/wing screws.
NOTICE: The rear accessory connector adds 0.75 in. to the overall length. The remote mount
length is 244 mm.

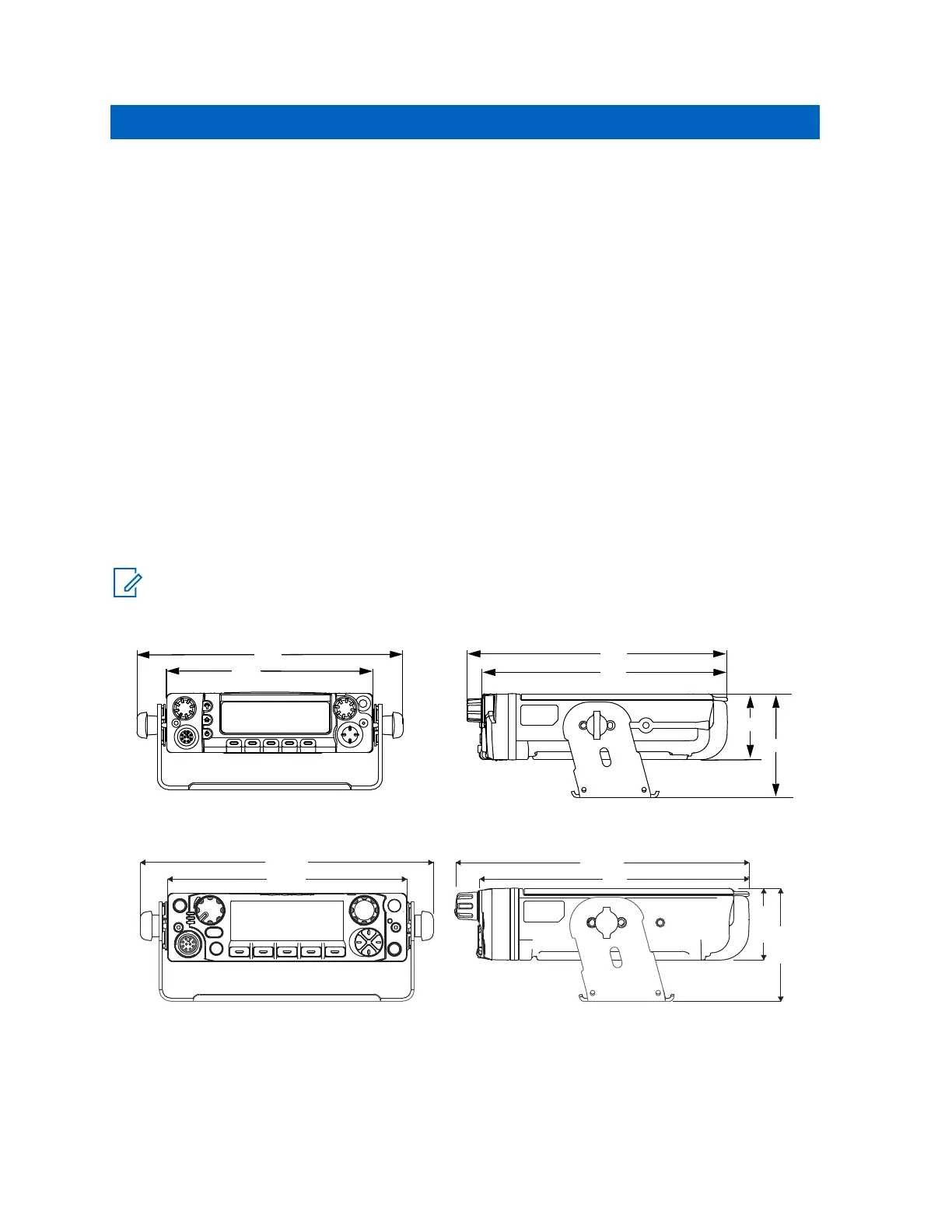

Figure 1: Front and Side View of O5 Control Head with Dash Mount Transceiver and Trunnion
224
180
200
187
51
80
Figure 2: Front and Side View of E5 Control Head with Dash Mount Transceiver and Trunnion
218
178
208
51
80
191
MN005720A01-AB
Chapter 1: Introduction
20
