Rear Panel
ON/OFF button and POWER jack
Press the power button in until it clicks for ON. Connect the
supplied power adapter between the power jack and an
electrical outlet.
WAN/LAN and LAN ports
On this MH7020 Router, the WAN/LAN port is a WAN port. Use
this port to connect your Router to your modem’s LAN port. If
you later add a Satellite unit to your network, the WAN/LAN
port on the Satellite is a LAN port. You can connect a computer,
smart TV/media player, game station, or other Ethernet-capable
device to any LAN port.
WPS button
Most users will not use the WPS button. It is not needed to set
up your WiFi.
RESET button
The reset button is located on the bottom of the unit. If you
need to reset your unit, press this button using a small object
such as a paperclip for 10 seconds.

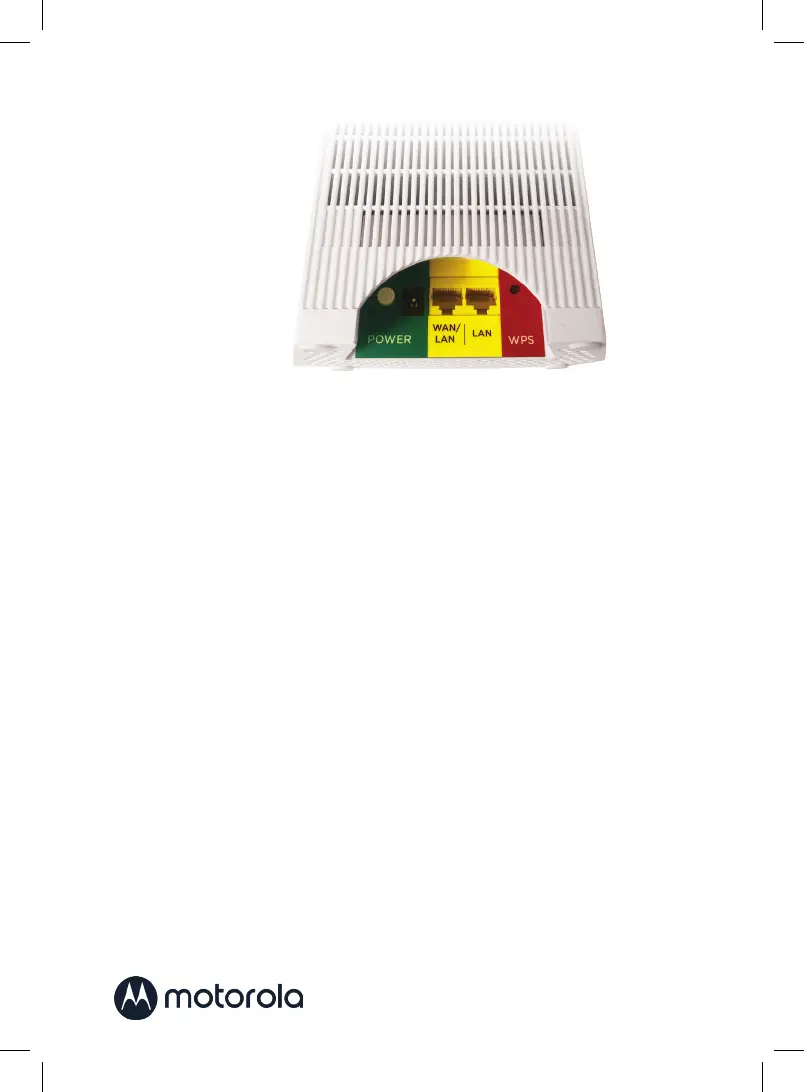

Back
of MH7020
