CSD Series Variable Frequency AC Drive
MOTORTRONICS
- 13 -

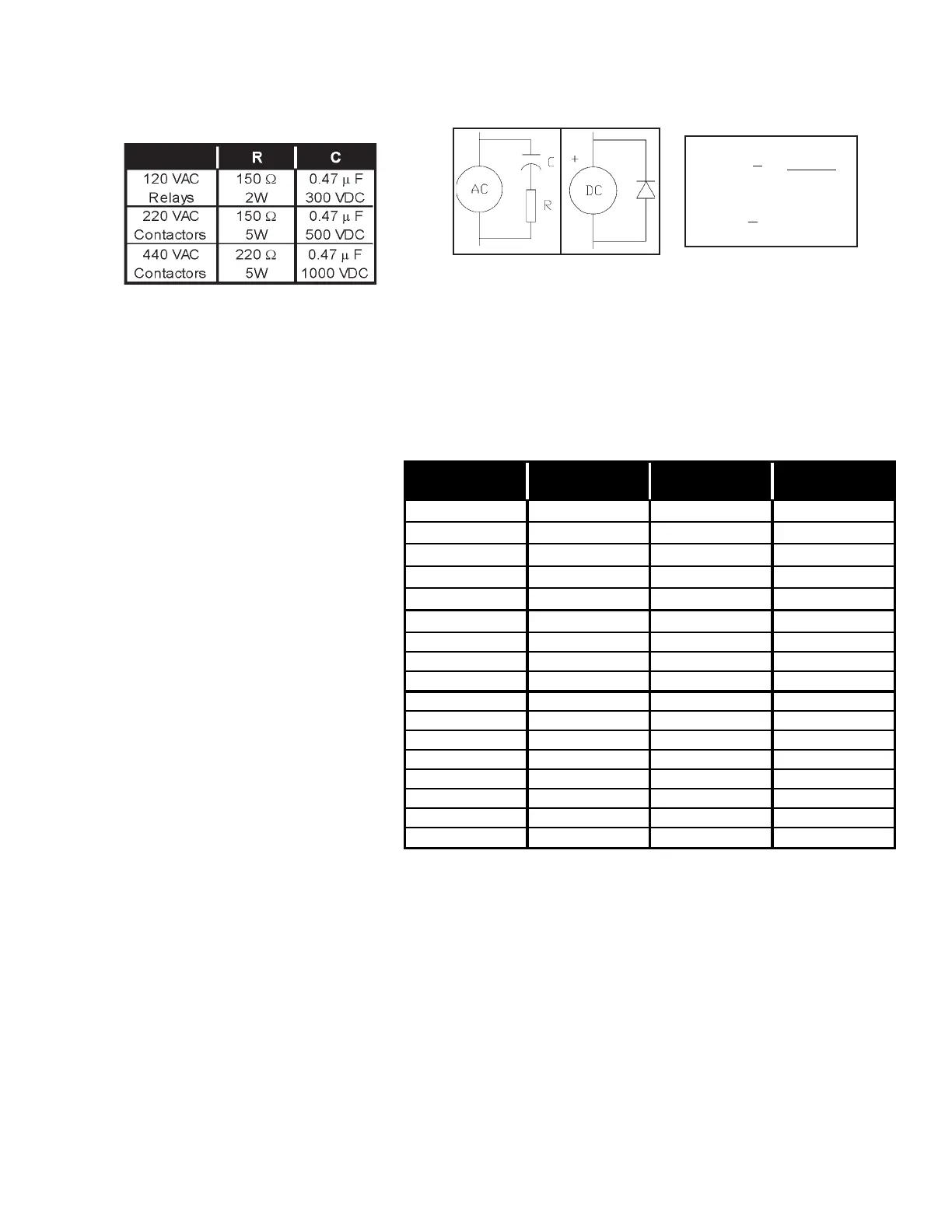

Diode Ratings
AC Coils DC Coils
*
*Current >
Voltage > 2 X Coil
Coil VA
Coil Voltage
DC Snubber
Figure 3 - 4
Typical Components
AC Snubber Ratings
Table 3 C
3.6 Line Reactors
• Source KVA must be limited to less than 500 KVA to protect against
premature rectifier assembly failure. If source KVA exceeds 500 KVA,
installation of appropriate reactor is required. If multiple drives are used,
installation of individual reactors is not required (one reactor capable
of combined amperage is acceptable).
Table 3 D - Suggested Line Reactor Values
Model Number Part Number Current (Amps)
Inductance
mH
CSD-2P5, 201 10-RL-00402 4 6
CSD -202 10-RL-00802 8 3
CSD-203 10-RL-01202 12 2.5
CSD-205 10-RL-01802 18 1.5
CSD-207 10-RL-02502 25 1.2
CSD-210 10-RL-03502 35 0.8
CSD-215 10-RL-04502 45 0.7
CSD-220 10-RL-05502 55 0.5
CSD-230 10-RL-08002 80 0.4
CSD-401 10-RL-00202 2 20
CSD-402, 403 10-RL-00403 4 9
CSD-405 10-RL-00803 8 5
CSD-407 10-RL-01203 12 4.2
CSD-410 10-RL-01803 18 2.5
CSD-415 10-RL-02503 25 2.0
CSD-420 10-RL-03503 35 1.2
CSD-430 10-RL-04503 45 1.2
