motortronics CSD Series User Manual

CSD Series Variable Frequency AC Drive
MOTORTRONICS
- 21 -
Program Fn11 to 0002
JP1
JP2
1
2
3
12
13
14
FM-
15
FM+
+
-
TM2
+
-
Program Fn11 to 0002
JP1
JP2
1
2
3
12
13
14
FM-
15
FM+
+
-
TM2
+
-

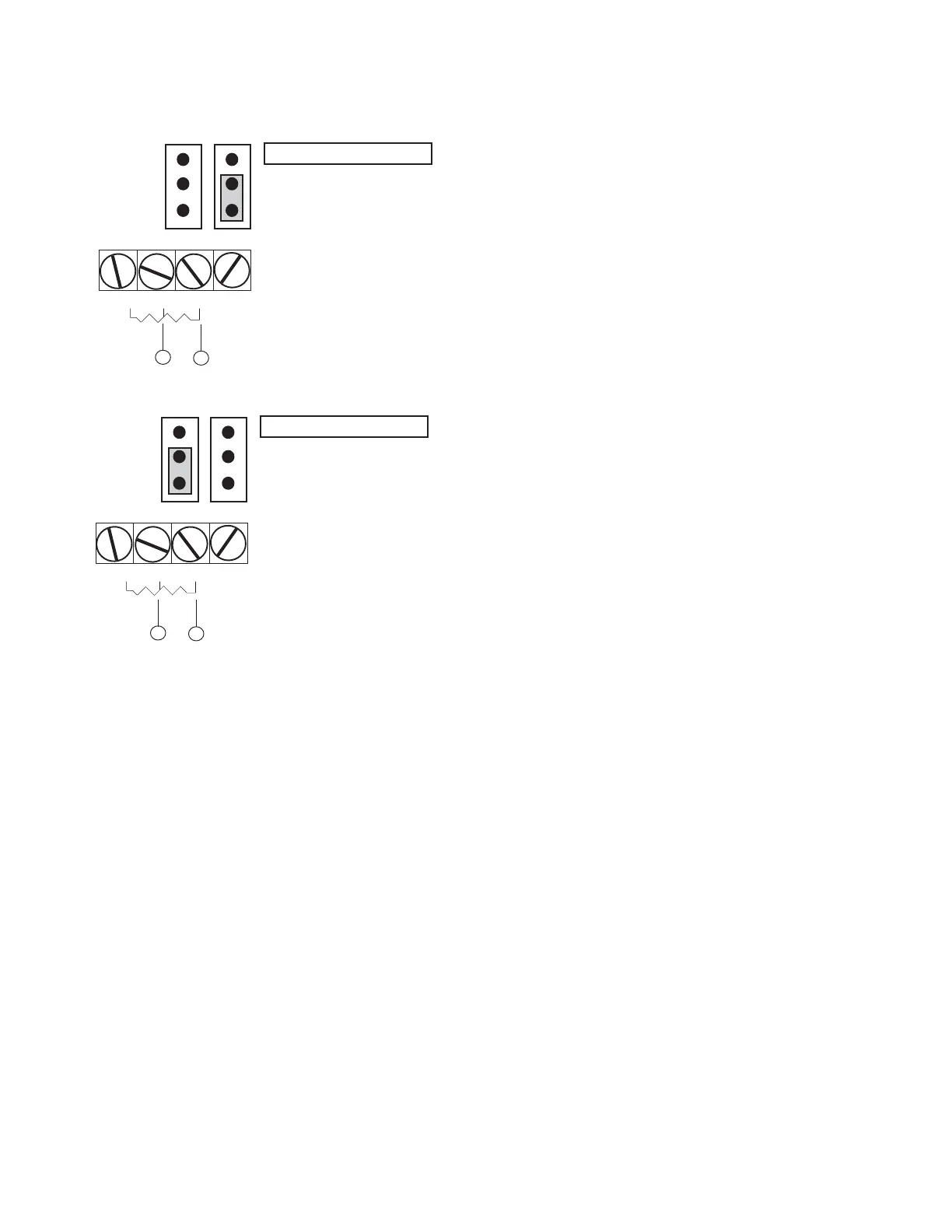

4.2.3 Remote 0-10VDC Analog Control Signal
This allows motor speed control from a remote analog 10VDC signal
connected as shown.
Connect the positive lead of the control signal to TM2-13 and the
negative lead of the control signal to TM2-14. Place shorting jumper
on pins 2 and 3 of JP2 (as indicated by the gray area).
4.2.4 Remote 4-20mA Analog Control Signal
This allows motor speed control from a remote analog 20mA signal
connected as shown.
Connect the positive lead of the control signal to TM2-13 and the
negative lead of the control signal to TM2-14. Place shorting jumper
on pins 2 and 3 of JP1 (as indicated by the gray area).
