MS-6728 ATX Mainboard
1 Optical SPDIF jack
2 Coaxial SPDIF jack
3 Line Out
4 Line Out
Description:
Select the correct type of SPDIF jack to connect
SPDIF speakers. For optical connection,
remove the plug from the S-Bracket before
inserting the fiber-optic cable to it.
Digital Audio Output (2-Channel only)
For digital audio output, use the SPDIF (Sony & Philips Digital Interface)
connectors supplied by S-Bracket. First, connect the SPDIF speakers to the
appropriate SPDIF jack, and then select the audio channel you desire through
the control panel of speakers. The SPDIF connectors support 2-channel audio
operation only.
S-Bracket offers two types of SPDIF jacks: one for fiber-optic cable and
the other for coaxial cable. Select the connector according to the type of your
SPDIF speakers.

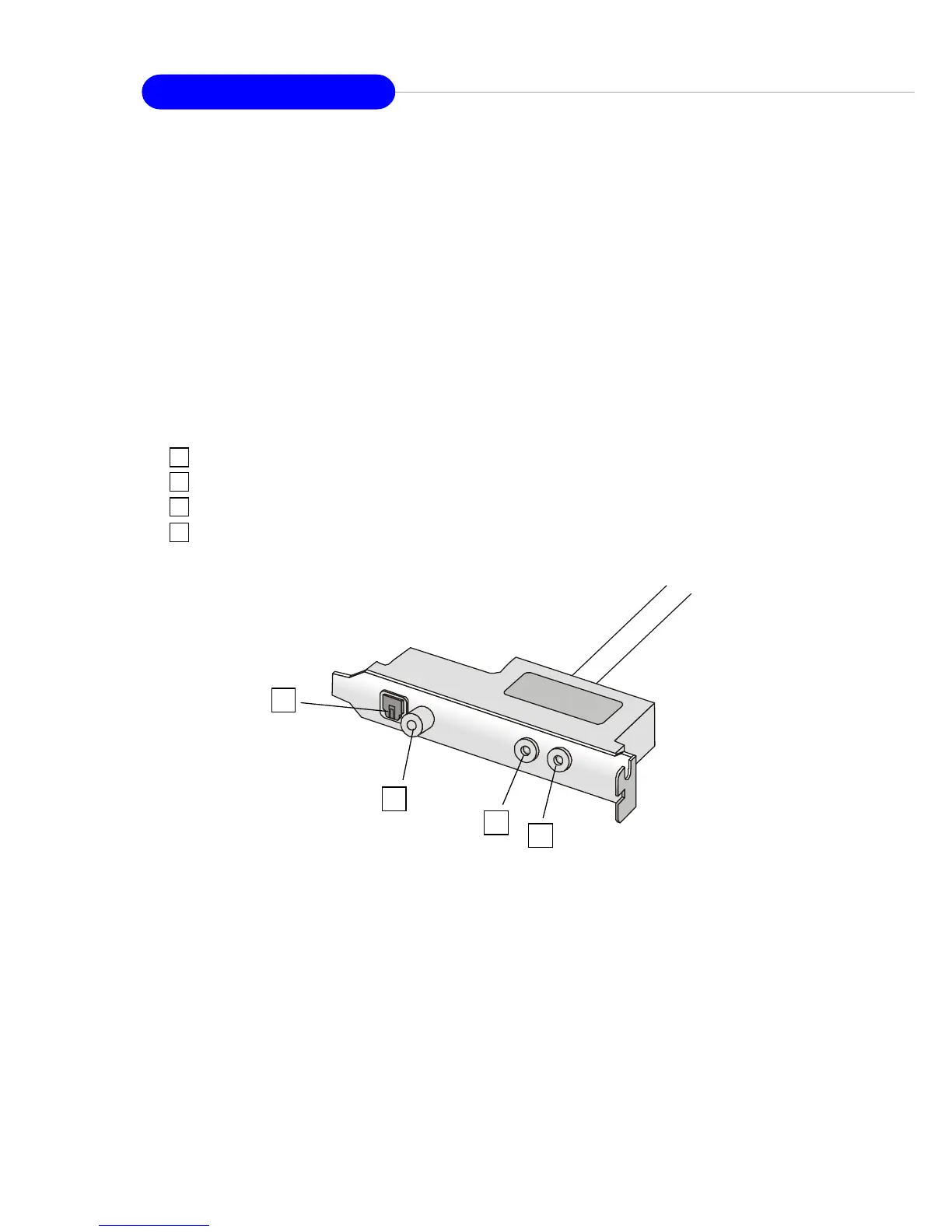

S-Bracket
1
2
3
4
