2-21
Hardware Setup
MSI Reminds You...
Please do not fold the serial ATA cable in a 90-degree angle,
which will cause the loss of data during the transmission.
PIN SIGNAL PIN SIGNAL
1 GND 2 TXP
3 TXN 4 GND
5 RXN 6 RXP
7 GND

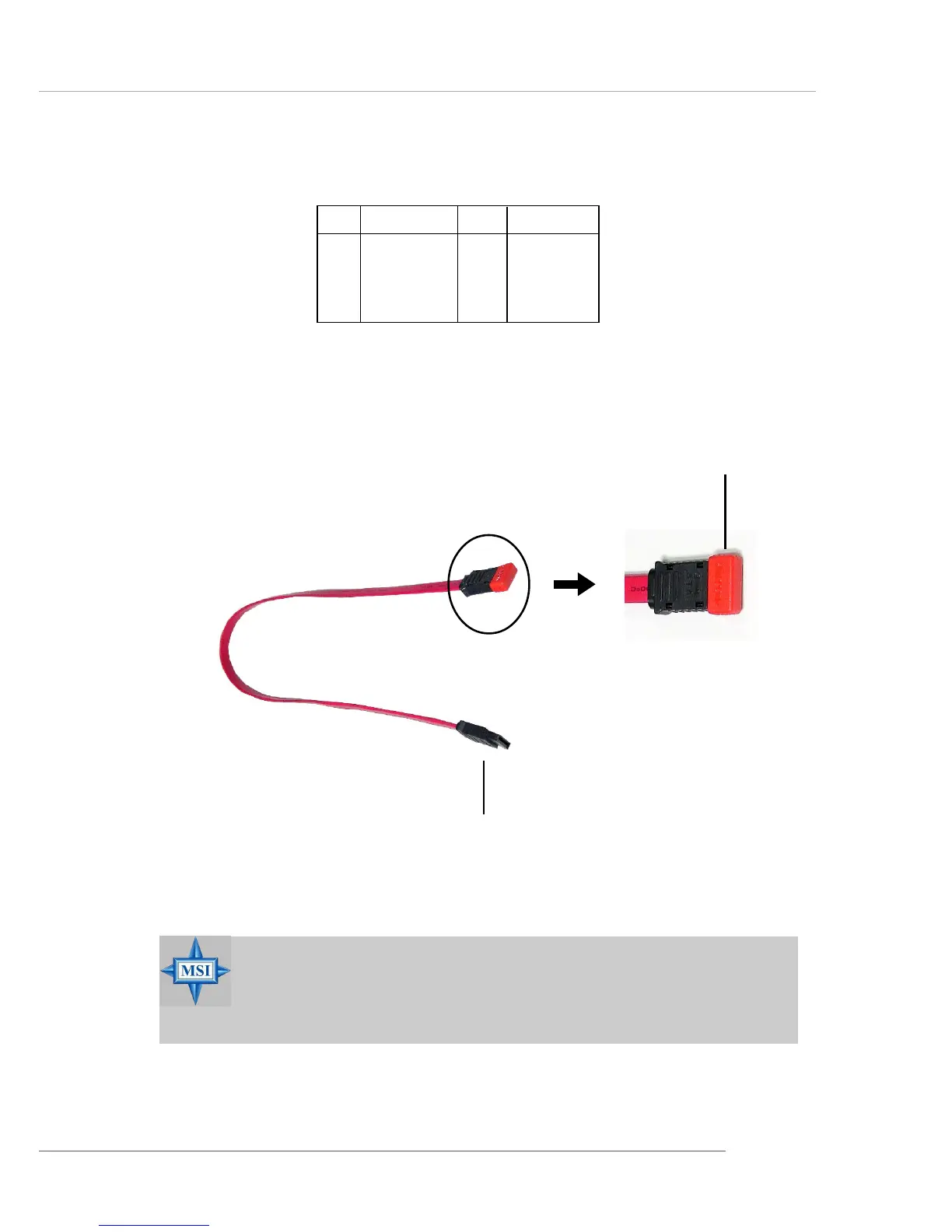

SATA1~ SATA4 Pin Definition
Connect to serial ATA ports
Take out the dust cover and
connect to the hard disk
devices
Optional Serial ATA cable
