MSI-9300 Crane Scale™ • User Guide Page 33
MEASUREMENT SYSTEMS INTERNATIONAL
Rev 1 7/27/02 for SW Ver 1-1

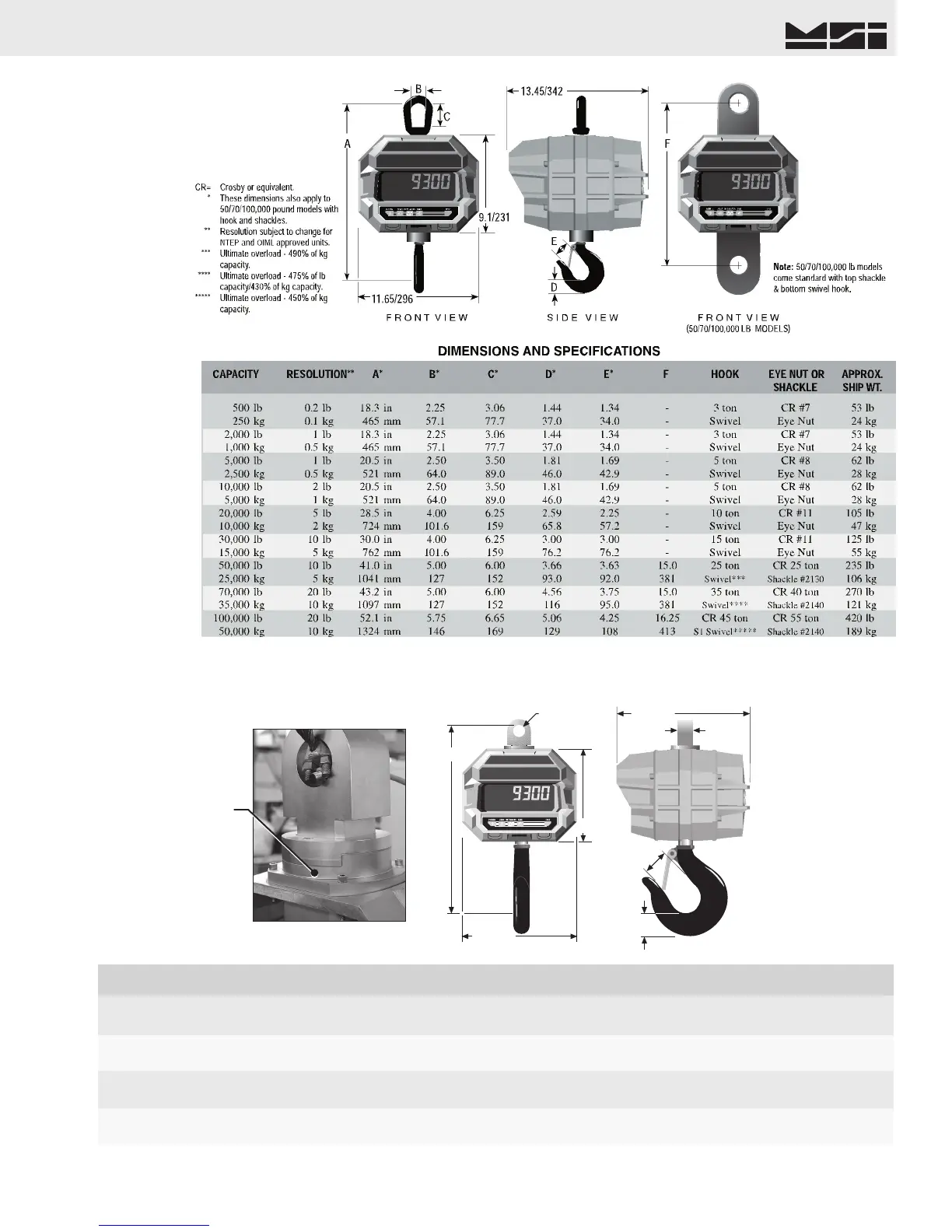

DIMENSIONS AND LOAD TRAIN SPECIFICATIONS, STANDARD MSI-9300
CONSULT FACTORY FOR HIGHER CAPACITIES
MAXIMUM FIXED SHIPPING OPTIONAL
CAPACITY RESOLUTION* TORQUE A B C D E HOOK WEIGHT TOP SHACKLE
5,000 lb 1 lb 150 ft/lb 19.7 in 1.28 in 1.81 in 1.69 in 1.75 in 7 ton 62 lb 9-1/2 ton
2,500 kg 0.5 kg 203 Nm 500.0 mm 33.0 mm 46.0 mm 42.9 mm 44.5 mm alloy 28 kg
10,000 lb 2 lb 150 ft/lb 19.7 in 1.28 in 1.81 in 1.69 in 1.75 in 7 ton 62 lb 9-1/2 ton
5,000 kg 1 kg 203 Nm 500.0 mm 33.0 mm 46.0 mm 42.9 mm 44.5 mm alloy 28 kg
30,000 lb 10 lb 560 ft/lb 21.2 in 1.69 in 3.00 in 3.19 in 2.25 in 22 ton 135 lb 17 ton
15,000 kg 5 kg 759 Nm 538.0 mm 43.0 mm 76.2 mm 81.0 mm 57.2 mm alloy 61 kg
70,000 lb 20 lb 1500 ft/lb 28.2 in 2.06 in 4.56 in 3.75 in 2.75 in 37 ton 290 lb 40 ton
35,000 kg 10 kg 2033 Nm 716.0 mm 52.0 mm 116.0 mm 95.0 mm 69.9 mm alloy 132 kg
Note: Standard hook
orientation shown. Please
specify if alternate orientation
is required.
11.65/296
A
9.1/231
B (DIA.)
New top interface specifically
designed to easily accomodate
optional low headroom adapter
13.45/342
D
C
E
DIMENSIONS AND LOAD TRAIN SPECIFICATIONS, MSI-9300HT
