Overview of Components

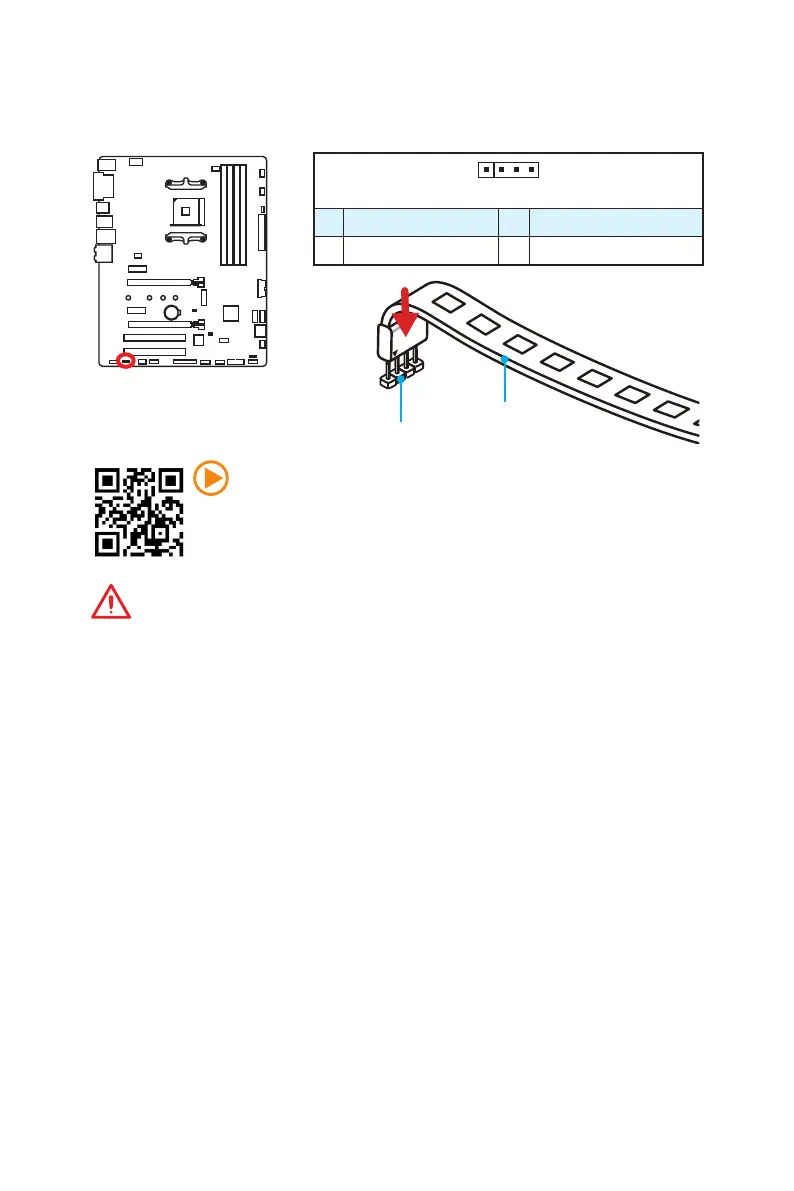

JLED1: RGB LED strip connector
This connector allows you to connect the extended 5050 RGB LED strips.
Important
y This connector supports 5050 RGB multi-color LED strips (12V/G/R/B) with the
maximum power rating of 3A (12V). Please keeping the LED strip shorter than 2
meters to prevent dimming.
y Always turn off the power supply and unplug the power cord from the power outlet
before installing or removing the RGB LED strip.
y Please use MYSTIC LIGHT to control the extended LED strip.
1
1 +12V 2 G
3 R 4 B
Video Demonstration
Watch the video to learn how to install 5050 RGB LED strips to RGB LED
connector.
https://youtu.be/CqNHyADzd2Q
1
JLED1
5050 LED strip

MSI B350 PC MATE Specifications

General

Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR4-SDRAM
Maximum internal memory	64 GB
Supported memory clock speeds	1866, 2133, 2400, 2667, 2933, 3200 MHz
Supported memory module capacities	4GB, 8GB, 16GB
Processor socket	Socket AM4
Processor manufacturer	AMD
Compatible processor series	AMD A, AMD Athlon, AMD Athlon X4, AMD Ryzen 3, AMD Ryzen 3 2nd Gen, AMD Ryzen 5, AMD Ryzen 5 2nd Gen, AMD Ryzen 7, AMD Ryzen 7 2nd Gen
CPU fan connector	Yes
USB 2.0 connectors	2
Serial port headers	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
Wi-Fi	No
LAN controller	Realtek RTL8111H
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
Component for	PC
Motherboard chipset	AMD B350
Audio output channels	7.1 channels
Motherboard form factor	ATX
RAID levels	0, 1, 10
Supported storage drive types	HDD & SSD
Parallel processing technology support	2-Way CrossFireX
BIOS type	UEFI

Weight and Dimensions

Depth	304 mm
Width	243 mm
