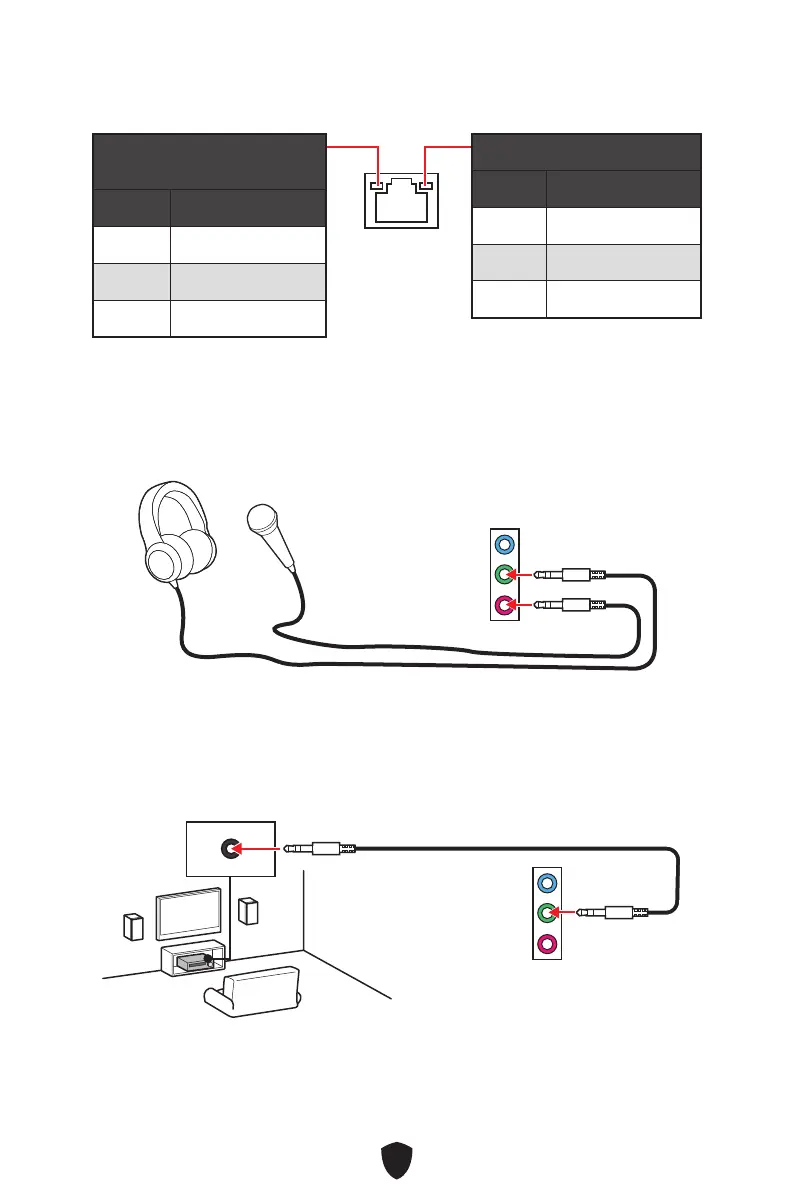

Tableau d’état LED du port LAN
LED indiquant la connexion et
l’activité
État Description
Éteint Pas de connexion
Jaune Connexion correcte
Clignote Activité en cours
LED indiquant la vitesse
État Vitesse
Éteint 10 Mb/s
Vert 100/1000 Mb/s
Orange 2,5 Gb/s
Connexion des prises audio
Schéma de connexion des prises audio au casque et au microphone
Schéma de connexion de la prise audio au haut-parleur stéréo
