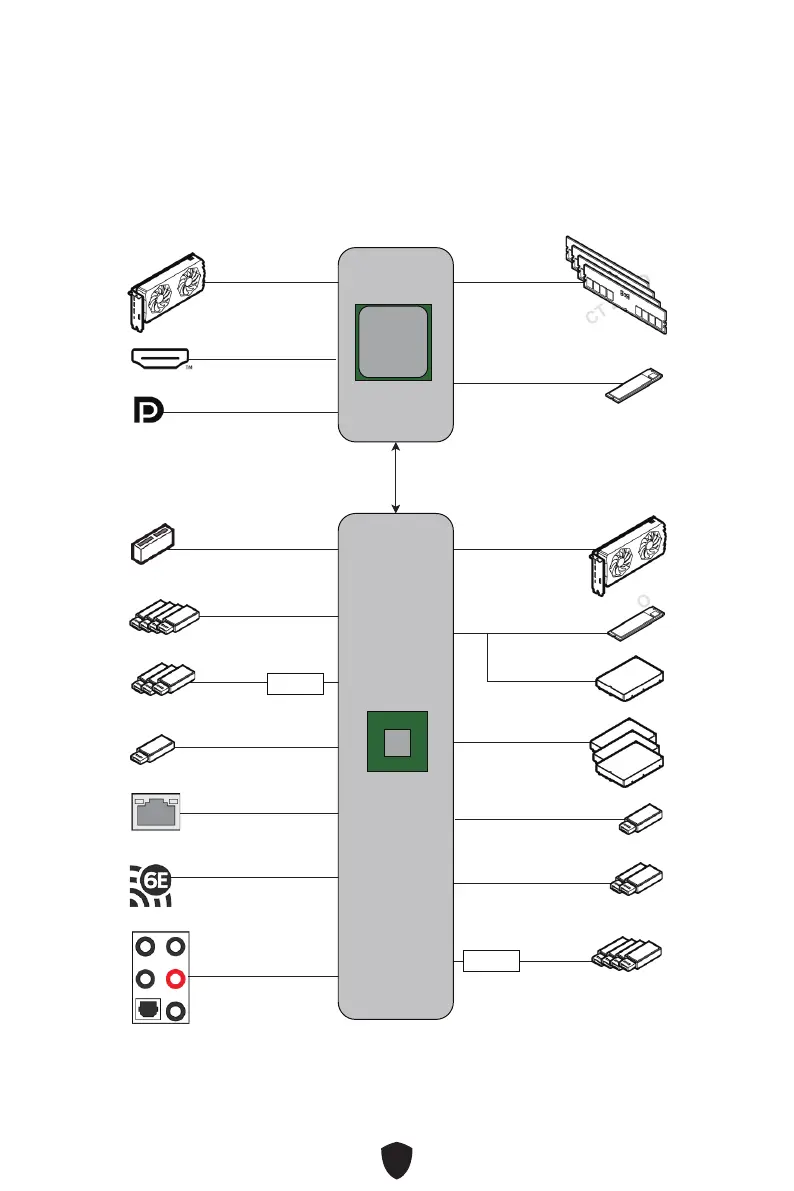

Block Diagram
MSI
B760M PROJECT ZERO
MSI
B760M PROJECT ZERO
MSI
B760M PROJECT ZERO
MSI
B760M PROJECT ZERO
MSI
B760M PROJECT ZERO
MSI
B760M PROJECT ZERO
MSI
B760M PROJECT ZERO
MSI
B760M PROJECT ZERO
MSI
B760M PROJECT ZERO
MSI
B760M PROJECT ZERO
MSI
B760M PROJECT ZERO
MSI
B760MPROJECT ZERO
B760M PROJECT ZERO
DDR5
DIMM A1/A2
DIMM B1/B2
USB3.2 Gen2 10Gbps
(Front Type-C)
USB3.2 Gen2x2 20Gbps
(Type-C)
Realtek 8125BG
2.5Gbps LAN
SATA_5_6_7
PCH
HD Audio
ALC897
CPU
PCIE x4
PCI_E1
PCIe 5.0 x16
M.2_1
GEN4 x 4 (Pcie Only)
GEN4 x4 M.2_2
(PCIe + SATA)
USB3.2 Gen1 5Gbps
(Front Type-A)
GL3590
USB3.2 Gen2 10Gbps
(Type-A)
USB 2.0 480Mbps
(Type-A)
GL850
USB2.0 480Mbps
(Front Type-A)
HDMI 2.1
(4K@60Hz)
DP 1.4
(4K@60Hz)
PCI_E2
PCIe x1
PCI_E3
PCIe 4.0 x4
Intel AX211
WiFi 6E
SATA_8

MSI B760M PROJECT ZERO Specifications

General

Brand	MSI
Model	B760M PROJECT ZERO
Category	Motherboard
Language	English
