1-3
System Overview

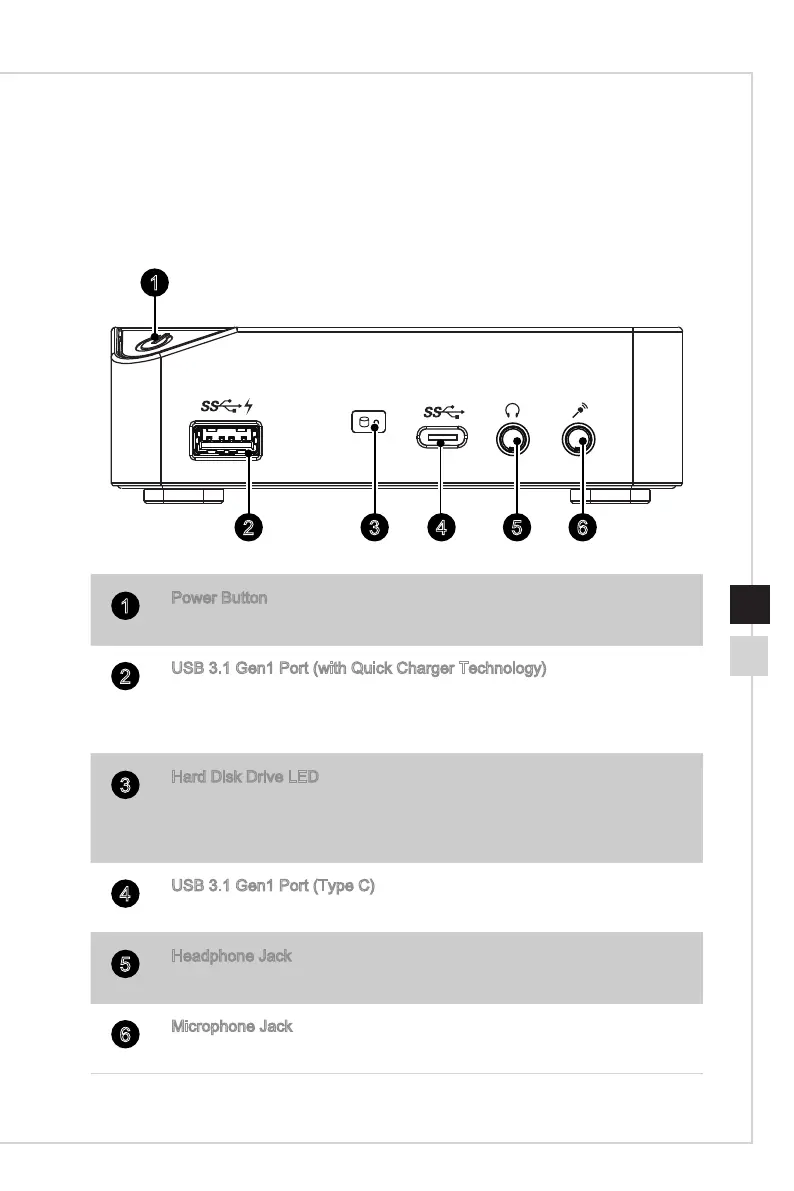

h Front View
5 6432
1
1
Power Button
Press the power button to turn the system on and o.
2
USB 3�1 Gen1 Port (with Quick Charger Technology)
With Quick Charger Technology, not only does it function as normal USB
3�1 Gen1 port, but it also enables users to charge USB devices even
when the system is turned o.
3
Hard Disk Drive LED
This indicator shows the activity status of the HDD. It ashes when the
system is accessing data on the HDD and remains o when no disk
activity is detected�
4
USB 3�1 Gen1 Port (Type C)
USB Type C port is allowing for reversible plug orientation�
5
Headphone Jack
This connector is provided for headphones or speakers�
6
Microphone Jack
This connector is provided for microphones�
