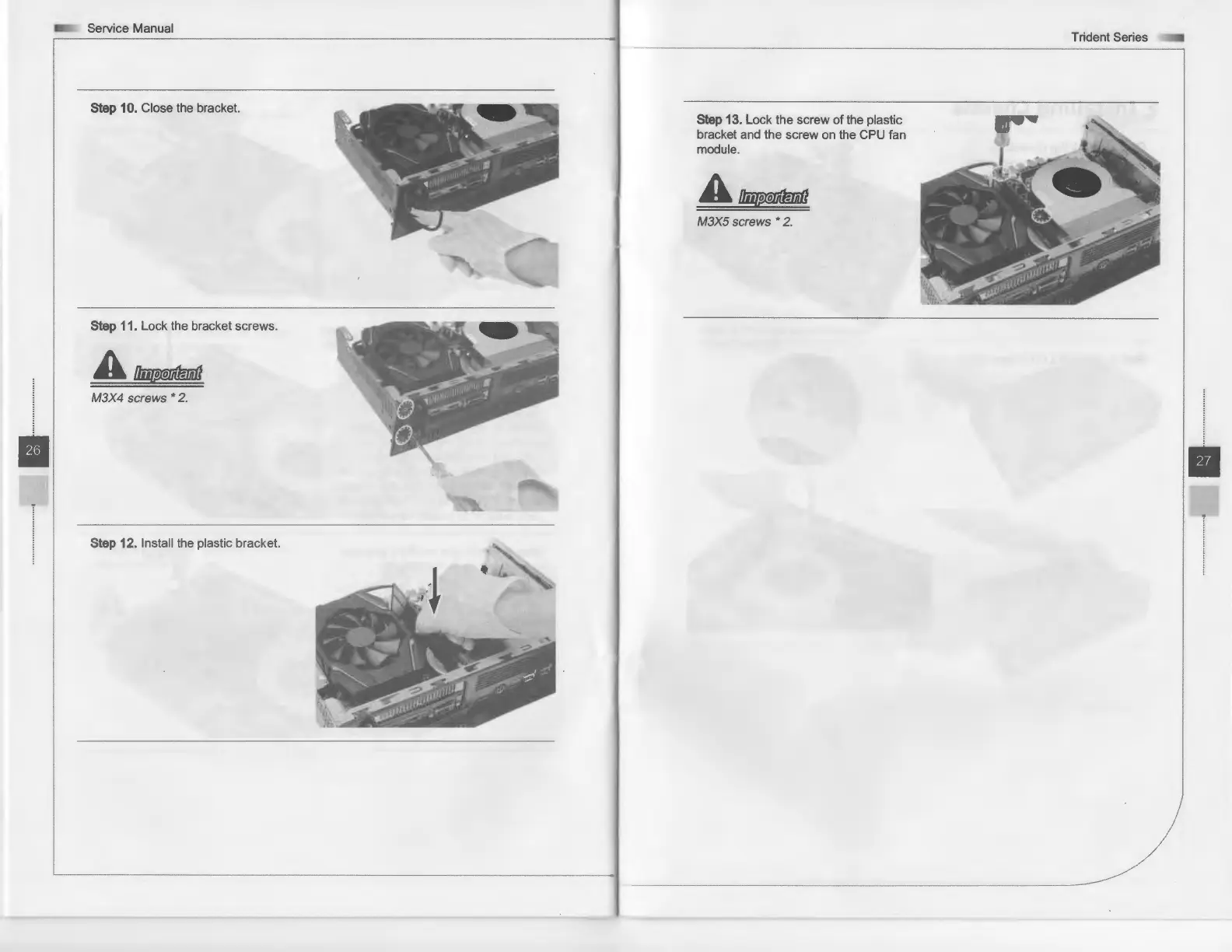

Service Manual
Step
10. Close the bracket.
Step
11. Lock the bracket screws.
A~
M3X4 screws * 2 .
•
Step
12.
Install the plastic bracket.
~'
a
l.
/~,
Step
13.
Lock the screw
of
the plastic
bracket and the screw on the CPU fan
module.
A~
M3X5 screws * 2.
Trident Series
•
