MSI H110M PRO-VD User Manual

12
󸋺󹵲
󺗂󸠃󺠎
󺃊󺠺󸩻󺪆󹋒󹨂󹿿󺺮󹽂󺅚󹏊󺱾󸩦󺂮󺵂󺰎󹋒󹽆󸘆󺺶󹭮󺃞󹰋󸰞󸰺
1
10 11
20

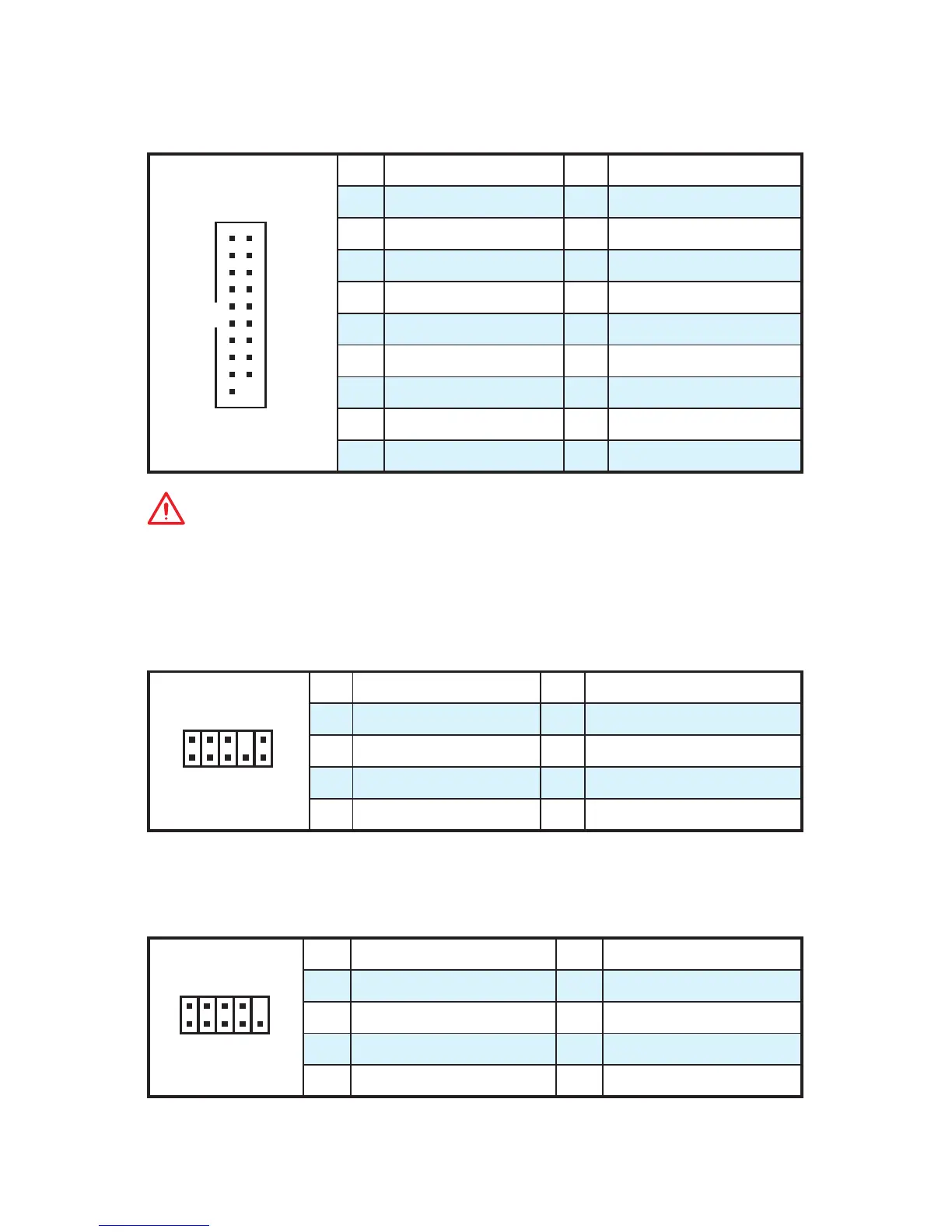

1 Power 11 USB2.0+
2 USB3_RX_DN 12 USB2.0-
3 USB3_RX_DP 13 Ground
4 Ground 14 USB3_TX_C_DP
5 USB3_TX_C_DN 15 USB3_TX_C_DN
6 USB3_TX_C_DP 16 Ground
7 Ground 17 USB3_RX_DP
8 USB2.0- 18 USB3_RX_DN
9 USB2.0+ 19 Power
10 Ground 20 No Pin
󹿯󹵲󹞊󺱋
󺅚󺀦󹕥󸝎󹃒󺀊󸸲󺺖󺂚󺅫󺾫󻃞󹽆󸘆󺺮󹽂󹻒󹫦󹨗󺂚󹕿󺌖󺺶󹭮󺃞󹰋󸰞󸰺
󹻢󹅒󹴂󸯲󹴂󺗂󸠃󺠎
󺃊󺠺󸩻󺪆󹋒󹨂󹿿󺺮󹽂󺅚󹏊󺱾󸩦󺂮󹽺󸹪󹽺󺄃󺂚󹽆󸘆󺺶󹭮󺃞󹰋󸰞󸰺
1
2 10
9
1 MIC L 2 Ground
3 MIC R 4 NC
5 Head Phone R 6 MIC Detection
7 SENSE_SEND 8 No Pin
9 Head Phone L 10 Head Phone Detection
󹦺󹂊󹲚󺫊󺦖󺗂󸠃󺠎
󺃊󺠺󸩻󺪆󹼦󹝢󹃮󺨍󺂚󹨂󹿿󺺮󹽂󹾋󹪮󺃎󹰲󹌂󹼒󺵂󺰎󹋒󹽆󸘆󺺶󹭮󺃞󹰋󸰞󸰺
1
2 10
9
1 DCD 2 SIN
3 SOUT 4 DTR
5 Ground 6 DSR
7 RTS 8 CTS
9 RI 10 No Pin

MSI H110M PRO-VD Specifications

General

Form Factor	Micro ATX
Chipset	Intel H110
CPU Socket	LGA 1151
Memory Slots	2 x DIMM
Maximum Memory	32 GB
Expansion Slots	1 x PCIe 3.0 x16, 2 x PCIe 2.0 x1
Storage Interface	4 x SATA 6Gb/s
Memory Speed	2133 MHz
USB Ports	6 x USB 2.0
Audio	Realtek ALC887
LAN	Realtek RTL8111H Gigabit LAN
Video Outputs	1 x VGA
