MSI MAG B660M MORTAR MAX WIFI DDR4 User Manual

31

󱚋󱚋
󳲜󶬖

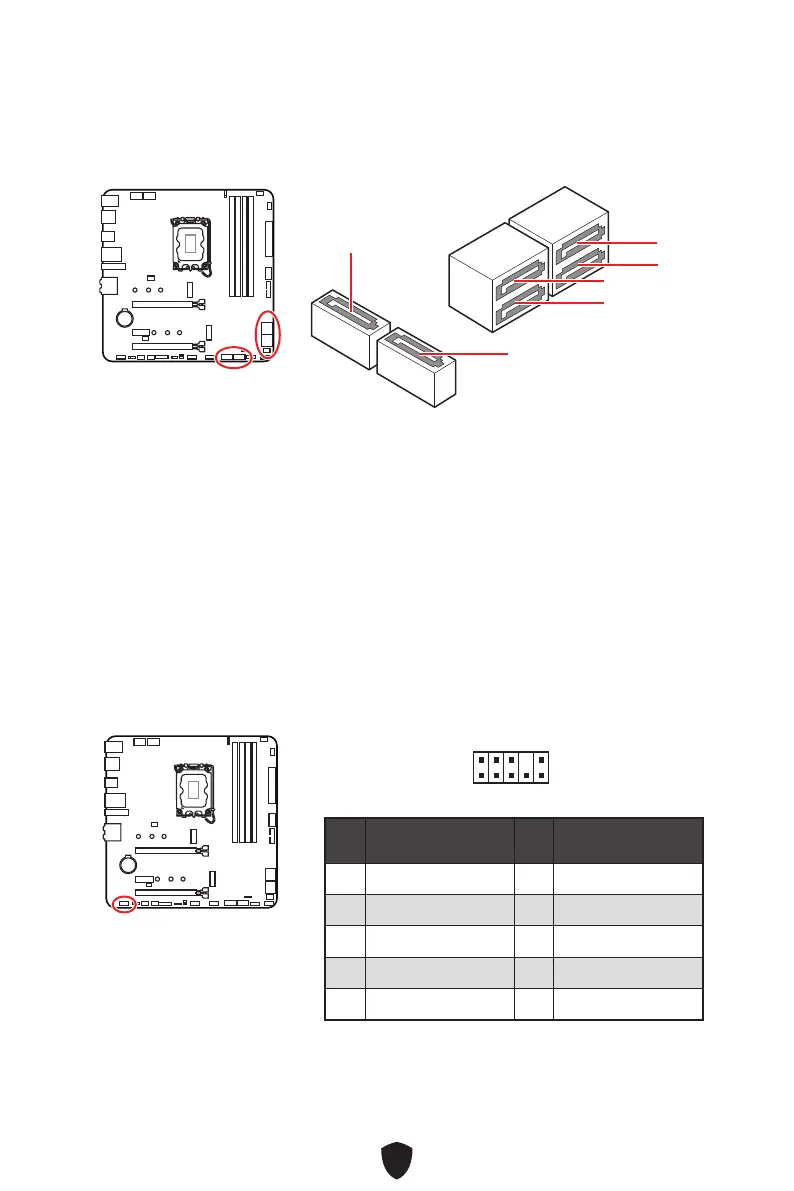

SATA_A1
SATA5
SATA7
SATA_A2
SATA6
SATA8

󴳇󳠴
 󳐁󱟧󱚘󸍐󳐁󳫷󴉠󳵊󲤃󸦓󳛮

 󱚹󶖑󲁾󱚋󱪶󵑏󶅚󱥦
󳲜󶬖󷮦 
 󲀮󱟔󲝉󲁹󵐤󱹐

󳲜󶬖
1
2 10
9
 󱥯󲁢󲁿


󱥯󲁢󲁿
1 MIC L 2 Ground
3 MIC R 4 NC
5 Head Phone R 6 MIC Detection
7 SENSE_SEND 8 No Pin
9 Head Phone L 10 Head Phone Detection

MSI MAG B660M MORTAR MAX WIFI DDR4 Specifications

General

Chipset	Intel B660
Form Factor	Micro-ATX
Memory Support	DDR4
Memory Slots	4
Maximum Memory Supported	128GB
Wi-Fi	Yes
Wi-Fi Standard	Wi-Fi 6E
Bluetooth	Yes
Socket	LGA 1700
PCIe x16 Slots	2
PCIe x1 Slots	1
M.2 Slots	2
SATA Ports	6
Audio	Realtek ALC897
LAN	2.5Gbps Ethernet
RGB Headers	2
Memory Speed	DDR4-4800 (OC)
