MSI MAG B760 TOMAHAWK WIFI User Manual

38

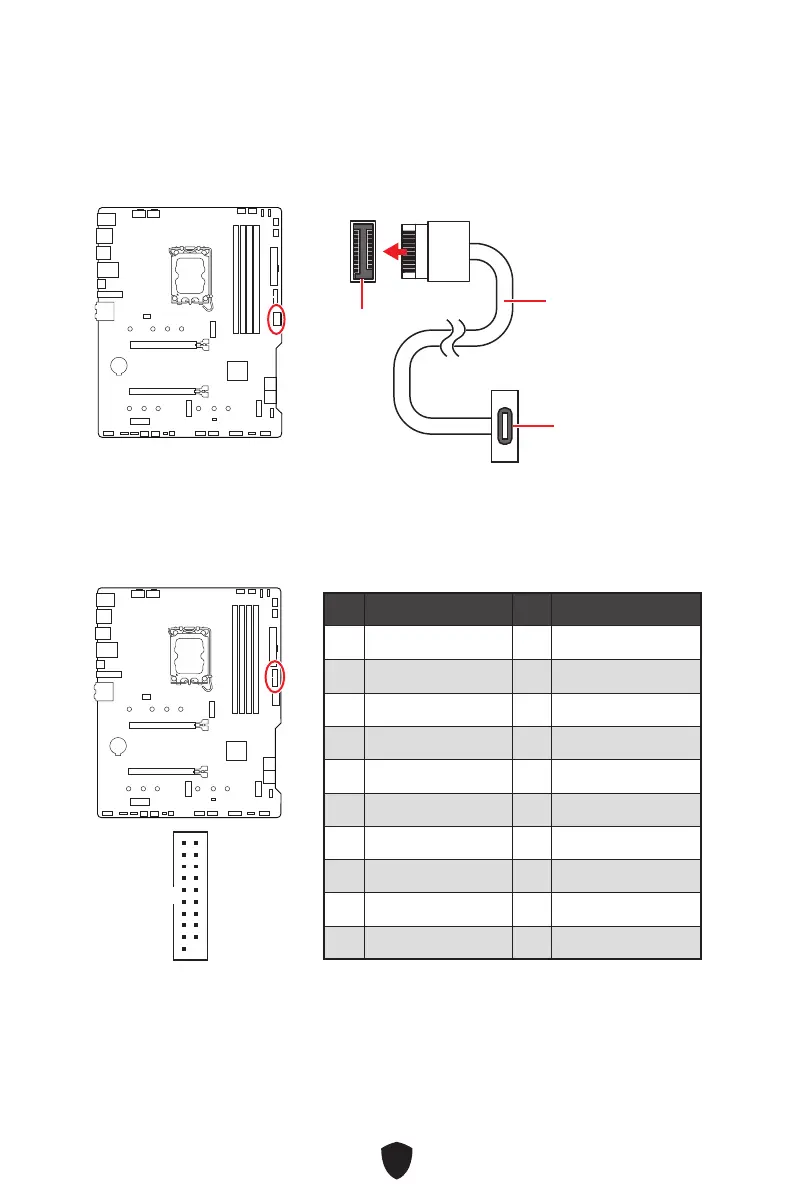

JUSB3: USB 3.2 Gen 1 Connector
This connector allows you to connect USB 3.2 Gen 1 5Gbps ports on the front panel.
⚠
Important
Note that the Power and Ground pins must be connected correctly to avoid possible
damage.
Pin Signal Name Pin Signal Name
1 Power 2 USB3_RX_DN
3 USB3_RX_DP 4 Ground
5 USB3_TX_C_DN 6 USB3_TX_C_DP
7 Ground 8 USB2.0-
9 USB2.0+ 10 Ground
11 USB2.0+ 12 USB2.0-
13 Ground 14 USB3_TX_C_DP
15 USB3_TX_C_DN 16 Ground
17 USB3_RX_DP 18 USB3_RX_DN
19 Power 20 No Pin
1
10 11
20
JUSB4: USB 3.2 Gen 2 Type-C Front Panel Connector
This connector allows you to connect USB 3.2 Gen 2 10Gbps Type-C connector on the
front panel. The connector has a foolproof design. When you connect the cable, be
sure to connect it with the corresponding orientation.
JUSB4
USB Type-C Cable
USB Type-C port on
the front panel

MSI MAG B760 TOMAHAWK WIFI Specifications

General

Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Pentium Gold
Supported processor sockets	LGA 1700
Maximum number of SMP processors	1
Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR5-SDRAM
Maximum internal memory	128 GB
Supported memory clock speeds	7000, 6800, 6600, 6400, 6200, 6000, 5800, 5600, 5400, 5200, 5000, 4800 MHz
Supported memory clock speed (max)	7000 MHz
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Bluetooth version	5.3
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Ethernet interface type	2.5 Gigabit Ethernet
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
DisplayPort version	1.4
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
VGA (D-Sub) ports quantity	0
RAID levels	0, 1, 5, 10
Supported storage drive interfaces	M.2, SATA III
BIOS type	UEFI AMI
ACPI version	6.4
BIOS memory size	256 Mbit
System Management BIOS (SMBIOS) version	3.5
Parallel processing technology support	-
Audio chip	Realtek ALC897
Component for	PC
Power source type	ATX
Audio output channels	7.1 channels
Windows operating systems supported	Windows 10, Windows 11

Weight and Dimensions

Depth	304.8 mm
Width	243.84 mm
