MSI MAG X570 TOMAHAWK WIFI User Manual

23

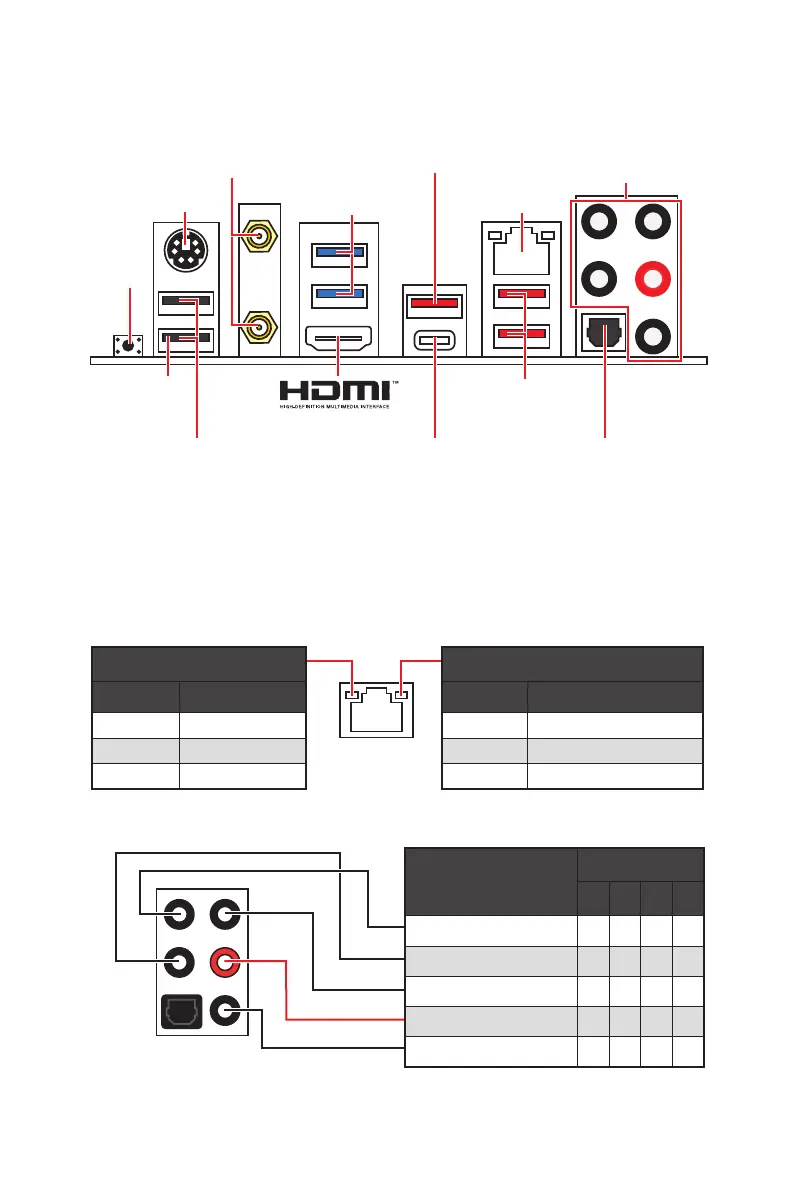

Rear I/O Panel
Rear I/O Panel
Link/ Activity LED
Status Description
Off No link
Yellow Linked
Blinking Data activity
Speed LED
Status Description
Off 10 Mbps connection
Green 100 Mbps/ 1 Gbps
Orange 2.5 Gbps connection
LAN Port LED Status Table
Audio Ports Configuration
Audio Ports
Channel
2 4 6 8
Center/ Subwoofer Out  
Rear Speaker Out   
Line-In/ Side Speaker Out 
Line-Out/ Front Speaker Out    
Mic In
(: connected, Blank: empty)
USB 3.2 Gen 2
10Gbps Type-C*
USB 3.2 Gen 2
10Gbps Type-A*
PS/2
2.5Gbps
LAN
USB 2.0 Type-A
Audio Ports
Optical S/PDIF-Out
Flash BIOS
Button
Flash BIOS
Port
USB 3.2 Gen 2
10Gbps Type-A
*USB 3.2 Gen 2 10Gbps (3rd Gen AMD Ryzen™) or USB 3.2 Gen 1 5Gbps (2nd Gen
AMD Ryzen™/Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with
Radeon™Graphics)
∙ Flash BIOS Port/ Button - Please refer to page 47 for Updating BIOS with Flash BIOS
Button.
Wi-Fi Antenna
connectors
USB 3.2 Gen 1
5Gbps Type-A

MSI MAG X570 TOMAHAWK WIFI Specifications

General

Processor manufacturer	AMD
Compatible processor series	AMD Ryzen 3 2nd Gen, AMD Ryzen 3 3rd Gen, AMD Ryzen 5 2nd Gen, AMD Ryzen 5 3rd Gen, AMD Ryzen 7 2nd Gen, AMD Ryzen 7 3rd Gen, AMD Ryzen 9 3rd Gen
Supported processor sockets	Socket AM4
Audio chip	Realtek ALC1200
Cooling type	Active
Component for	PC
Motherboard chipset	AMD X570
PC health monitoring	CPU, FAN, Temperature
Audio output channels	7.1 channels
Motherboard form factor	ATX
Windows operating systems supported	Windows 10 x64
Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR4-SDRAM
Maximum internal memory	128 GB
Supported memory clock speeds	1866, 2133, 2400, 2667, 2800, 2933, 3000, 3066, 3200, 3466, 3600, 3733, 3866, 4000, 4133, 4266, 4400, 4533, 4600 MHz
PCI Express x16 (Gen 4.x) slots	2
Number of SATA II connectors	0
Number of SATA III connectors	6
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
RAID levels	0, 1, 10
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
LAN controller	Realtek RTL8125B-CG
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Bluetooth version	5.0
Ethernet interface type	2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
HDMI version	1.4
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
DirectX version	12.0
Maximum graphics card memory	2048 MB
Parallel processing technology support	CrossFire
BIOS type	UEFI AMI
ACPI version	6.1
BIOS memory size	256 Mbit
System Management BIOS (SMBIOS) version	2.8
Cables included	SATA
Harmonized System (HS) code	84733020

Weight and Dimensions

Depth	305 mm
Width	244 mm
