MSI MAG Z590 TORPEDO User Manual

39
Overview of Components

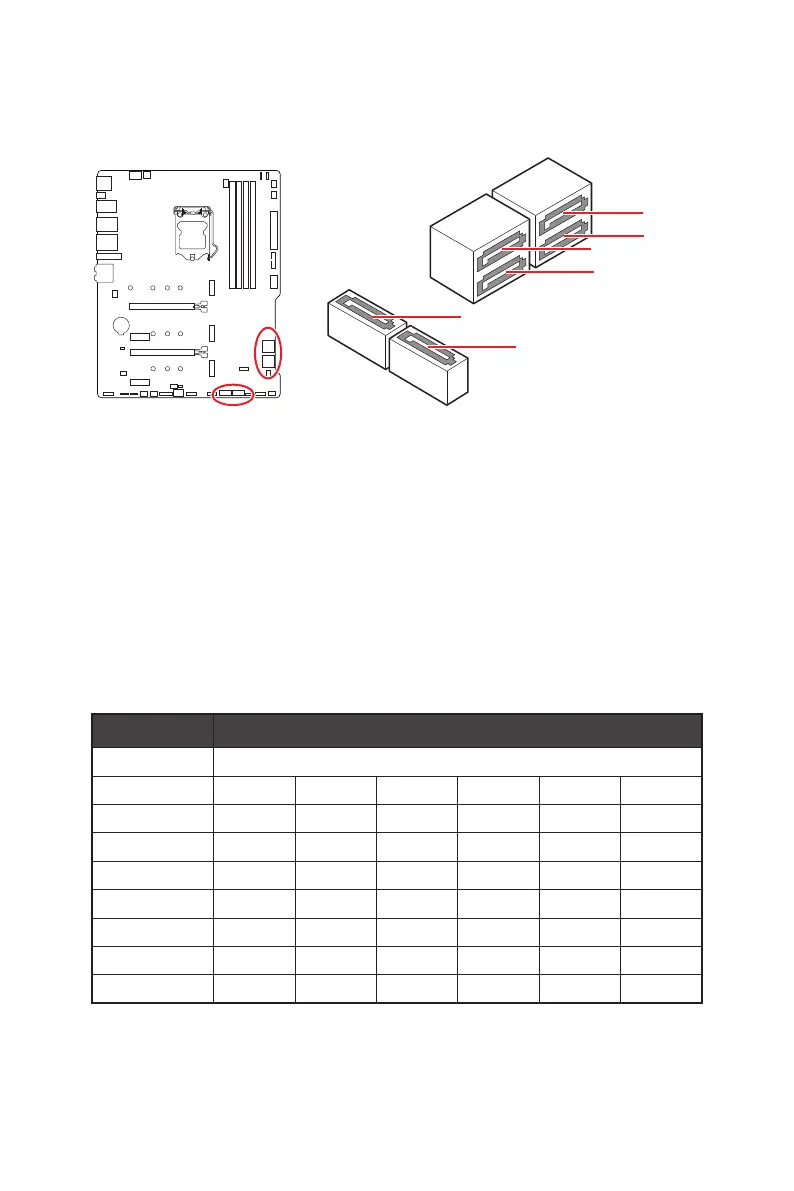

SATA1~6: SATA 6Gb/s Connectors
These connectors are SATA 6Gb/s interface ports. Each connector can connect to one
SATA device.
SATA1
SATA3
SATA5
SATA2
SATA4
SATA6
⚠
Important
∙ Please do not fold the SATA cable at a 90-degree angle. Data loss may result during
transmission otherwise.
∙ SATA cables have identical plugs on either sides of the cable. However, it is
recommended that the flat connector be connected to the motherboard for space
saving purposes.
∙ SATA2 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
∙ SATA5 & SATA6 will be unavailable when installing M.2 SATA/PCIe SSD in the M2_3
slot.
M.2 & SATA combination table
Slot Available SATA connectors
M2_1 PCIe (M2_1 slot is only available on 11th Gen Intel® CPU)
M2_2 PCIe SATA PCIe SATA PCIe SATA
M2_3 PCIe PCIe SATA SATA  
SATA1      
SATA2      
SATA3      
SATA4      
SATA5      
SATA6      
(SATA: M.2 SATA SSD, PCIe

MSI MAG Z590 TORPEDO Specifications

General

Processor socket	LGA 1200 (Socket H5)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Core i3, Intel Core i5, Intel Core i7, Intel Core i9, Intel Pentium G
Memory channels	Dual-channel
Memory slots type	DIMM
Unbuffered memory	Yes
Number of memory slots	4
Supported memory types	DDR4-SDRAM
Maximum internal memory	128 GB
Supported memory clock speeds	2133, 2666, 2933, 3200 MHz
RAID levels	0, 1, 5, 10
Supported storage drive types	HDD & SSD
Number of storage drives supported	9
Supported storage drive interfaces	M.2, SATA III
Maximum resolution	3840 x 2160 pixels
Parallel processing technology support	2-Way CrossFireX
USB 2.0 connectors	2
Number of SATA II connectors	0
Number of SATA III connectors	6
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
Number of M.2 (M) slots	3
BIOS type	UEFI AMI
ACPI version	6.2
BIOS memory size	256 Mbit
System Management BIOS (SMBIOS) version	3.0
USB connector type	USB Type-A, USB Type-C
DisplayPort version	1.4
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Wi-Fi	No
LAN controller	Intel I219-V, Intel I225-V
Ethernet interface type	2.5 Gigabit Ethernet, Gigabit Ethernet
Audio chip	Realtek ALC4080
Component for	PC
Motherboard chipset	Intel Z590
PC health monitoring	FAN, Temperature
Audio output channels	7.1 channels
Motherboard form factor	ATX
Windows operating systems supported	Windows 10 x64
Cables included	SATA
Harmonized System (HS) code	84733020
Weight	800 g

Weight and Dimensions

Depth	244 mm
Width	305 mm
Height	70 mm
