Overview of Components

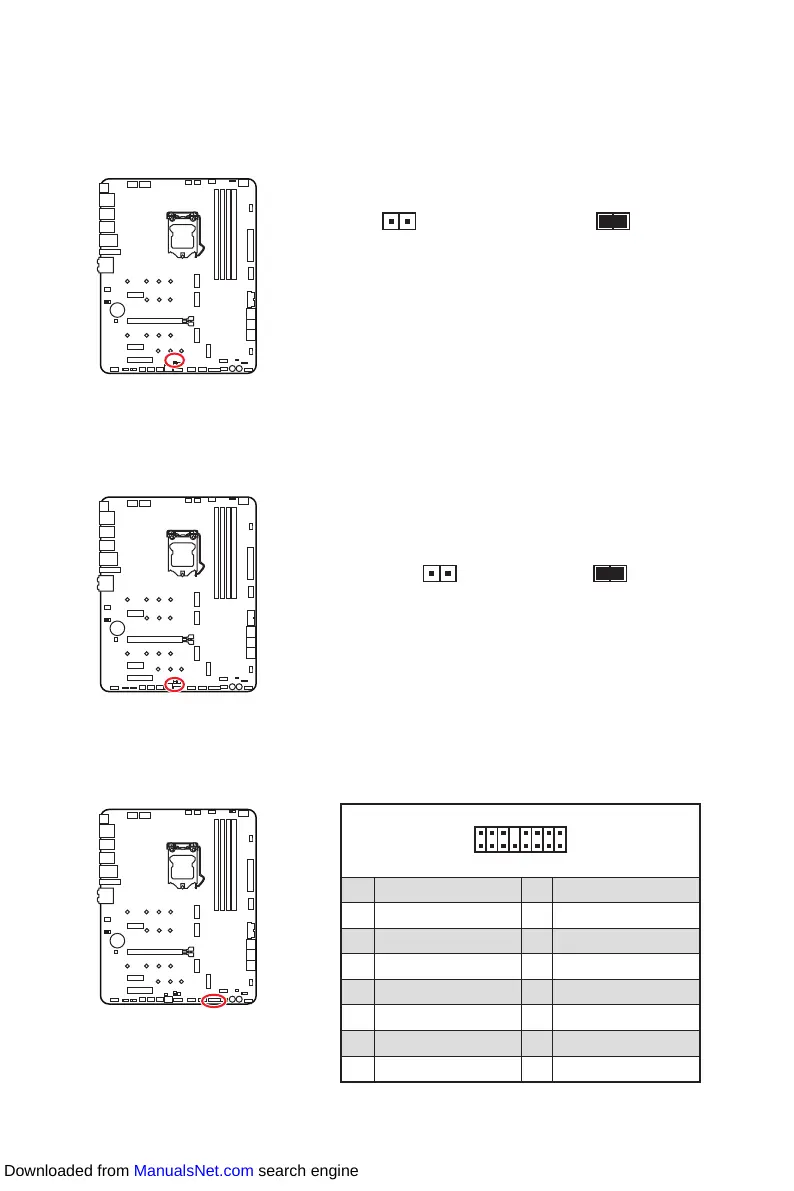

JOC_RT1: OC Retry Jumper





Normal



Boot with the saved

BIOS settings.

Normal



Enabled

Apply the BIOS default





Safe Boot

Short





JOC_FS1: Safe Boot Jumper

This jumper is used for Safe Boot. Once enabled, the system will boot with default



JTBT1: Thunderbolt Add-on Card Connector



2 16

1 TBT_Force_PWR 2 TBT_S0IX_Entry_REQ

3  4 

5  6 TBT_PSON_Override_N

7  8 No pin

9 Ground 10 

11 DG_PEWake 12 SMBDATA_VSB

13 TBT_RTD3_PWR_EN 14 Ground

15  16 
