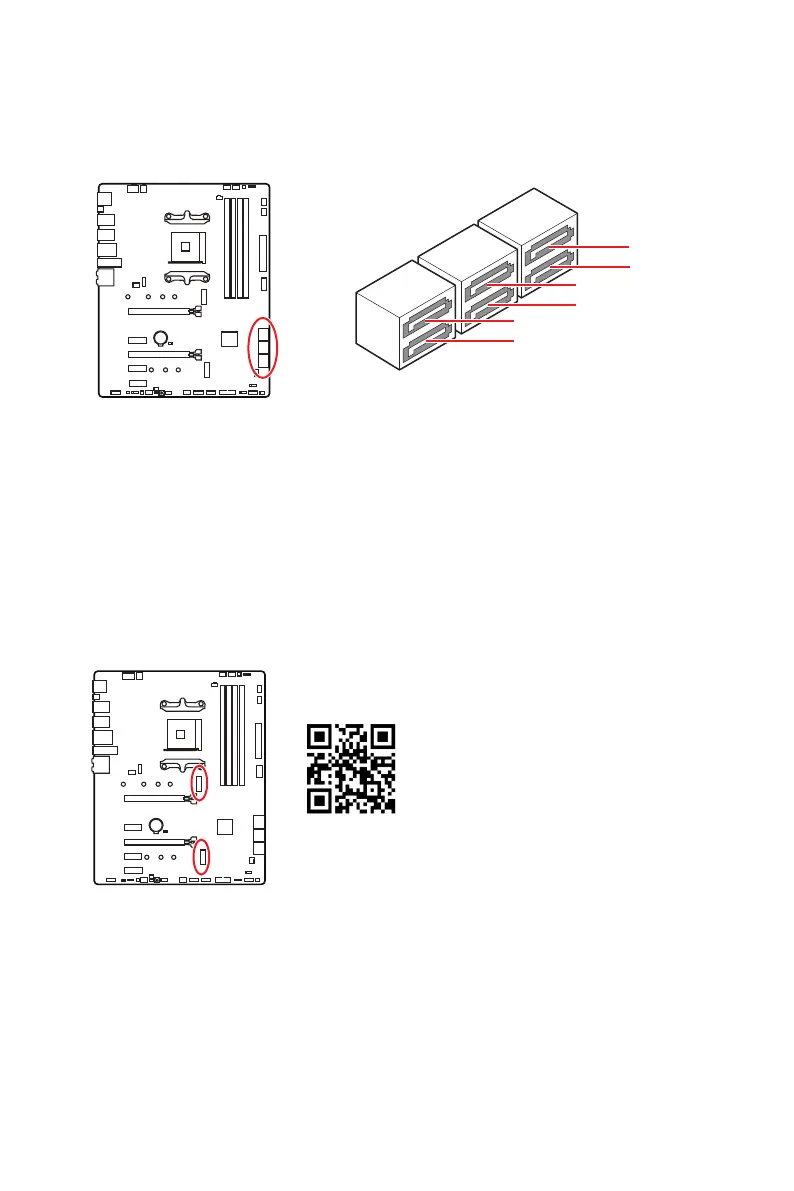

M2_1~2: M.2 Slots (Key M)

M2_1

M2_2

SATA1~6: SATA 6Gb/s Connectors

These connectors are SATA 6Gb/s interface ports. Each connector can connect to one

SATA device.

⚠

Important

∙

Please do not fold the SATA cable at a 90-degree angle. Data loss may result during

transmission otherwise.

∙

SATA cables have identical plugs on either sides of the cable. However, it is

recommended that the flat connector be connected to the motherboard for space

saving purposes.

BAT1

SATA5

SATA1

SATA3

SATA6

SATA2

SATA4

Installing M.2 module

1. Loosen the screws of M.2 SHIELD FROZR heatsink.

2. Remove the M.2 SHIELD FROZR and remove the protective films from the thermal

pads.

⚽

Video Demonstration

Watch the video to learn how to Install

M.2 module.

http://youtu.be/JCTFABytrYA
