Компоненты материнской платы

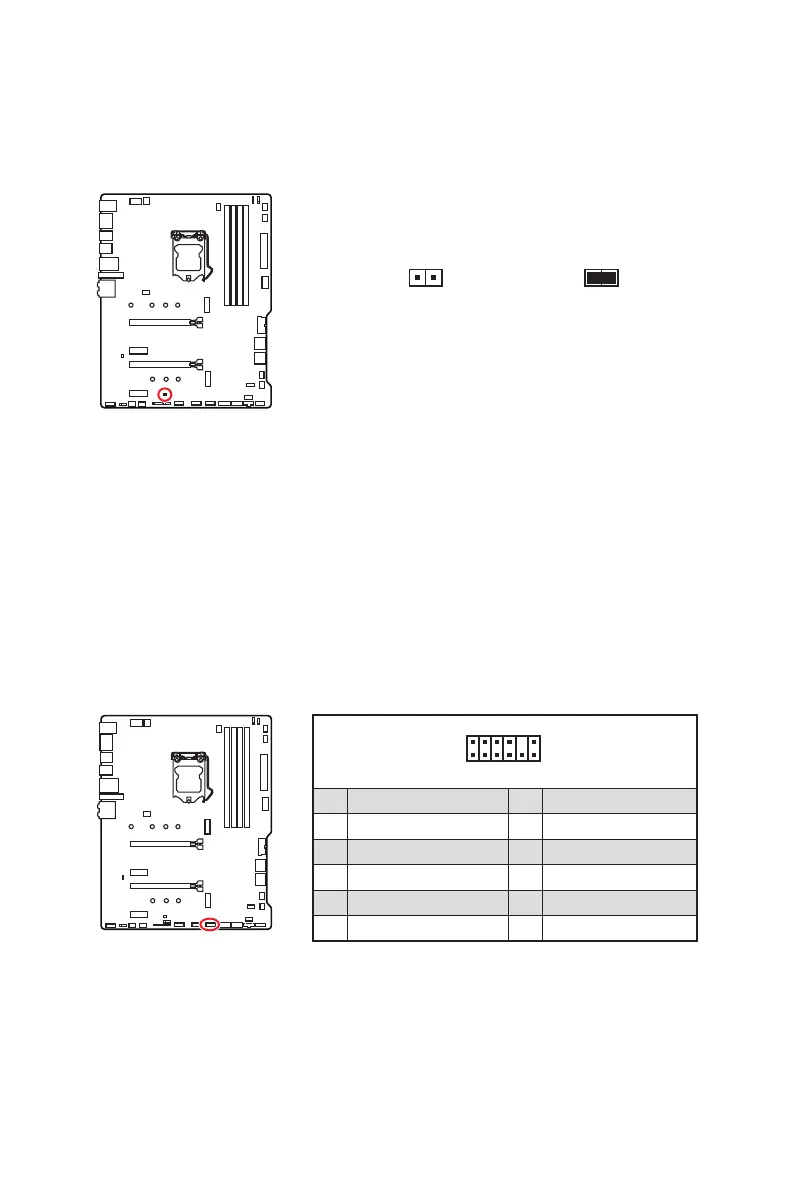

JBAT1: Джампер очистки данных CMOS (Сброс BIOS)















Сброс настроек BIOS до значений по умолчанию

1. 

2. 



3. 

4. 

2 12

1 SPI Power 2 SPI Chip Select

Master In Slave Out (SPI Data)

Master In Slave In (SPI Data)

5 Reserved 6 SPI Clock

7 Ground 8 SPI Reset

9 Reserved 10 No Pin

11 Reserved 12 Interrupt Request

JTPM1: Разъем модуля ТРМ





Other manuals for MSI MPG Z490 GAMING PLUS

Questions and Answers:

Need help?

Do you have a question about the MSI MPG Z490 GAMING PLUS and is the answer not in the manual?

General

Audio chip	Realtek ALC1200
Cooling type	Passive
Component for	PC
Motherboard chipset	Intel Z490
Audio output channels	7.1 channels
Motherboard form factor	ATX
Number of mounting holes	9
Motherboard chipset family	Intel
Windows operating systems supported	Windows 10
Processor socket	LGA 1200 (Socket H5)
Compatible processor series	Intel® Core™ i9
Maximum number of SMP processors	1
Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR4-SDRAM
Maximum internal memory	128 GB
Supported memory clock speeds	2133, 2400, 2666, 2933, 3000, 3200, 3300, 3333, 3400, 3466, 3600, 3733, 3866, 4000, 4133, 4200, 4266, 4300, 4400, 4800 MHz
PCI Express x1 slots	3
PCI Express x16 (Gen 3.x) slots	2
RAID levels	0, 1, 5, 10
Number of HDDs supported	6
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA
DirectX version	12.0
Maximum resolution	4096 x 2304 pixels
Parallel processing technology support	2-Way SLI, 3-Way CrossFireX
Cables included	SATA
USB connector type	USB Type-A, USB Type-C
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Wi-Fi	No
LAN controller	Intel I219-V, Realtek RTL8125-CG
Ethernet interface type	2.5 Gigabit Ethernet
BIOS type	-
Harmonized System (HS) code	84733020
