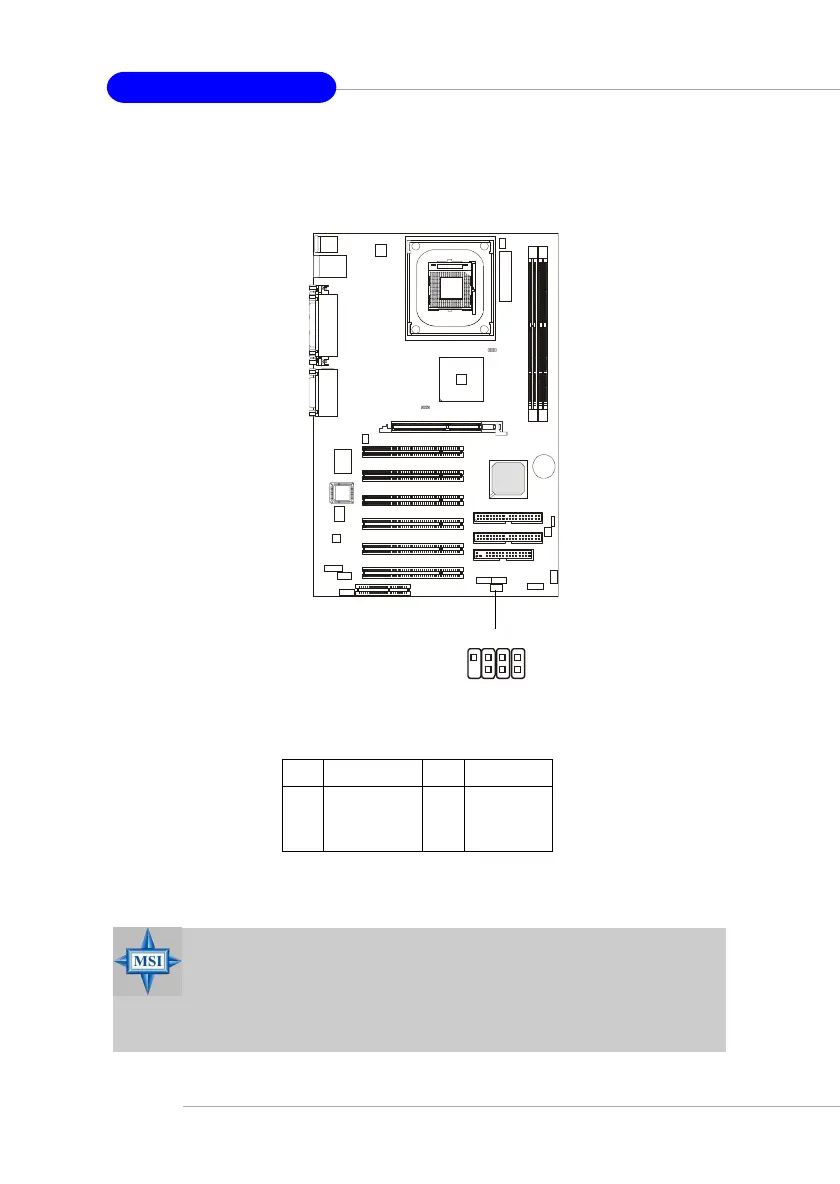

2-24
MS-6580 ATX Mainboard
Bluetooth Connector: JBT1
This connector is used to connect a bluetooth module for wireless
connection.
PIN
SIGNAL
PIN
SIGNAL
1
VCC5
2
3VDUAL
3
D+ (USB signal)
4
GND
5
D- (USB signal)
6
GND
JBT1 Pin Definition
1
2
JBT1
7
8
MSI Reminds You...
Because the bluetooth connector shares the USB interface with
blue-colored USB2.0 connector, the left USB2.0 port will not
function when you attach a bluetooth module to this connector.
43
45
Table of Contents
default chapter
2
FCC-B Radio Frequency Interference Statement
2
Copyright Notice
3
Revision History
3
Technical Support
3
Safety Instructions
4
Table of Contents
5
Chapter 1. Getting Started
8
Mainboard Specifications
9
Mainboard Layout
11
MSI Special Features
12
PC Alert 4
12
Fuzzy Logic 4
13
Live Monitor
14
D-Bracket 2 (Optional)
15
Live Bios/Live Driver
17
S-Bracket (Optional)
18
MSI DVD 5.1 Channel (Optional)
19
Chapter 2. Hardware Setup
21
Quick Components Guide
22
Central Processing Unit: CPU
23
CPU Core Speed Derivation Procedure
23
CPU Installation Procedures for Socket 478
24
Installing the CPU Fan
25
Memory
27
Introduction to DDR SDRAM
27
DIMM Module Combination
28
Installing DDR Modules
28
Power Supply
29
ATX 20-Pin Power Connector: PWR1
29
ATX 12V Power Connector: JPW1
29
Back Panel
30
Keyboard Connector: KBMS1
30
Mouse Connector: KBMS1
31
USB Connectors
31
LAN Jack (Optional)
32
Serial Port Connectors: COM a & COM B
32
Parallel Port Connector
33
Joystick/MIDI Connector
34
Audio Port Connectors
34
Connectors
35
Floppy Disk Drive Connector: FDD1
35
Hard Disk Connectors: IDE1 & IDE2
36
Fan Power Connectors: CPUFAN1/SYS_FAN1
37
Front Panel Audio Connector: JAUD1
38
Front Panel Connectors: JFP1 & JFP2
39
S-Bracket Connector: JSP1
40
Front USB Connectors: JUSB1 & JUSB2
41
D-Bracket 2 Connector: JDB1
43
Bluetooth Connectors: JBT1
44
Irda Infrared Module Header: JIR1
45
CD-In Connector: CD_IN1
45
Jumpers
46
Clear CMOS Jumper: JBAT1
46
Slots
47
AGP (Accelerated Graphics Port) Slot
47
PCI (Peripheral Component Interconnect) Slots
48
CNR (Communication Network Riser) Slot
48
PCI Interrupt Request Routing
49
Chapter 3. BIOS Setup
50
Entering Setup
51
Selecting the First Boot Device
51
Control Keys
52
Getting Help
52
The Main Menu
53
Standard CMOS Features
55
Advanced BIOS Features
57
Advanced Chipset Features
62
Power Management Features
65
PNP/PCI Configurations
69
Integrated Peripherals
72
PC Health Status
76
Frequency/Voltage Control
77
Set Supervisor/User Password
79
Load High Performance/Bios Setup Defaults
80
Appendix: Using 4- or 6-Channel Audio Function
81
Installing the Audio Driver
82
Using 4- or 6-Channel Audio Function
84
Testing the Connected Speakers
94
Playing Karaok
96
Troubleshooting
97
Glossary
101
