2-10 2-11

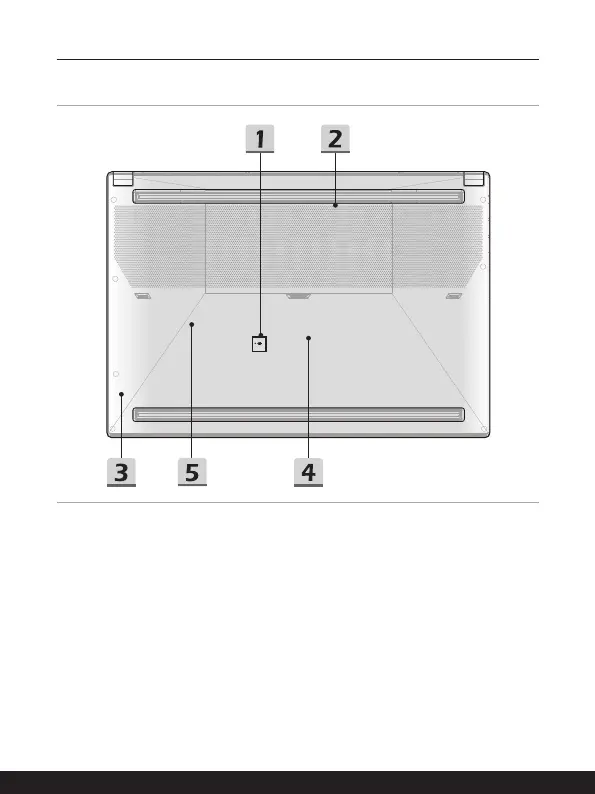

Bottom Side View
1. Battery Reset Hole
Whenever the system firmware (EC) is upgraded or the system hangs, please 1)
power off the notebook; 2) remove the AC power; 3) use a straightened paperclip and
insert it to this hole for 10 secs; 4) connect the AC power; 5) power on the notebook.
2. Ventilator
The ventilator is designed to cool the system. DO NOT block the ventilator for air
circulation.
3. Stereo Speakers
This notebook may be equipped with built-in stereo speakers which deliver the high
quality sound, and supports the HD audio technology.
To Next Page
