MSI X48 Platinum Series User Manual

2-7
Hardware Setup
Memory
72x2=144 pin
DDR3
240-pin, 1.5V
Dual-Channel: Channel A in SKYBLUE; Channel B in PINK
These DIMM slots are used for installing memory modules.
For more information on compatible components, please visit http://global.msi.com.
tw/index.php?func=testreport
1
DIMM1
DIMM2
DIMM3
DIMM4
2
DIMM1
DIMM2
DIMM3
DIMM4
3
DIMM1
DIMM2
DIMM3
DIMM4

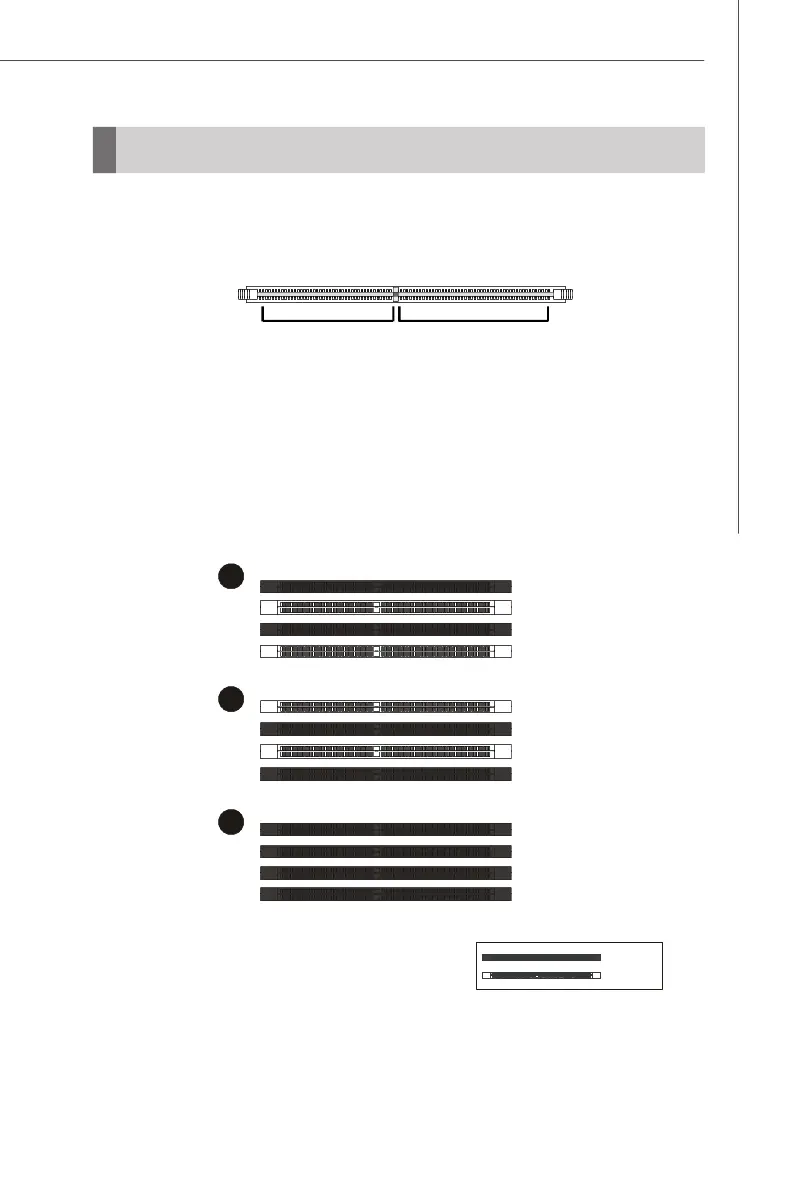

Dual-Channel Memory Population Rules
In Dual-Channel mode, the memory modules can transmit and receive data with two
data bus lines simultaneously. Enabling Dual-Channel mode can enhance the system
performance. Please refer to the following illustrations for population rules under
Dual-Channel mode.
Empty
Installed
48x2=96 pin
