Ru-4
Системная плата MS-7760

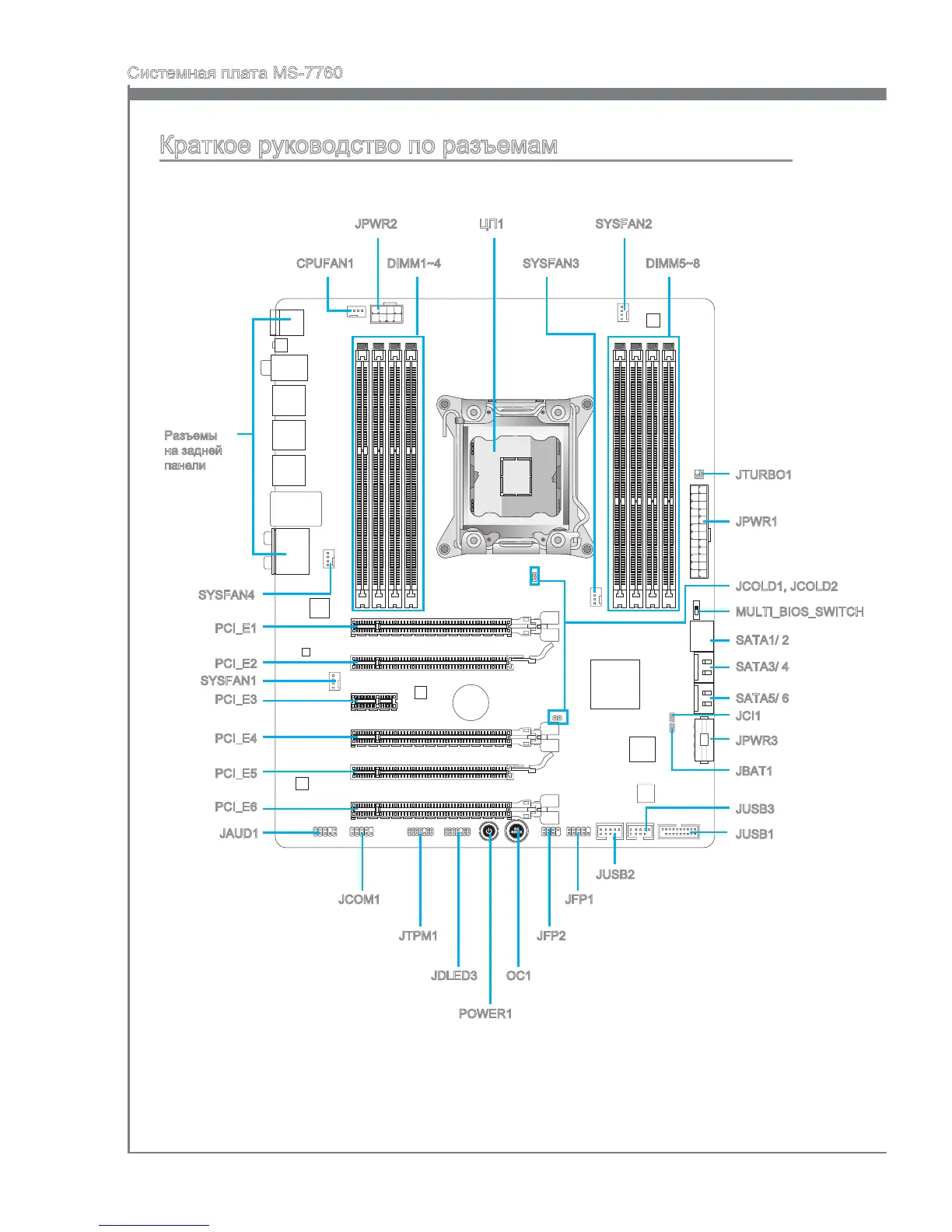

Краткое руководство по разъемам
Разъемы
на задней
панели
ЦП1
CPUFAN1 DIMM1~4
JPWR2
JPWR1
SYSFAN4
SATA1/ 2
JFP1
JUSB2
JAUD1
JCI1
JDLED3
PCI_E1
SYSFAN2
JBAT1
OC1
SYSFAN3
JCOM1
PCI_E2
PCI_E3
PCI_E4
PCI_E5
POWER1
JFP2
SYSFAN1
JTURBO1
BATT
+
DIMM5~8
PCI_E6
JTPM1
JUSB3
JUSB1
SATA3/ 4
JPWR3
SATA5/ 6
MULTI_BIOS_SWITCH
JCOLD1, JCOLD2
