Overview of Components
U2_1: U.2 Connector
This connector is a U.2 interface port. Each connector can connect to one U.2 NVMe
SSD device.
Video Demonstration
Watch the video to learn how to Install
U.2 SSD.
http://youtu.be/KgFvKDxymvw

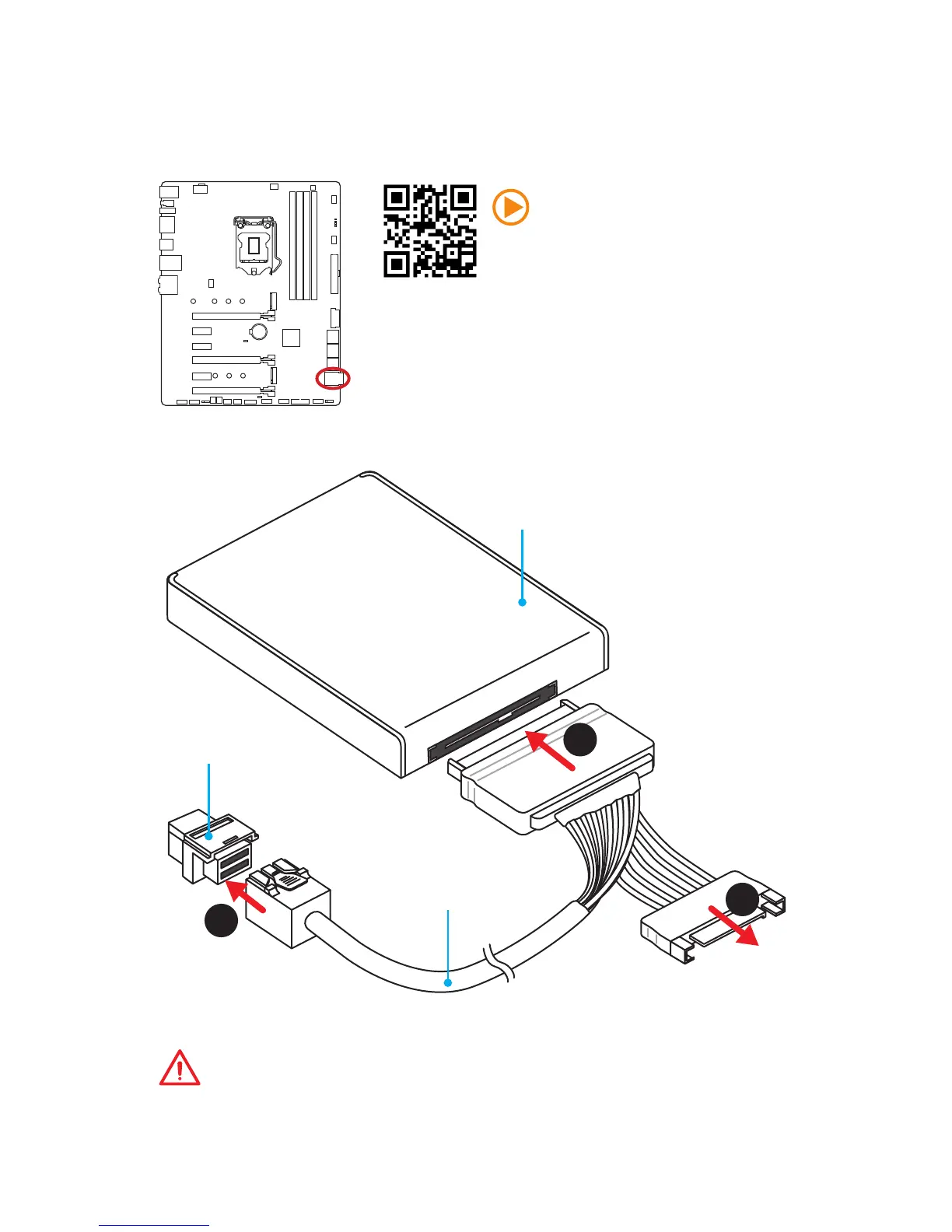

Installing U.2 SSD
1. Connect the U.2 cable to the U.2 connector on the
motherboard.
2. Connect the U.2 cable to the U.2 SSD.
3. Connect the U.2 cable to power adapter cable.
1
2
3
U.2 SSD
U.2 Connector
U.2 Cable
Connect to power
adapter cable
Important
The U.2 port will be unavailable when the PCI_E6 slot has been installed.
