MSI Z77 MPower series User Manual

1-8
Gettng Started

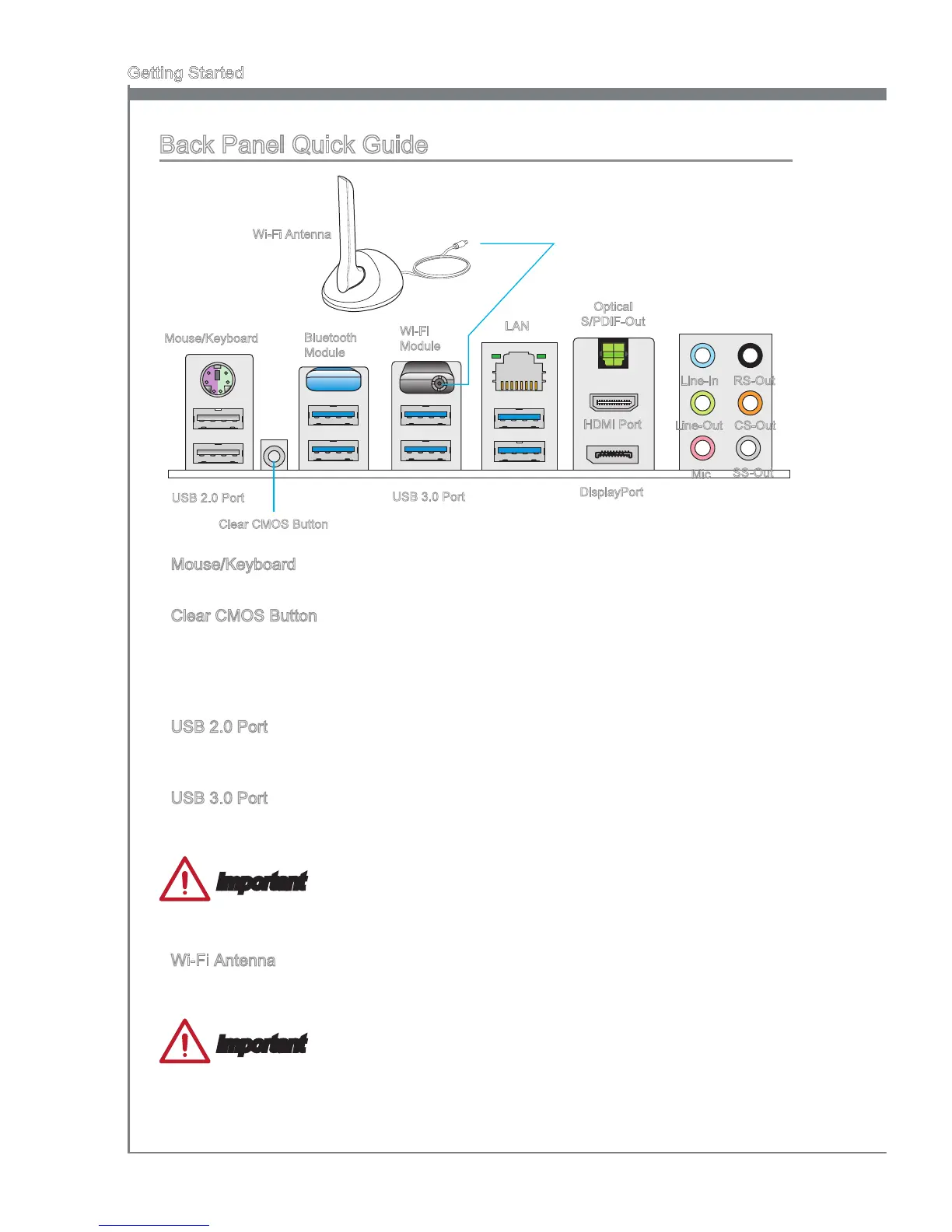

Back Panel Quck Gude
Mouse/Keyboard
A combnaton PS/2
®
mouse/keyboard DIN connector for a PS/2
®
mouse/keyboard.
Clear CMOS Button
There s CMOS RAM present on board that s powered by an external battery to store
system con󰘰guraton data. Usng CMOS RAM, the system can automatcally boot nto
the operatng system (OS) every tme t s turned on. If you wsh to clear the system
con󰘰guraton, press the button to clear the data.
USB 2.0 Port
The USB 2.0 port s for attachng USB 2.0 devces such as keyboard, mouse, or other
USB 2.0-compatble devces.
USB 3.0 Port
USB 3.0 port s backward-compatble wth USB 2.0 devces. It supports data transfer
rate up to 5 Gbt/s (SuperSpeed).
Important
In order to use USB 3.0 devces, you must connect to a USB 3.0 port. If a USB cable s
used, t must be USB 3.0 complant.
W-F Antenna
Plug the W-F antenna cable that comes wth the manboard nto the antenna connector
on the W-F module.
Important
Place the antenna at a clearer area and as close as possble to the access pont,
Don’t place the antenna under the ron table or near electrcal applances.
If the sgnal s weak, please adjust the antenna to the best locaton.
▶
▶
▶
▶
▶
•
•
•
Optcal
S/PDIF-Out
Lne-In
Lne-Out
Mc
RS-Out
CS-Out
SS-Out
USB 3.0 Port
Clear CMOS Button
LAN
Mouse/Keyboard
USB 2.0 Port
HDMI Port
DsplayPort
Bluetooth
Module
W-F
Module
W-F Antenna
