MSI Z87-G43 GAMING User Manual

Chapter 1
1-28Getting Started

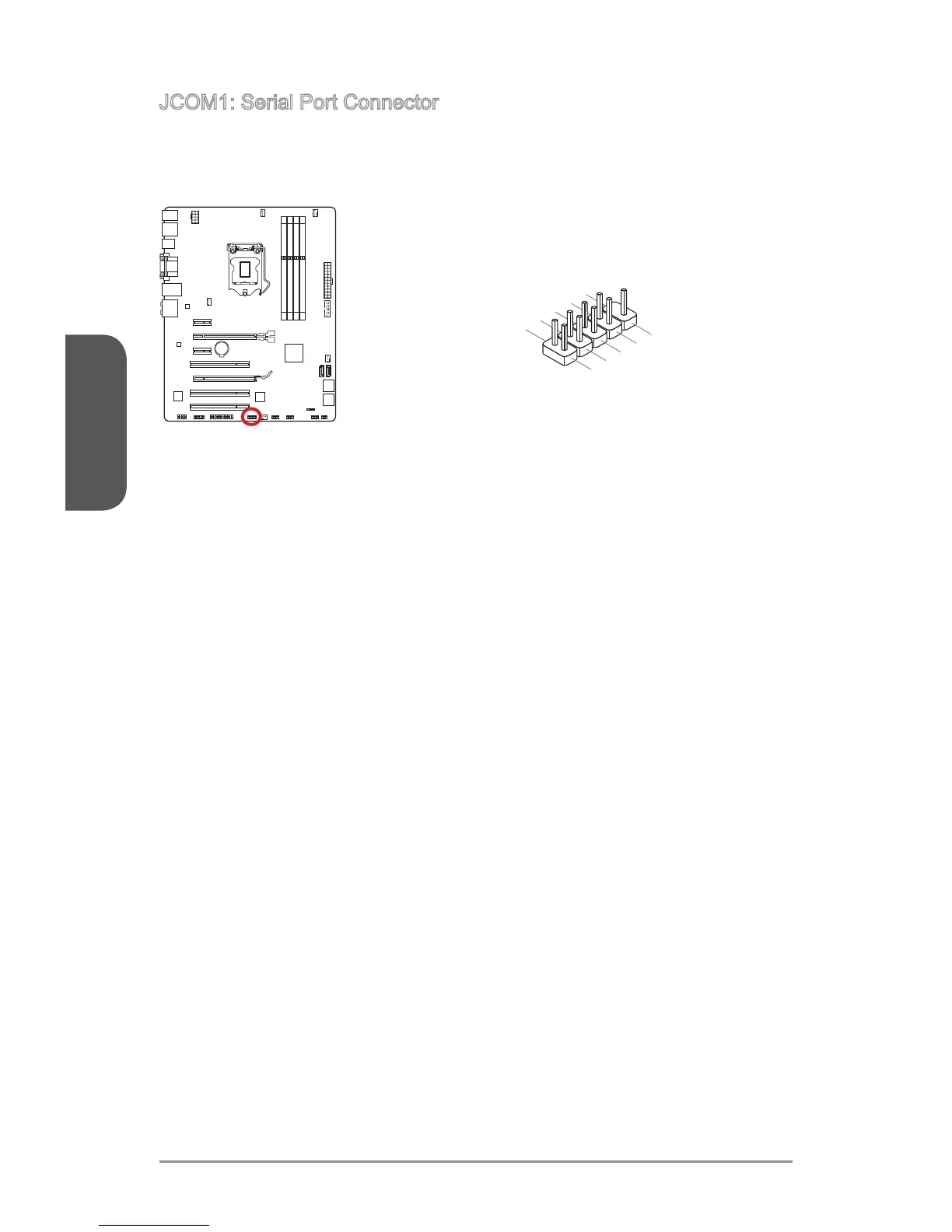

JCOM1: Serial Port Connector
This connector is a 16550A high speed communication port that sends/receives 16
bytes FIFOs. You can attach a serial device.
1
.
D
C
D
3
.
S
O
U
T
1
0
.
N
o
P
i
n
5
.
G
r
o
u
n
d
7
.
R
T
S
9
.
R
I
8
.
C
T
S
6
.
D
S
R
4
.
D
T
R
2
.
S
I
N
DIM M1 DIM M2 DIM M3 DIM M4

MSI Z87-G43 GAMING Specifications

General

Chipset	Intel Z87
Form Factor	ATX
CPU Socket	LGA 1150
Maximum Memory	32GB
PCI Express x16 Slots	2
PCI Express 3.0 x16	1
PCI Express 2.0 x16	1
PCI Express x1	2
PCI Slots	3
SATA Ports	6 x SATA 6Gb/s
USB Ports	6 x USB 3.0, 8 x USB 2.0
Multi-GPU Support	AMD CrossFireX
Memory Slots	4
Memory Standard	DDR3 1066/1333/1600
Audio	Realtek ALC1150
LAN	Killer E2205 Gigabit LAN
RAID Support	RAID 0, 1, 5, 10
Power Connectors	24-pin ATX main power connector, 8-pin ATX 12V power connector
