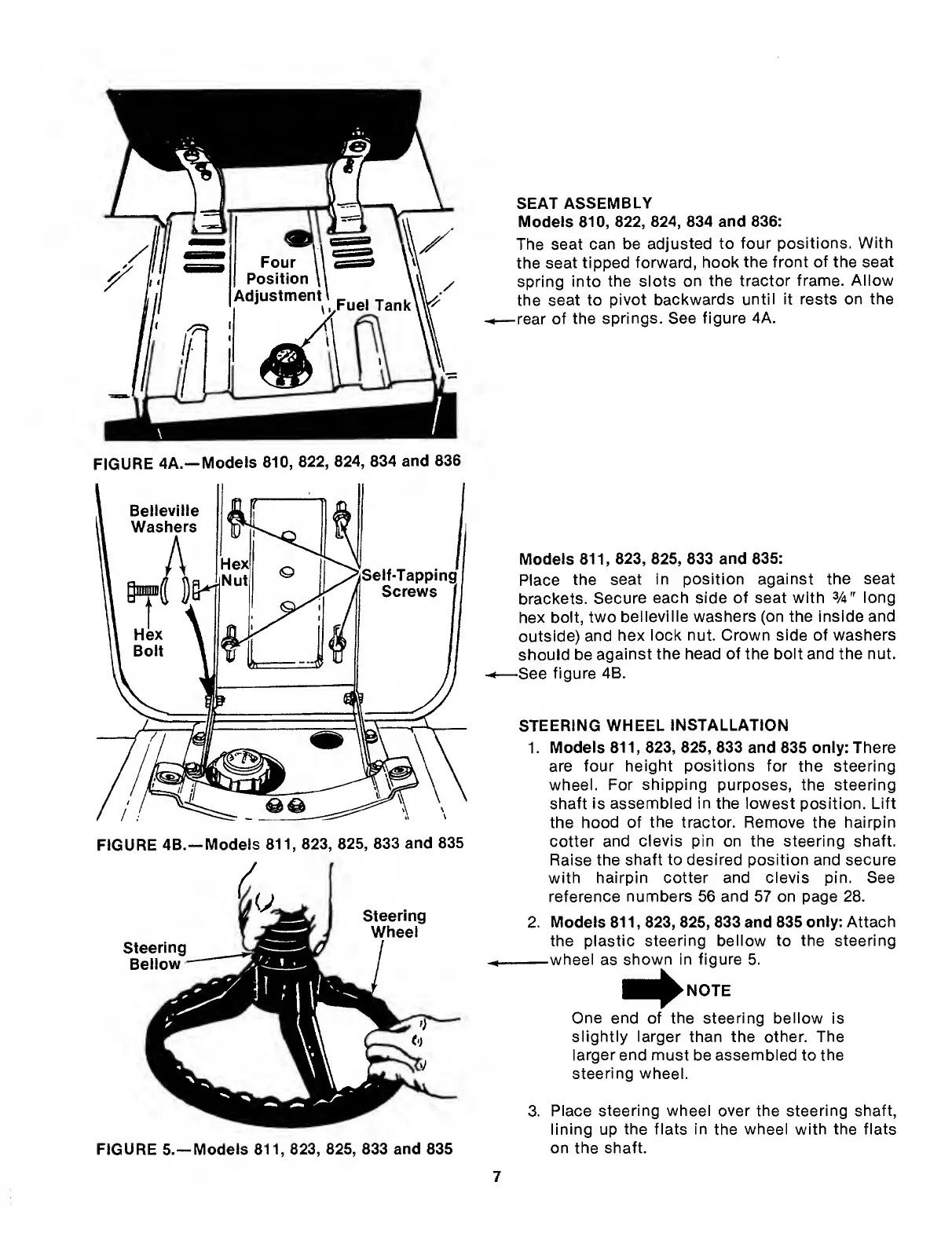

FIGURE 4A.—Models 810, 822, 824, 834 and 836
FIGURE 5.—Models 811, 823, 825, 833 and 835
SEAT ASSEMBLY
Models 810, 822, 824, 834 and 836:
The seat can be adjusted to four positions. With
the seat tipped forward, hook the front of the seat
spring into the slots on the tractor frame. Allow
the seat to pivot backwards until it rests on the
—rear of the springs. See figure 4A.
Models 811, 823, 825, 833 and 835:
Place the seat in position against the seat
brackets. Secure each side of seat with 3 / 4 " long
hex bolt, two belleville washers (on the inside and
outside) and hex lock nut. Crown side of washers
should be against the head of the bolt and the nut.
- 4 —See figure 4B.
STEERING WHEEL INSTALLATION
1. M o dels 811, 823, 825, 833 and 835 only: There
are four height positions for the steering
wheel. For shipping purposes, the steering
shaft is assembled in the lowest position. Lift
the hood of the tractor. Remove the hairpin
cotter and clevis pin on the steering shaft.
Raise the shaft to desired position and secure
with hairpin cotter and clevis pin. See
reference numbers 56 and 57 on page 28.
2. M o dels 811, 823, 825, 833 and 835 only: Attach
the plastic steering bellow to the steering
—wheel as shown in figure 5.
One end of the steering bellow is
slightly larger than the other. The
larger end must be assembled to the
steering wheel.
3. P lace steering wheel over the steering shaft,
lining up the flats in the wheel with the flats
on the shaft.
7
