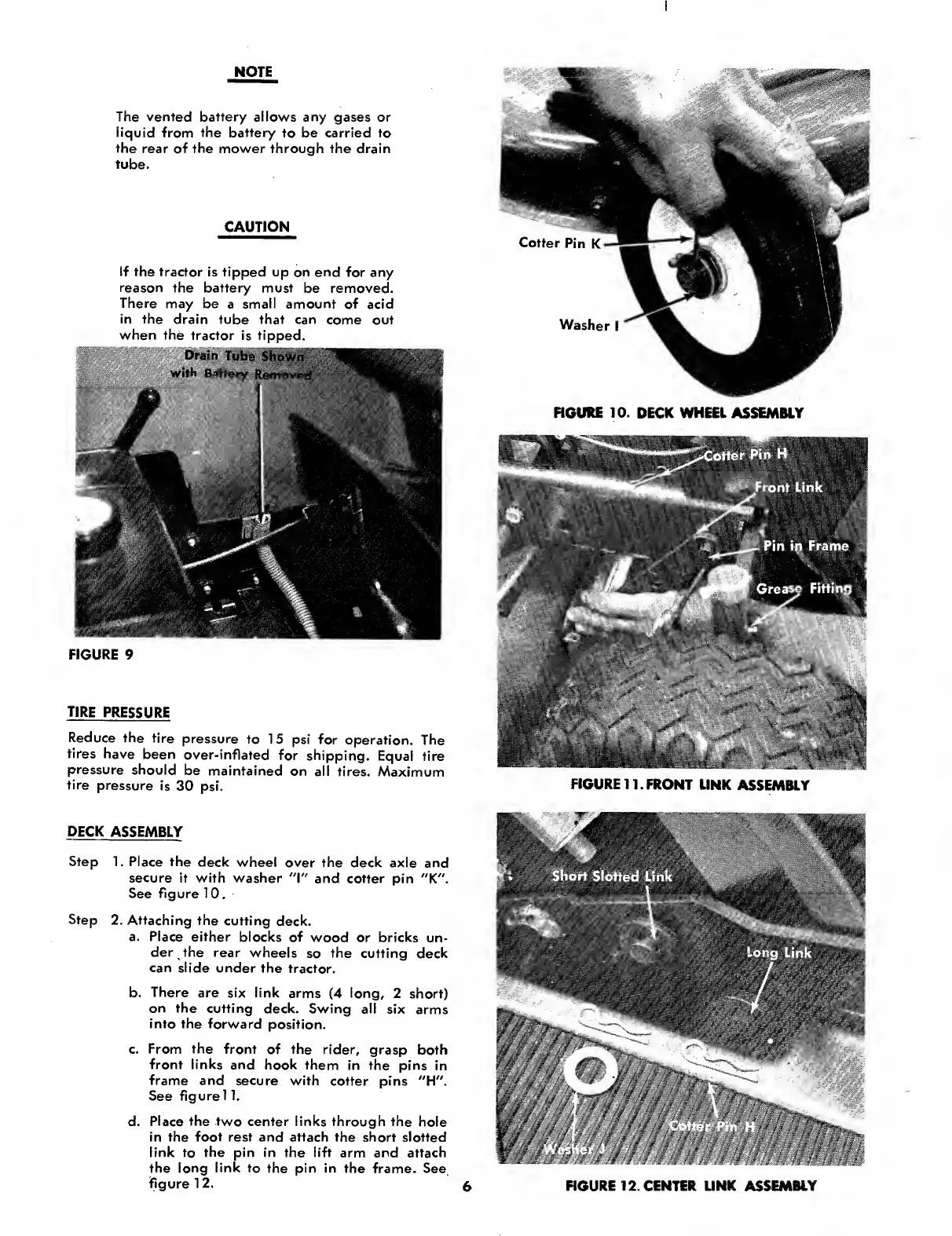

I
NOTE
The
vented
battery
allows
any
gases
or
liquid
from
the
battery
to
be
carried
to
the
rear
of
the
mower
through
the
drain
tube.
CAUTION
If
the
tractor
is
tipped
up
on
end
for
any
reason
the
battery
must
be
removed.
There
may
be
a
small
amount
of
acid
in
the
drain
tube
that
can
come
out
when
the
tractor
is
tipped.
FIGURE
9
TIRE
PRESSURE
Reduce
the
tire
pressure
to
15
psi
for
operation.
The
tires
have
been
over-inflated
for
shipping.
Equal
tire
pressure
should
be
maintained
on
all
tires.
Maximum
tire
pressure
is
30
psi.
FIGURE
10.
DECK
WHEEL
ASSEMBLY
FIGURE
11.
FRONT
LINK
ASSEMBLY
DECK
ASSEMBLY
Step
1.
Place
the
deck
wheel
over
the
deck
axle
and
secure
it
with
washer
"I"
and
cotter
pin
"K".
See
figure
10.
Step
2.
Attaching
the
cutting
deck.
a.
Place
either
blocks
of
wood
or
bricks
un¬
der
the
rear
wheels
so
the
cutting
deck
can
slide
under
the
tractor.
b.
There
are
six
link
arms
(4
long,
2
short)
on
the
cutting
deck.
Swing
ail
six
arms
into
the
forward
position.
c.
From
the
front
of
the
rider,
grasp
both
front
links
and
hook
them
in
the
pins
in
frame
and
secure
with
cotter
pins
"H".
See
figure
11.
d.
Place
the
two
center
links
through
the
hole
in
the
foot
rest
and
attach
the
short
slotted
link
to
the
pin
in
the
lift
arm
and
attach
the
long
link
to
the
pin
in
the
frame.
See
figure
12.
$
Short
Slotted
Link
long
Link
T
Cotter
Pin
H
fmjSm
FIGURE
12.
CENTER
LINK
ASSEMBLY
