English

English-5

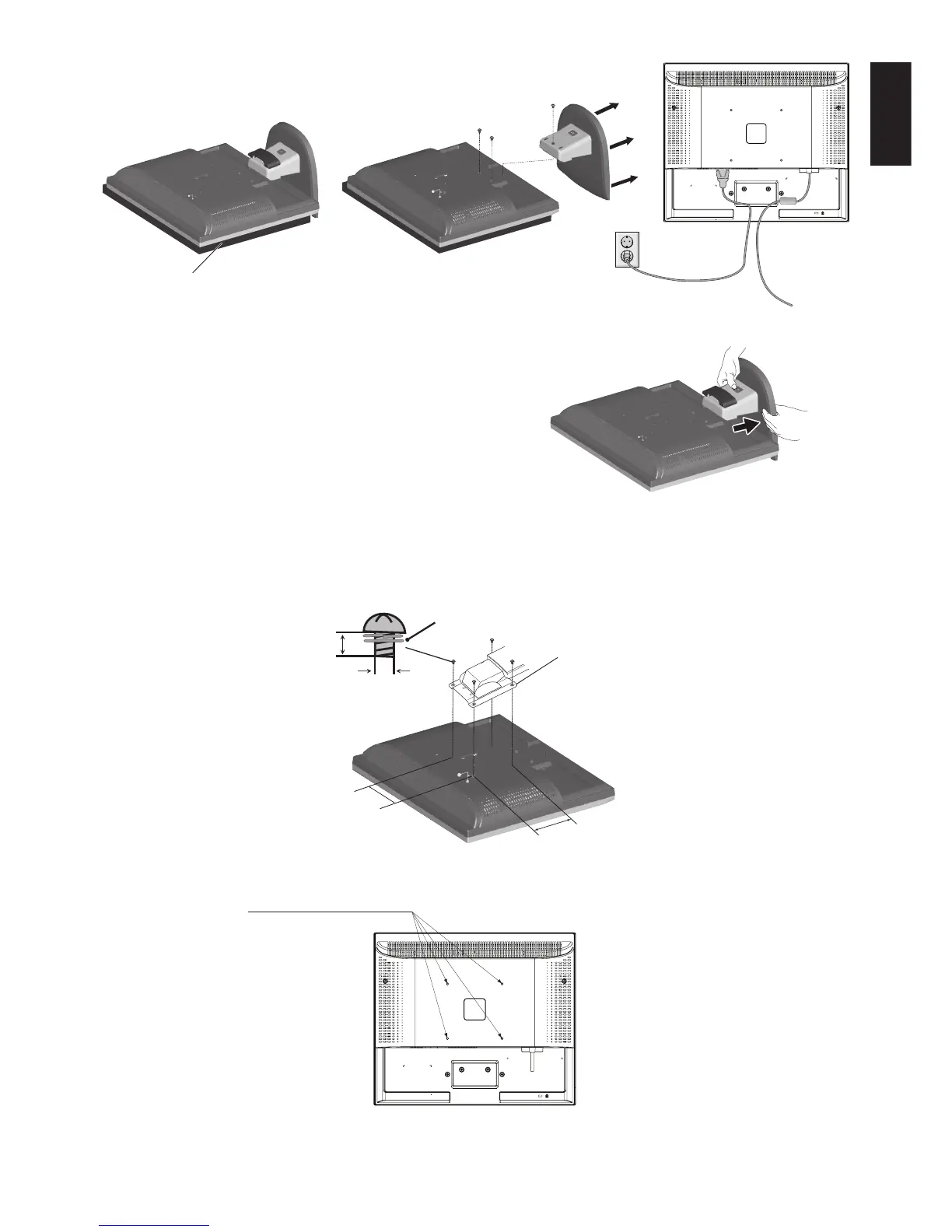

Figure R.1

Non-abrasive surface

Figure R.2 Figure R.3

Removing the Base

NOTE: Always remove the Base when shipping the LCD.

1. Place monitor face down on a non-abrasive surface (Figure R.1).

2. While using your thumbs, press the bottom tabs upward to unlock.

3. Pull the unlocked base off the stand.

Connecting a Flexible Arm

This LCD monitor is designed for use with a flexible arm.

Please use the screws (4pcs) as shown in the picture when installing. To meet the safety requirements, the monitor must be

mounted to an arm which guaranties the necessary stability under consideration of the weight of the monitor.

The LCD monitor shall only be used with an approved arm (e.g. GS mark).

4 x 12 mm with lock washer and flat washer

Tighten all screws

100 mm

Thickness of Bracket

(Arm) 2.0 ~ 3.2 mm

4-SCREWS (M4)

(MAX depth: 8.5 mm)

Weight of LCD assembly: 3.6 kg - AccuSync LCD73V/LCD170V (MAX)

4.9 kg - AccuSync LCD93V/LCD190V (MAX)

Specifications

12 mm
