Flexible Arm Installation
This LCD monitor is designed for use with a flexible arm. To mount the monitor to a flexible arm:
1. Follow the instructions on how Remove Monitor Stand for Mounting to remove the stand.
2. Using the 4 screws from the stand removal, attach the arm to the monitor (Figure F.1).
NOTE: The LCD monitor should only be used with an approved arm (e.g. GS mark). To meet the safety requirements, the
monitor must be mounted to an arm, which guaranties the necessary stability under consideration of the weight of
the monitor.
NOTE: The mounting stand must be able to sustain at least 17.6 kg and be UL certified.
Thickness of Bracket (Arm)
2.0~3.2 mm
Weight of LCD assembly: 4.4 kg MAX
100 mm
100 mm

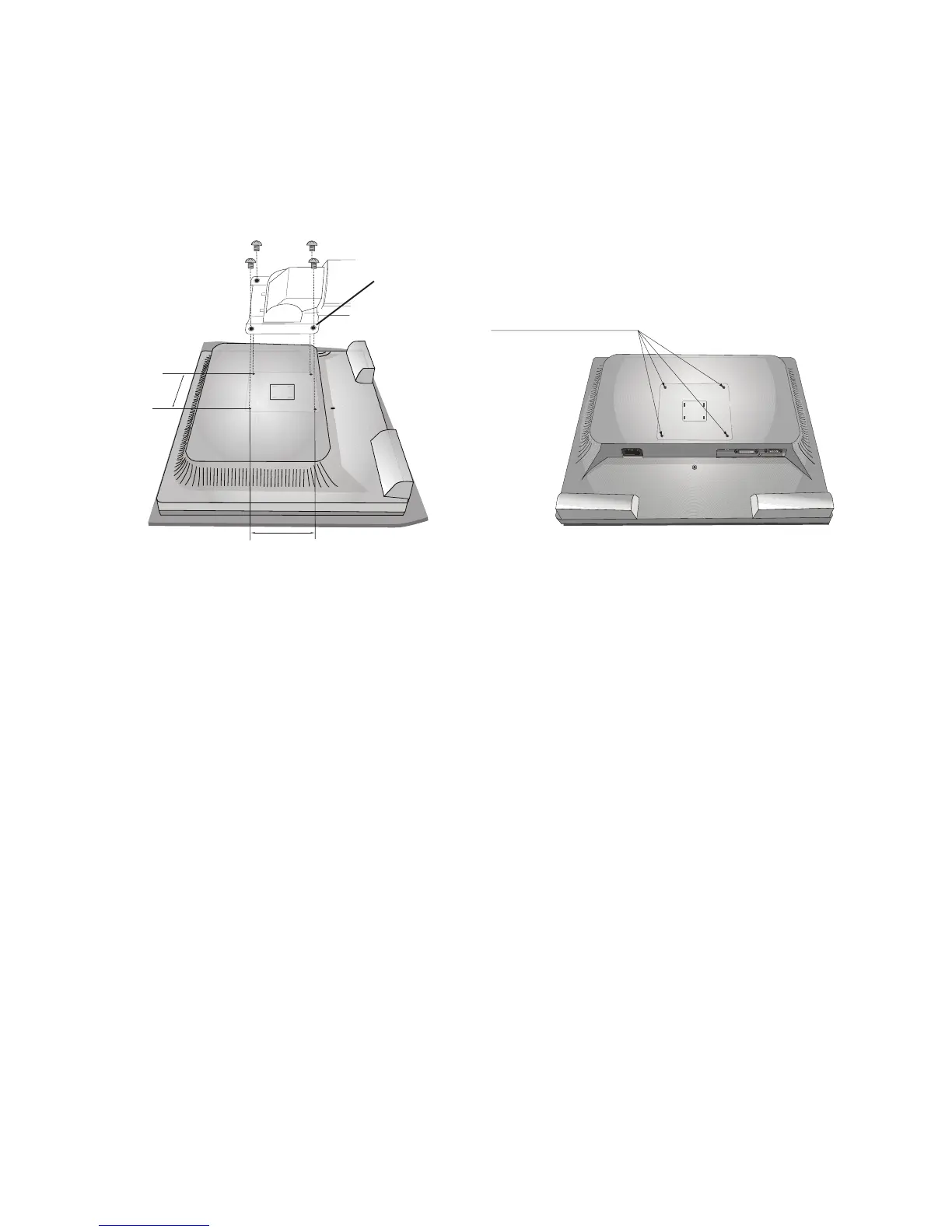

Figure F.1
4 Screws (M4)
(Max Depth: 14 mm)
To Next Page
