English−14

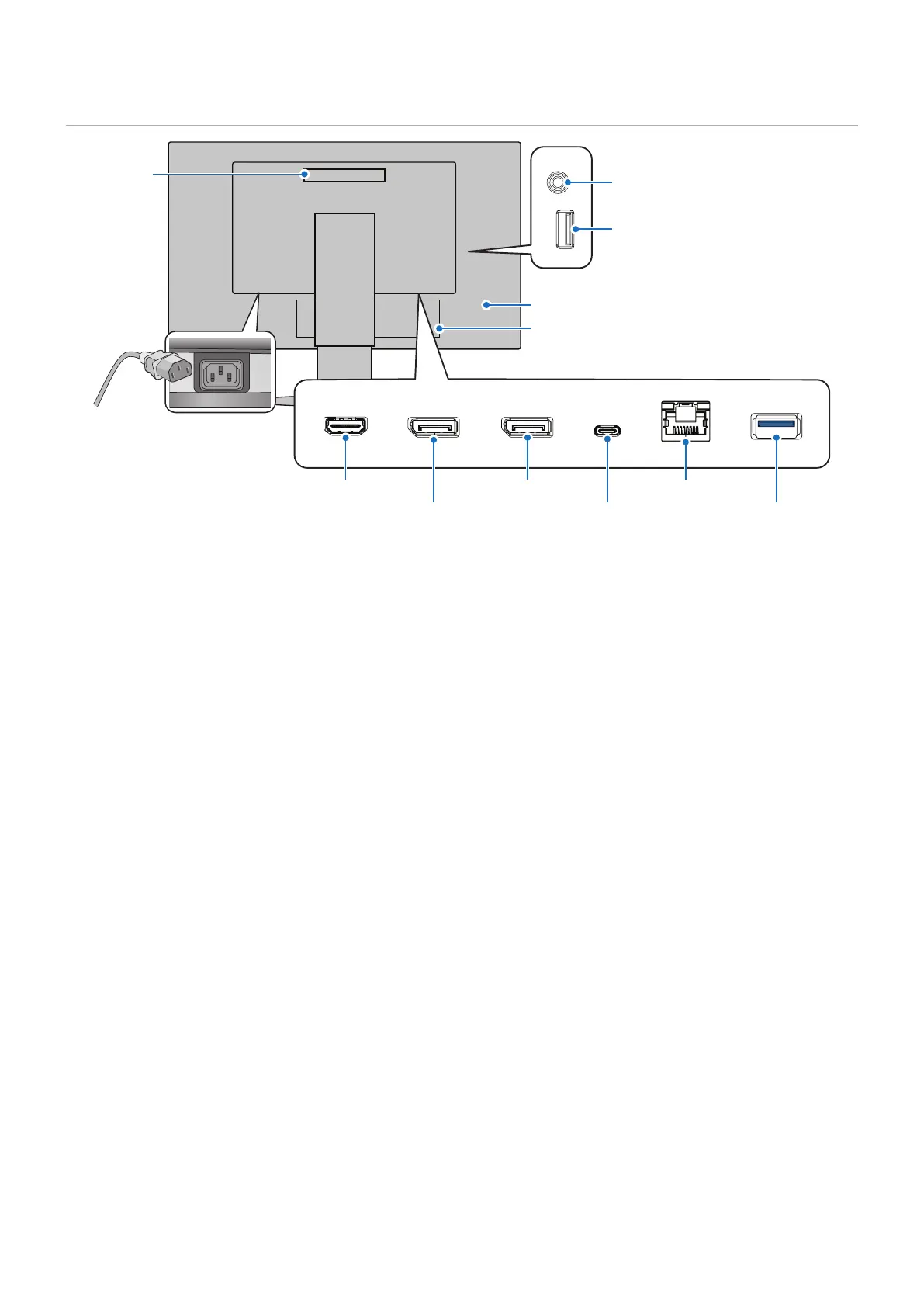

Terminal Panel
0 Security Slot
4 DisplayPort OUT2 HDMI IN
9 Label
8 Headphone
7 USB Downstream
(Type-A)
3 DisplayPort IN
6 LAN
5 USB-C Port 7 USB Downstream
Port (Type-A)
1 AC IN Connector
!
1 AC IN Connector
Connects with the supplied power cord.
2 HDMI IN
HDMI signals input.
3 DisplayPort IN
DisplayPort signals input.
4 DisplayPort OUT
DisplayPort signals output.
Connects with DisplayPort input of another monitor.
5 USB-C Port
Connects with USB Type-C
®
compliant external equipment
such as a computer. Charges a connected USB device
(USB Power Delivery). See “Specifications” page.
NOTE: • Supports DisplayPort signals input when a
connected USB-C device complies with USB
Power Delivery.
• Functions as a USB hub.
• Provides power delivery to a connected device
when the function is enabled in the OSD ([USB
FUNCTIONALITY] must be set to [AUTO] or
[ON]).
6 LAN Port IN (RJ-45)
A LAN-to-USB conversion function is equipped. Through
the USB port, a connected computer can access to LAN
connection. By connecting with the USB port, you can
create a stable network environment even if the connected
computer is not equipped with LAN ports.
NOTE: LED on the side of LAN port lits when a LAN cable
is connect to the monitor.
Connected: Steady green LED.
Communicating: Blinking amber LED.
7 USB Downstream Port (Type-A)
Connects with USB devices.
8 Headphone Jack
Connects with headphones.
The audio out signal is always routed to the headphone jack
when headphones are connected to the monitor; there is no
sound from the monitor speakers.
9 Label
0 Security Slot
Security and theft protection lock slot compatible with
Kensington cables/equipment.
For products visit Kensington’s website.
