English-29
English
Using ControlSync function with multi screen confi guration
To control sub monitor from master monitor, control buttons of the master monitor is used.
Please install master monitor at accessible place.
Mounting multi screen confi guration
When monitors are used in a multi screen confi guration for a longer time, slight expansion of the displays may happen due to
temperature changes. Due to this it is recommended that over one millimeter gap is kept between adjacent display edges.

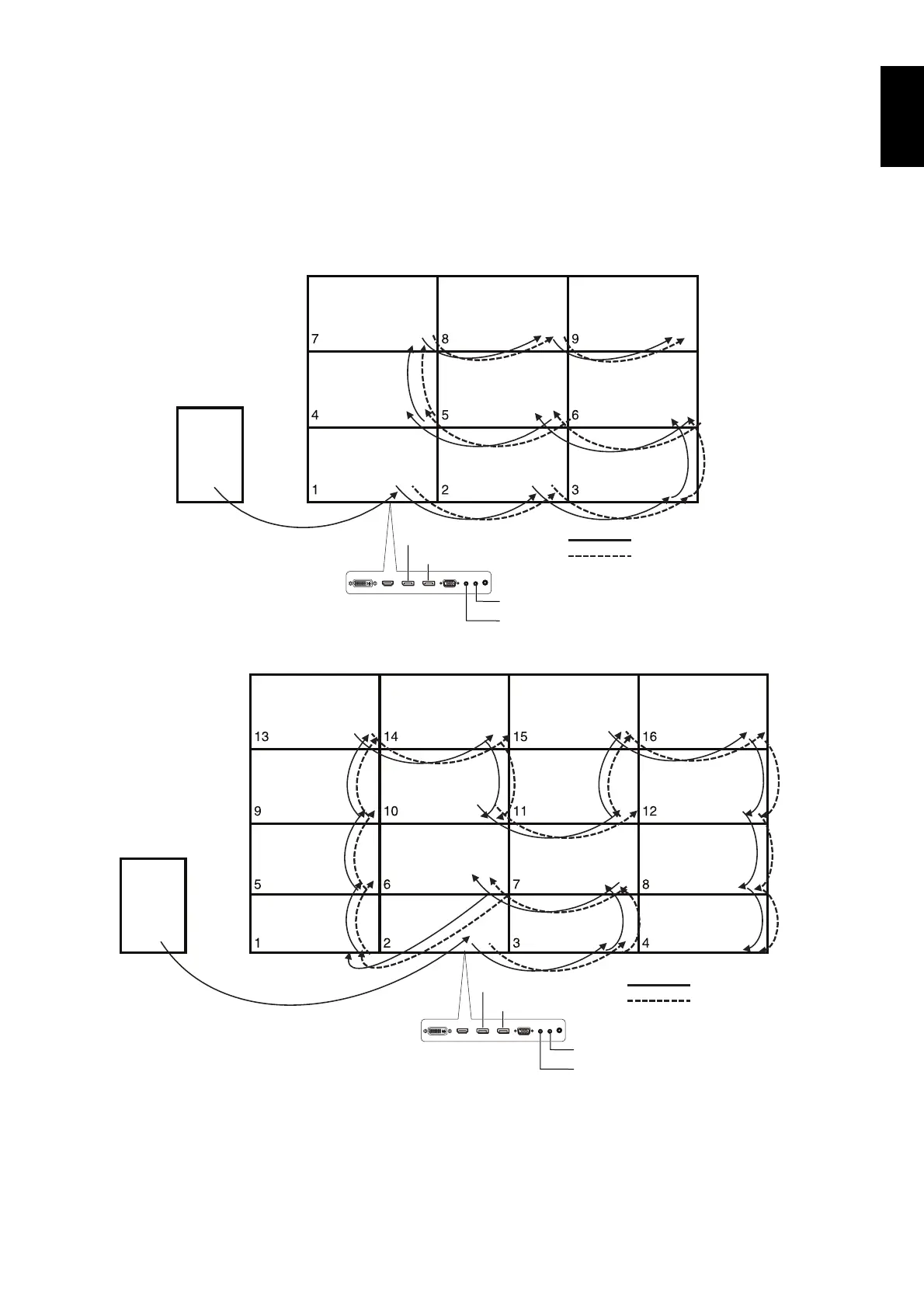

[Cable connection example]
H MONITOR 3
V MONITOR 3
DisplayPort IN
DisplayPort OUT
ControlSync IN
ControlSync OUT
Computer
Master
ControlSync Cable
DisplayPort Cable
H MONITOR 4
V MONITOR 4 including H MONITOR 2, V MONITOR 2 MST display.
DisplayPort IN
DisplayPort OUT
ControlSync IN
ControlSync OUT
Computer
Master
ControlSync Cable
MST MST
MST MST
DisplayPort Cable
If monitors are connected with ControlSync cables, please make sure the monitor, which is connected to a computer is master
monitor.
If you turn off one of monitors in multi screen confi guration, the other monitor’s picture connected to the monitor turn off as well.
To display the monitors, please turn on the monitor, which you turn off.
When you set MST at “DP OUT MULTISTREAM” with multi screen confi guration, individual image is displayed maximally
4 monitors counting from the monitor connected with a computer.
When you set one image to be displayed with multi screen confi guration, please set monitor number by referring MONITOR NO.
(see page 20). Monitor number order does not be changed by how you connect cables.
