English
English-9

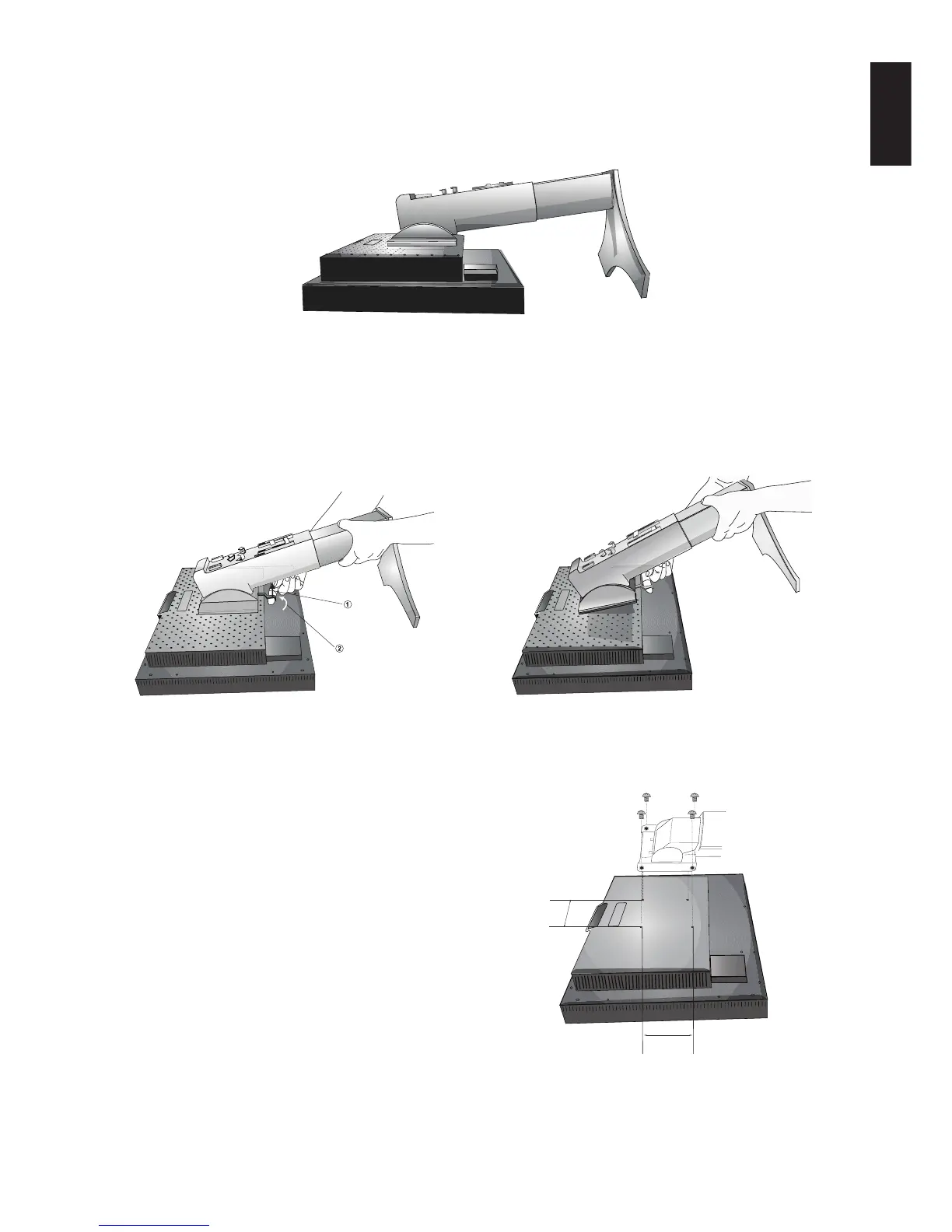

Figure S.1
4. Place one hand around the base and one hand on the Quick Release Lever. Move the Quick Release Lever in the direction
indicated by the arrows (Figure S.2).
5. Lift up the bottom of the stand to unhook it from the monitor (Figure S.3). The monitor can now be mounted using and
alternate method. Reverse process to reattach stand.
NOTE: Use only VESA-compatible alternative mounting method (100 mm pitch).
NOTE: Handle with care when removing monitor stand.
Figure S.2
Flexible Arm Installation
This LCD monitor is designed for use with a flexible arm.
1. Follow the instructions on how Remove Monitor Stand for
Mounting to remove the stand.
2. Change the 4 screws that were removed from the stand removal to
attach the flexible arm to the monitor (Figure F.1).
Caution: • When mounting, use ONLY the screws (4 pcs) that were
removed from the stand to avoid damage to the monitor
or stand.
• The monitor should only be used with an approved arm
(e.g. GS mark).
•
When using mounting accessories (e.g. VESA (100 x 100),
use M4 size screws (Length: bracket thickness + 10mm).
Recommended Fasten Force: 98 - 137N•cm.
•To avoid blocking vent, keep adequate space above and
behind the monitor when using with flexible arm.
NOTE: The mounting stand must be able to sustain at least 24.4 kg
and be UL certified.
Figure S.3
Remove Monitor Stand for Mounting
To prepare the monitor for alternate mounting purposes:
1. Disconnect all cables.
2. Place hands on each side of the monitor and lift up to the highest position.
3. Place monitor face down on a non-abrasive surface (Figure S.1).
100mm
100mm
Figure F.1
Up
Slide
Weight of LCD assembly: 6.1 kg MAX
To Next Page
