NEC MultiSync UN552S User Manual

NEC Display Solutions

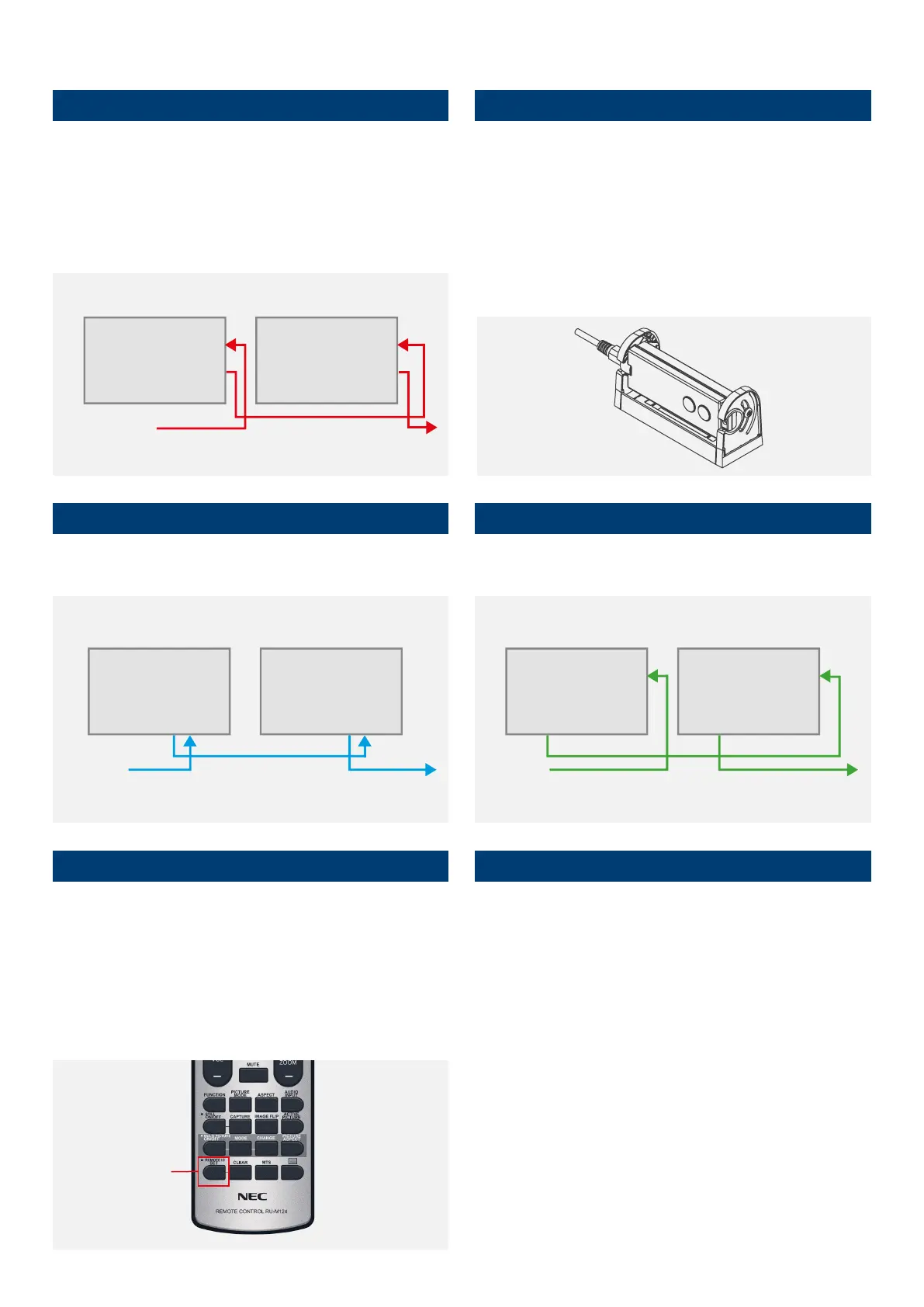

Video Wall Installation Guide
2
1. LAN cable Daisy Chain
Used for controlling monitors via network management system (e.g. NEC
NaViSet Administrator 2), external remote kit KT-RC3 and for display
calibration.
Note: LAN1: input, LAN 2: output. Alternatively, RS232 input can be used
for the rst monitor.
3. DisplayPort Daisy Chain
Used for forwarding video signals from the following sources: DisplayPort
and OPS Slot-in PC.
5. How to program the correct ID on the Remote Control
The Remote Control can be congured to manage a dedicated monitor or
all monitors in parallel.
• All displays in parallel: Hold REMOTE ID SET (key bottom left) and
press button “0”
• Dedicated display (e.g. Display 1): Hold REMOTE ID SET (key
bottom left) and press button “1”
6. Connect an source to the primary monitor
Connect your external PC to the DisplayPort, HDMI or DVI interface on
the rst monitor. Alternatively, utilise an OPS Slot-in PC or the integrated
Media Player embedded into the rst monitor for a neat and seamless
solution.
In the case of using OPS-PC as a source, the internal OPS-PC interface
should be congured as “DisplayPort” to achieve the highest signal quality
(3840 x 2160, 60 Hz).
The default setting is “AUTO” for highest compatible resolution.
For manual setup of the OPS-PC interface, use the remote control on the
Primary Monitor:
• Menu: OPTION > SLOT2 CH SETTING > CH1 > SET
• Menu: OPTION > SLOT2 CH SELECT > DisplayPort > SET
4. HDMI Daisy Chain
Used for forwarding video signals from the following sources: HDMI, DVI,
internal Media Player and OPS Slot-in PC.
2. Connect remote IR sensor (KT-RC3)
Connect the sensor to the rst screen in the LAN daisy chain using the
supplied 3.5mm jack cable. (connect to interface “REMOTE” on the rst
screen)
Note: The sensor allows you to benet from the ambient light sensor and
the human sensor, it also serves as a conventional IR receiver enabling
you to control the wall via the remote control. The KT-RC3 sensor kit,
including remote control is sold separately.
DISPLAY 1
FROMNETWORK
MANAGEMENT
TO DISPLAY 3
LAN 1 LAN 1
LAN 2 LAN 2
DISPLAY 2
EXTERNAL
SOURCE
DISPLAY 1
HDMI 1 HDMI 1
HDMI OUT HDMI OUT
TO DISPLAY 3
DISPLAY 2DISPLAY 1
EXTERNAL
SOURCE
TO DISPLAY 3
DP OUT DP1 DP OUT DP1
DISPLAY 2
REMOTE ID
SET

NEC MultiSync UN552S Specifications

General

Pixel pitch	0.63 x 0.63 mm
Response time	8 ms
Display diagonal	55 \
Display brightness	700 cd/m²
Display technology	LED
Native aspect ratio	16:9
Vertical scan range	23 - 86 Hz
Horizontal scan range	26 - 134 kHz
Contrast ratio (typical)	1700:1
Display diagonal (metric)	138.78 cm
Active display area (W x H)	1209.63 x 680.34 mm
Operating hours (hours/days)	24/7
Power consumption (standby)	0.5 W
Power consumption (typical)	234 W
Maximum refresh rate	60 Hz
Annual energy consumption	341 kWh
Purpose	Universal
Orientation	Horizontal/Vertical
Product color	Black
Product design	Video wall
Placement supported	Indoor
Bezel width (bottom)	0.44 mm
Panel mounting interface	400 x 400 mm
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	20 - 80 %
Certification	BSMI; CE; EAC; EMC B; FCC; PSB; RCM; REACH; RoHS; SASO; TÜV GS; TÜV S; UL/C-UL; VCCI
Sustainability certificates	RoHS
Cables included	AC, DisplayPort, HDMI
USB ports quantity	5
HDMI ports quantity	3
Compatible memory cards	MicroSD (TransFlash)
Ethernet LAN data rates	10, 100 Mbit/s
HDMI input ports quantity	2
Ethernet LAN (RJ-45) ports	1
Audio formats supported	AAC, MP3, WAV
Image formats supported	JPG, PNG
Video formats supported	FLV, H.264, MOV, MP4, MPG, WMV
Harmonized System (HS) code	85285210

Weight and Dimensions

Depth	98.6 mm
Width	1210.5 mm
Height	681.2 mm
Weight	25800 g
