NEC MultiSync UN552S User Manual

NEC Display Solutions
Video Wall Installation Guide

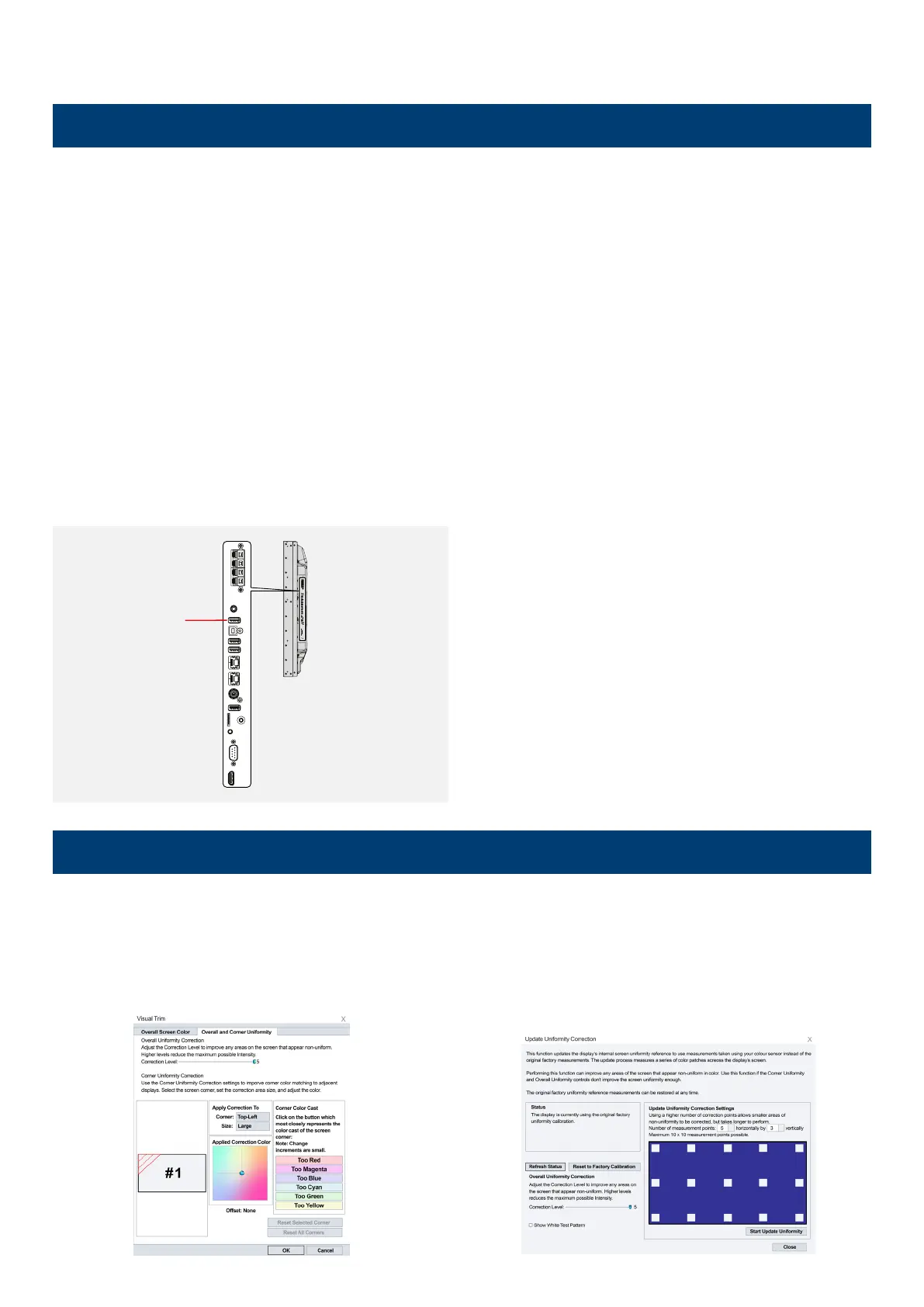

PC-less display Self-Calibration
Through self-calibration, each monitor adjusts its settings according to
the factory calibrated LUT, managed by the inbuilt SpectraView engine.
PC-less calibration uses an MDSV Sensor 3 directly connected to the
dedicated monitor’s USB interface.
Connect the MDSV Sensor 3 to the display monitor’s USB1 (SENSOR)
interface.
Menu: PICTURE > SPECTRAVIEW ENGINE > CALIBRATION > SET
STAND-ALONE CALIBRATION > SELF CALIBRATION > SET
Note: For proper handling, this feature is recommended for video walls of
up to 3x3 displays, depending on accessibility. For most efcient handling,
larger video walls should be calibrated via the PC-based Display Wall
Calibrator application.
PC-less White Copy function
Using the self-calibration feature, settings from a reference display are
copied to each dedicated display in the video wall. Connect a MDSV
Sensor 3 to the USB interface of the display to be adjusted. Using the
sensor, measure a white test pattern on the reference display to readjust
the display calibration.
Connect the MDSV Sensor 3 into the USB1 (SENSOR) interface of the
display to be adjusted.
Place the sensor on the reference monitor showing a white test pattern.
Menu: PICTURE > SPECTRAVIEW ENGINE > CALIBRATION > SET
STAND-ALONE CALIBRATION > WHITE COPY > SET
Note: To perform White Copy, self-calibration must be completed
beforehand. For proper handling, this feature is recommended for video
walls of up to 3x3 displays, depending on accessibility. For most efcient
handling, larger video walls should be calibrated via the PC-based Display
Wall Calibrator application.
In addition to the extensive calibration capabilities, two new high-end adjustment features lift the video wall calibration result to a new outstandingly high
level. For further details please refer to the Display Wall Calibrator application users manual.
Corner Uniformity Correction
To perform the corner colour matching on a single monitor.
Uniformity Correction
To perform internal screen uniformity on a display, up to 10x10
measurement points can be dened within one monitor.
Additional PC-less advanced calibration capabilities
Display Wall Calibrator application high-end adjustment capabilities
4
USB1 SENSOR

NEC MultiSync UN552S Specifications

General

Pixel pitch	0.63 x 0.63 mm
Response time	8 ms
Display diagonal	55 \
Display brightness	700 cd/m²
Display technology	LED
Native aspect ratio	16:9
Vertical scan range	23 - 86 Hz
Horizontal scan range	26 - 134 kHz
Contrast ratio (typical)	1700:1
Display diagonal (metric)	138.78 cm
Active display area (W x H)	1209.63 x 680.34 mm
Operating hours (hours/days)	24/7
Power consumption (standby)	0.5 W
Power consumption (typical)	234 W
Maximum refresh rate	60 Hz
Annual energy consumption	341 kWh
Purpose	Universal
Orientation	Horizontal/Vertical
Product color	Black
Product design	Video wall
Placement supported	Indoor
Bezel width (bottom)	0.44 mm
Panel mounting interface	400 x 400 mm
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	20 - 80 %
Certification	BSMI; CE; EAC; EMC B; FCC; PSB; RCM; REACH; RoHS; SASO; TÜV GS; TÜV S; UL/C-UL; VCCI
Sustainability certificates	RoHS
Cables included	AC, DisplayPort, HDMI
USB ports quantity	5
HDMI ports quantity	3
Compatible memory cards	MicroSD (TransFlash)
Ethernet LAN data rates	10, 100 Mbit/s
HDMI input ports quantity	2
Ethernet LAN (RJ-45) ports	1
Audio formats supported	AAC, MP3, WAV
Image formats supported	JPG, PNG
Video formats supported	FLV, H.264, MOV, MP4, MPG, WMV
Harmonized System (HS) code	85285210

Weight and Dimensions

Depth	98.6 mm
Width	1210.5 mm
Height	681.2 mm
Weight	25800 g
