Connections
NOTE: Do not connect/disconnect cables when turning on the monitor or other external equipment as this may result in a
loss of the monitor image.
NOTE: Use an audio cable without a built-in resistor. Using an audio cable with a built-in resistor turns down the sound.
Before making connections:
* First turn off the power of all the attached equipment and make connections.
* Refer to the user manual included with each separate piece of equipment.

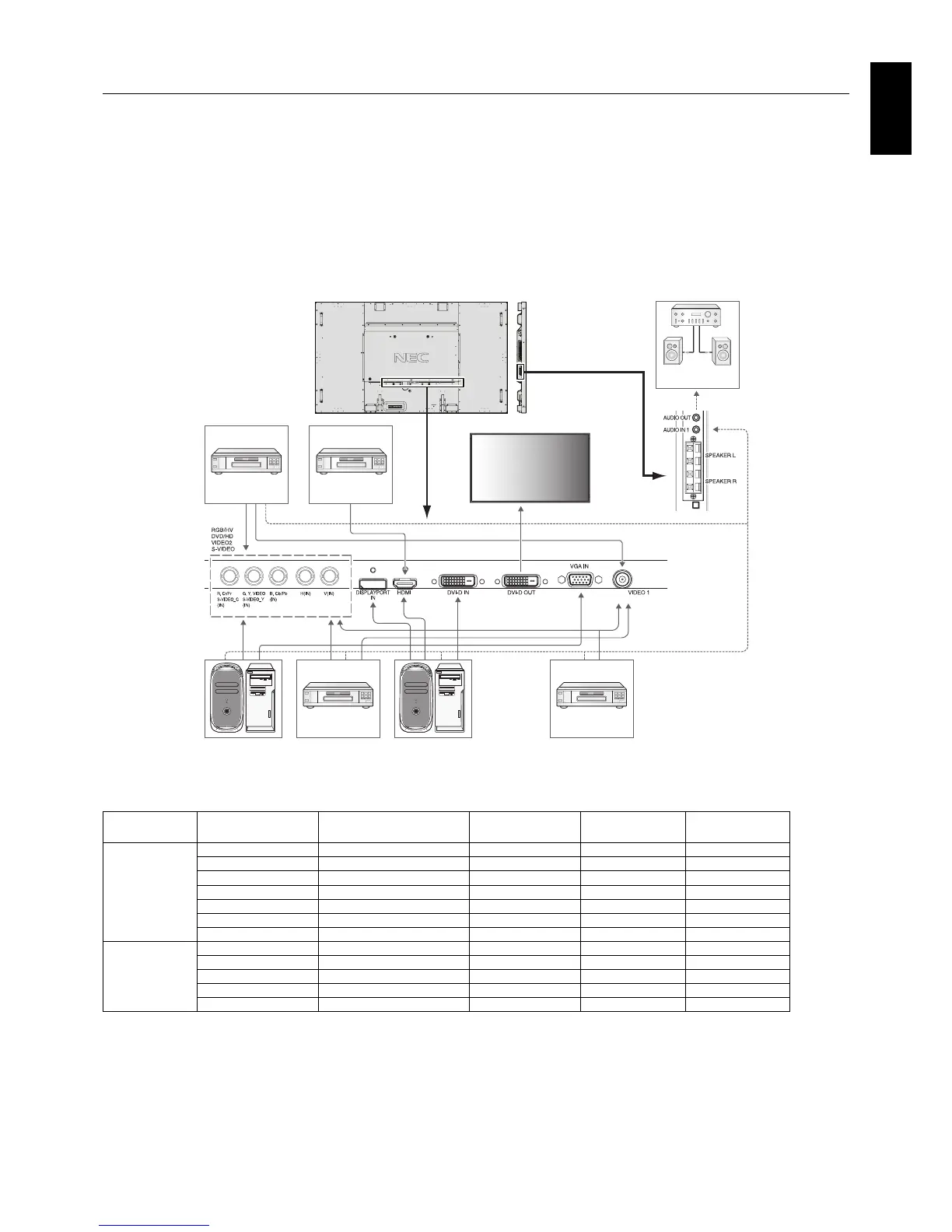

Wiring Diagram
DVD player
with HDMI out
DVD player
VCR or
DVD Player
Stereo Amplifi er
Second monitor*
Computer
(Analog)
Computer
(Digital)
DVD player with
SCART OUT
*: Multiple monitors that are daisy-chained have a limit to the connectable monitors.
Connected
equipment
Connecting
terminal
Setting in Terminal Mode Input signal name
Connecting
Audio terminal
Input button
in remote control
AV
DVI (DVI-D) DVI MODE: DVI-HD DVI AUDIO IN1 DVI
HDMI RAW/EXPAND*
1
HDMI HDMI HDMI
5BNC+VIDEO 1 BNC MODE: SCART SCART AUDIO IN1 DVD/HD
VIDEO1 (BNC) - VIDEO1 AUDIO IN1 VIDEO
S-VIDEO (5BNC) BNC MODE: S-VIDEO S-VIDEO AUDIO IN1 S-VIDEO
VIDEO2 (5BNC) BNC MODE: VIDEO VIDEO2 AUDIO IN1 VIDEO
DVD/HD (5BNC) BNC MODE: COMPONENT DVD/HD AUDIO IN1 DVD/HD
PC
VGA (D-Sub) - VGA AUDIO IN1 VGA
DVI (DVI-D) DVI MODE: DVI-PC DVI AUDIO IN1 DVI
RGB/HV (5BNC) BNC MODE: RGB RGB/HV AUDIO IN1 RGB/HV
DisplayPort - DPORT DPORT DISPLAYPORT
HDMI RAW/EXPAND*
1
HDMI HDMI HDMI
*1: depend on signal type.
Solid lines = video signal
Dotted lines = audio signal
