NETGEAR ProSafe GS748T User Manual

Page 11 of 20
Factory Defaults Button
The GS748T has a Factory Default Button to enable you to clear out the current configuration and return to the factory settings. This will clear out
all settings, including the password, VLAN settings and port configurations.

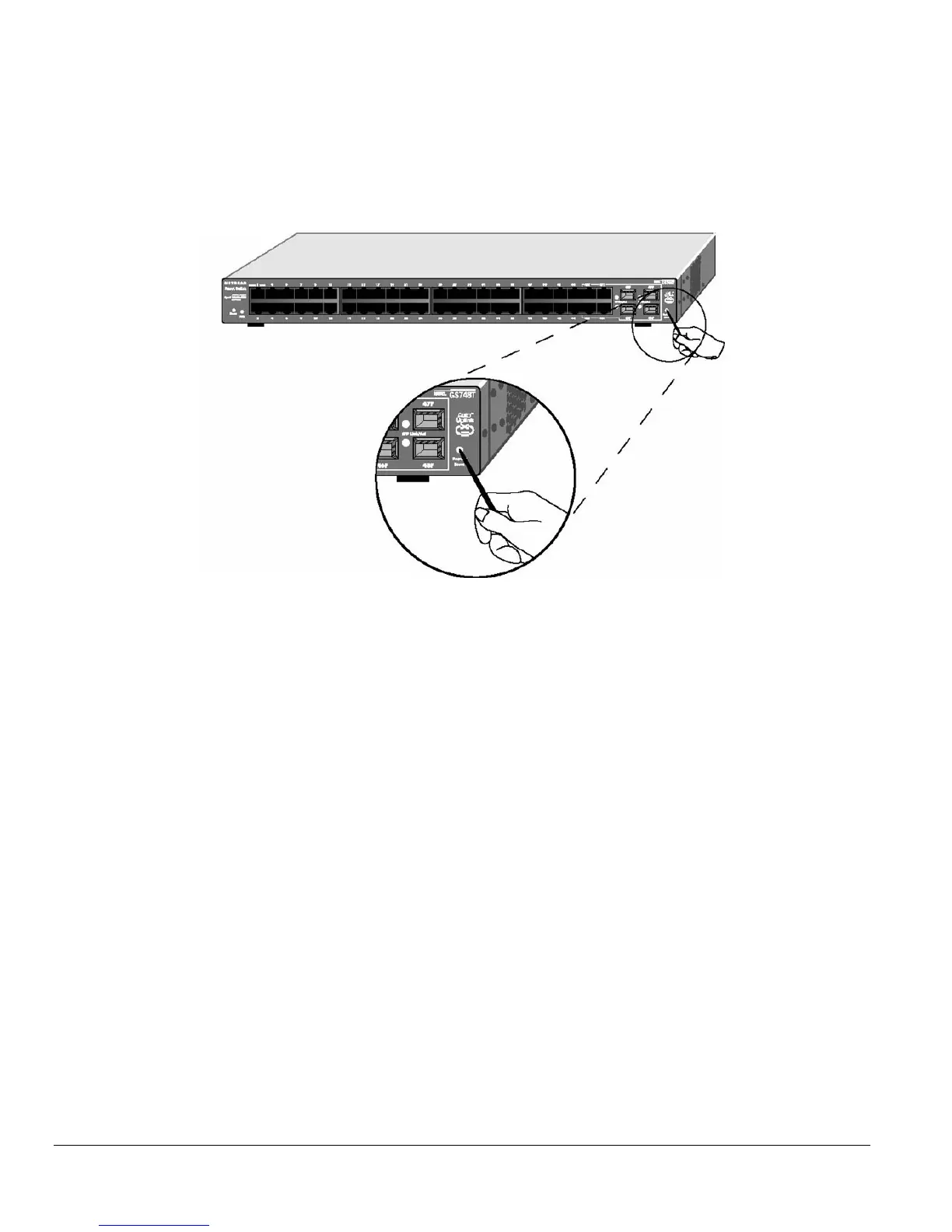

Figure 2-4. Factory Defaults Button of the GS748T Gigabit Smart Switch

NETGEAR ProSafe GS748T Specifications

Interface

RJ-45 connectors	48
SFP GBIC module bays	4
Auto Uplink	Yes

Performance Specifications

Bandwidth	40 Gbps
Network latency	Less than 20 microseconds
Buffer memory	1, 632 KB

Power Supply

Power consumption	70 W maximum
Input voltage	100-240VAC
Frequency	50-60 Hz

Physical Specifications

Dimensions (H x W x D)	1.7 x 17.3 x 10.1 in
Weight	8.8 lbs
Weight (kg)	4.0 kg

Environmental Specifications

Operating temperature	0 to 40°C
Storage temperature	-20 to 70°C
Operating humidity	90% maximum relative humidity
