SECTION 4 - MAINTENANCE
4-12
ROCK GUARDS

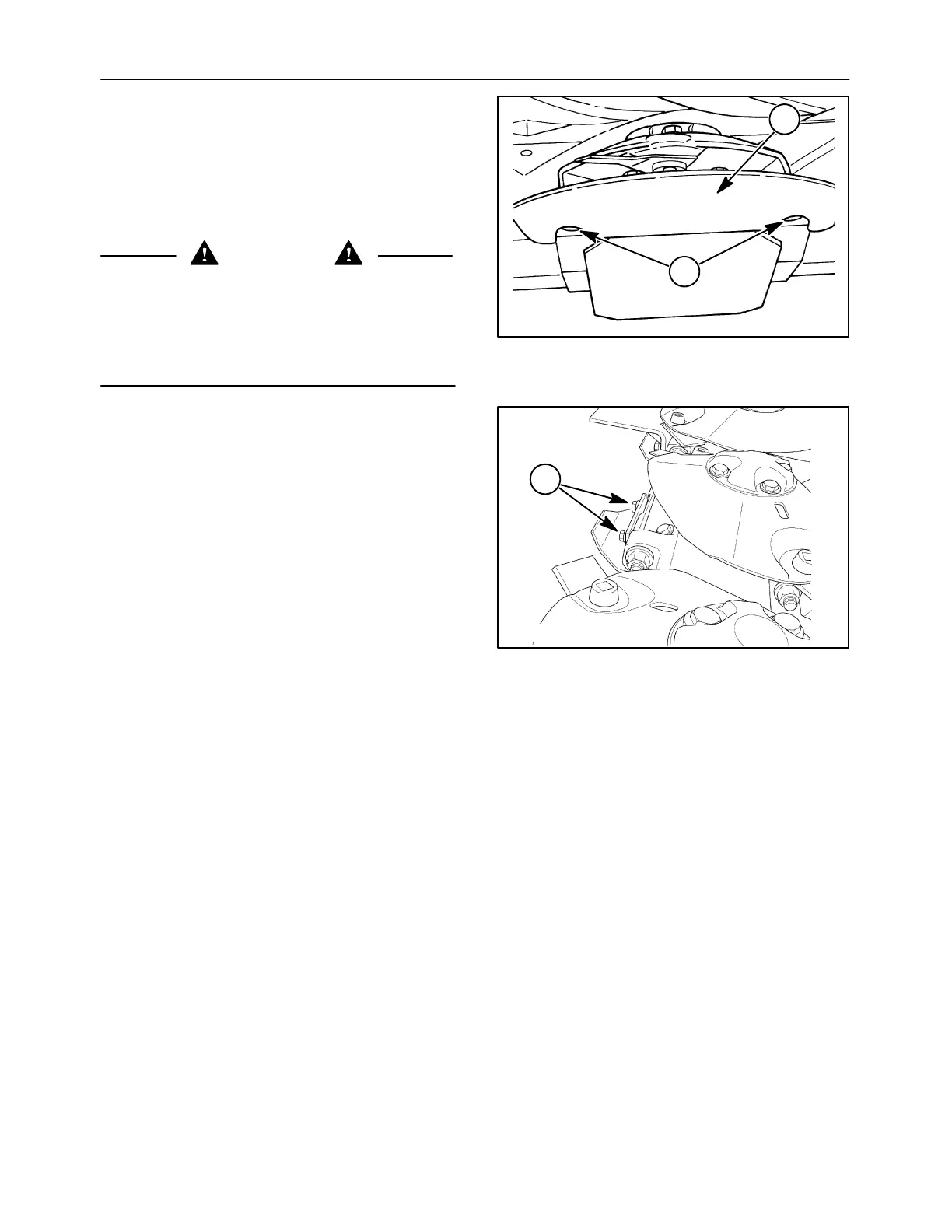

Rock guards, 1, can be removed by removing bolts, 2.
Replace broken rock guards immediately.
Replace rock guards which are worn thin before they
break.
WARNING
Disengage the PTO, turn off the tractor engine
and remove the key. Wait for all movement to
stop before leaving the operator’s position.
Never adjust, lubricate, clean or unplug machine
with the engine running. Failure to comply could
result in death or serious injury.
A3662-16
1
2
20
SKID SHOES
Skid shoes can be removed by removing bolts, 1.
Replace broken skid shoes immediately.
Replace skid shoes which are worn thin before they
break.
10004250
1
21
STORING THE MOWER
1. Clean the mower. Grease all fittings.
2. Drain the oil from the bevel gearbox and all
modules and refill with new, clean oil to the
correct level. Run the mower for a few minutes.
3. Store the cutter bar in the operating position.
4. Remove the drive belt and store it in a dry place.
5. Clean the cutter bar rusted areas and touch up
with factory paint. Spray cans are available from
your authorized dealer.
