New Holland
800TL Series Front-End Loader Specifications
Loaders for TM & TG Tractors
P
a
g
e 5
of
7
LOADER MODEL 850TL 850TL 850TL 850TL
L
oader type, NSL or MSL NSL MSL NSL MSL
T
RACTOR FAMILY TM TM TM (SS) TM (SS)
T
RACTOR MODELS 120-155 120-155 120-155 120-155
Lift capacity @ max. height @ 800 mm, lb. (kg) 4300 (1950) 4650 (2109) 4300 (1950) 4650 (2109)
Lift capacity @ max. height @ pins, lb. (kg) 6050 (2744) 5350 (2427) 6050 (2744) 5350 (2427)
Lift capacity @ 59 in. high @ 800 mm, lb. (kg) 4750 (2155) 5100 (2313) 4750 (2155) 5100 (2313)
Lift capacity @ 59 in. high @ pins, lb. (kg) 6750 (3062) 5950 (2699) 6750 (3062) 5950 (2699)
Breakout force @ 800 mm, lb. (kg) 5000 (2268) 5350 (2427) 5000 (2268) 5350 (2427)
Breakout force @ pins, lb. (kg) 7200 (3266) 6300 (2858) 7200 (3266) 6300 (2858)
Max. lift height, in. (mm) (A)..........................................................................................167 (4242).....................................................................................
Max. lift height under level bucket, in. (mm) (B)..........................................................................................155 (3937).....................................................................................
Clearance w/bucket dumped, in. (mm) (C) 129 (3277) 129 (3277) 136 (3454) 136 (3454)
Reach @ max. lift height, in. (mm) (D) 31 (787) 31 (787) 38 (965) 38 (965)
Max. dump angle, degrees (E) 56 55 56 55
Reach @ ground line, in. (mm) (F) 107 (2718) 108 (2743) 108 (2743) 107 (2718)
Bucket rollback angle, degrees (G).................................................................................................43............................................................................................
Digging depth, in. (mm) (H).............................................................................................5 (127)........................................................................................
Raising time, seconds 4.6 4.1 4.6 4.1
Lowering time, seconds 3.7 3.2 3.7 3.2
Bucket dump time, seconds 3.2 2.5 3.2 2.5
Bucket rollback time, seconds
...................................................................................................2.5 ...........................................................................................
Approx. weight, lb. (kg) (loader w/o bucket) 1385 (628) 1570 (712) 1385 (628) 1570 (712)
LOADER MODEL 860TL 870TL 870TL
Loader type, NSL or MSL MSL MSL MSL
TRACTOR FAMILY TM TG TG (SS)
TRACTOR MODELS 175-190 215-305 215-305
Lift capacity @ max. height @ 800 mm, lb. (kg) 4900 (2223) 5250 (2381) 5250 (2381)
Lift capacity @ max. height @ pins, lb. (kg) 5450 (2472) 5950 (2699) 5950 (2699)
Lift capacity @ 59 in. high @ 800 mm, lb. (kg) 5450 (2472) 6500 (2948) 6500 (2948)
Lift capacity @ 59 in. high @ pins, lb. (kg) 6300 (2858) 7550 (3425) 7550 (3425)
Breakout force @ 800 mm, lb. (kg) 5800 (2631) 7000 (3175) 7000 (3175)
Breakout for
ce @ pins, lb. (kg)
6650 (3016) 8150 (3697) 8150 (3697)
Max. lift height, in. (mm) (A) 176 (4470) 187 (4750) 187 (4750)
Max. lift height under level bucket, in. (mm)
(B)
164 (4166) 175 (4445) 175 (4445)
Clearance w/bucket dumped, in. (mm) (C) 138 (3505) 150 (3810) 150 (3810)
Reach @ max. lift height, in. (mm) (D)
31 (787) 35 (889)
65 (1651)
Max. dump angle, degrees (E) 45 57 58
Reach @ ground line, in. (mm) (F) 115 (2921) 109 (2769) 109 (2769)
Bucket rollback angle, degrees (G) 45 38 38
Digging depth, in. (mm) (H) 7 (178) 6 (152) 6 (152)
Raising time, seconds
4.6 3.4 3.4
Lowering time, seconds 3.7 2.7 2.7
Bucket dump time, seconds 2.9 1.8 1.8
Bucket rollback time, seconds 2.9
1.8
1.8
Approx. weight, lb. (kg) (loader w/o bucket)
1675 (760) 1780 (807) 1780 (807)
NSL = non self leveling MSL = mechanical self leveling (ss) = SuperSteer
NOTES: Specification based on ASAE (S301.3) and are subject to change without notice.
Dimensional and performance specifications are based on typical tractors and tire sizes.

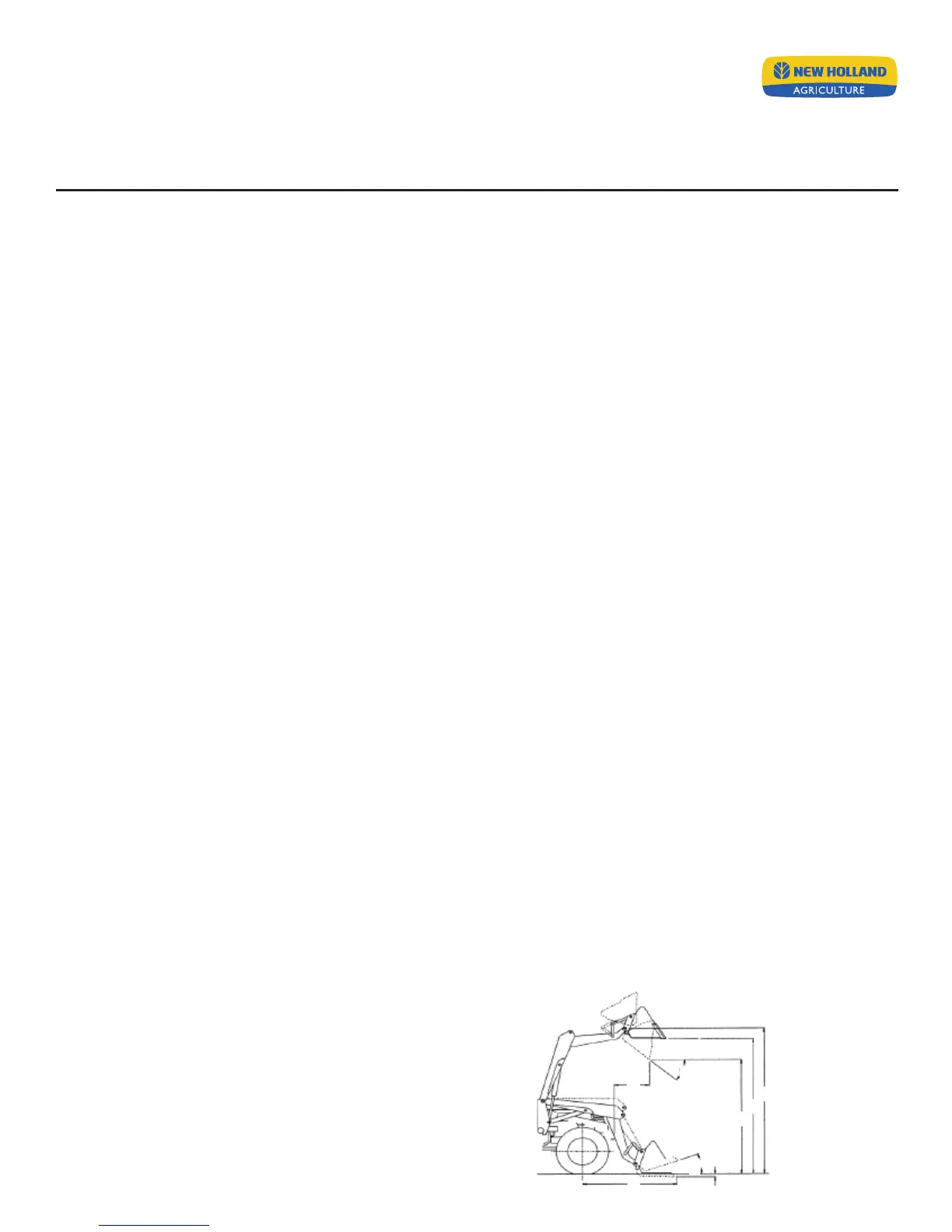

A
B
C
D
E
F
H
G
