2.5 TRANSPORTATION
(1) LOADING MACHINE ON A TRAILER
1. Keep trailer bed clean. Put chocks against truck wheels.
2. Use a ramp or loading deck. Ramps must be strong enough, have a low angle, and correct height. Load and
unload machine on a level surface.
3. Travel machine onto ramps slowly. Center the machine over the trailer.
4. Lower all attachments.
5. Stop engine. Remove key from switch.
Do not put chains over or against hydraulic lines or hoses.
6. Fasten machine to trailer with chains or cables.
During transportation, the bucket or attachments may hit the canopy or the cab. Therefore, set the machine in
the transporting position by observing following points:
a. Extend the bucket cylinder fully.
b. Extend the arm cylinder fully.
c. Lower the boom.
d. If machine cannot be transported with arm cylinder fully extended, remove bucket or attachment and extend
arm cylinder.

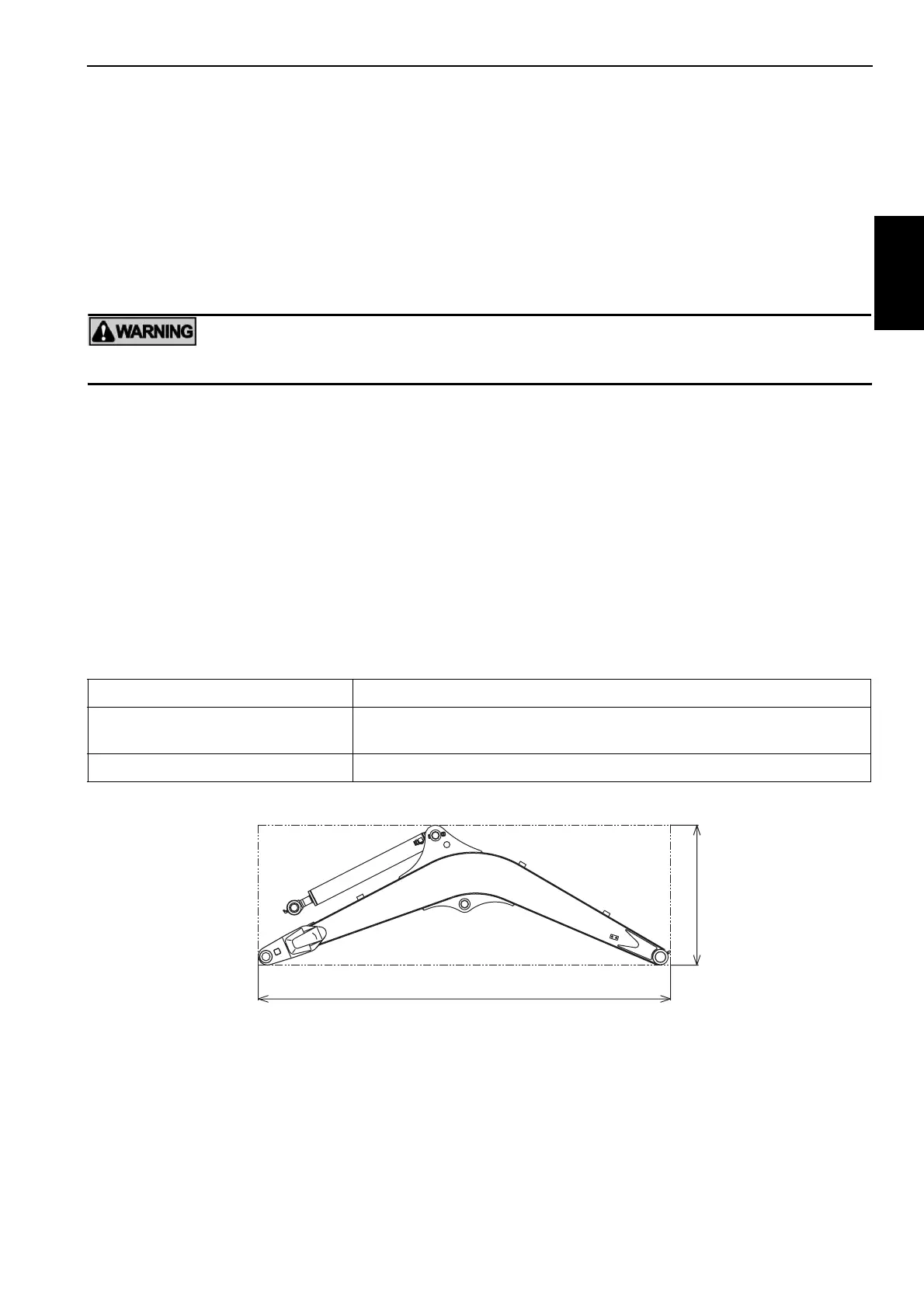

(2) TRANSPORTATION DIMENSION AND WEIGHT OF ATTACHMENT
1. BOOM WITH ARM CYLINDER
Model E50B
L X H X W
mm(ft-in)
2,910 X 1,040 X 310
(9'6.6") (3'4.9") (12.2")
Weight w/Arm cyl. kg (lb) 240 (529)
