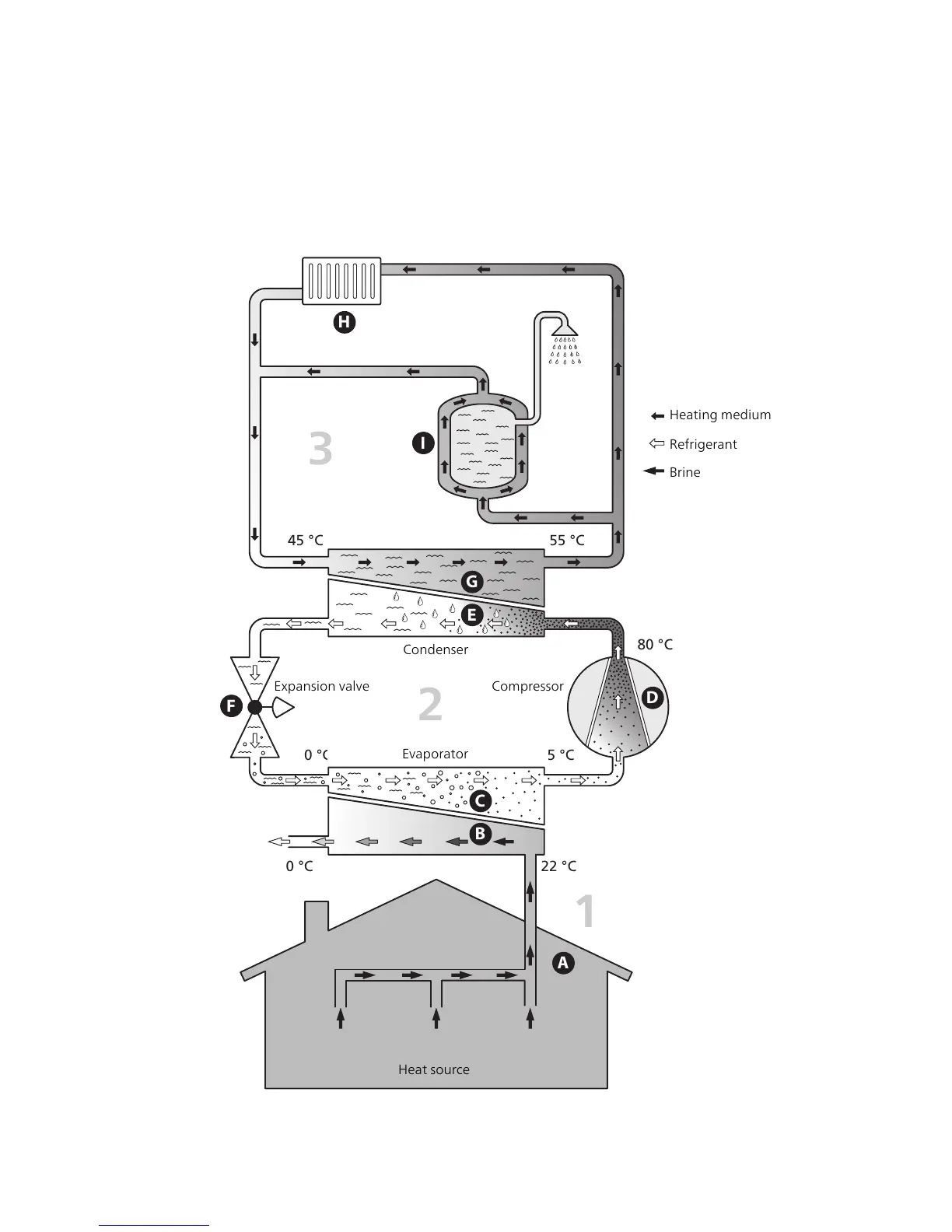

2 The heat pump – the heart of
the house
Värmebärare
Köldmedium
Rumsluft
Förångare
Kondensor
80 °C
22 °C0 °C
5 °C 0 °C
55 °C45 °C
Expansionsventil Kompressor
A
D
F
H
I
B
C
E
G
Heating medium
Värmebärare
Köldmedium
Köldbärare
Värmekälla
Förångare
Kondensor
100 °C
0 °C-3 °C
-2 °C
50 °C40 °C
Expansionsventil
Kompressor
A
D
F
H
B
C
E
G
Brine
Refrigerant
Evaporator
Condenser
Expansion valve Compressor
Heat source
1
2
3
The temperatures are only examples and may vary between different installations and
time of year.
NIBE™ F370Chapter 2 | The heat pump – the heart of the house8
