Nikon eclipse Ti-S/L100 User Manual

Chapter 1 Part Names
1.1 Microscope Configuration
12
1.1 Microscope Configuration
1.1.1 Ti-U, Ti-U/B
The illustrations below show the Ti-U microscope body with the following accessories:
TI-DH Dia Pillar Illuminator 100W, TI-C Condenser Turret, D-LH/LC Precentered Lamphouse LC, 12V
100W halogen lamp, TI-PS100W Power Supply, TI-SR Rectangular Mechanical Stage, TI-T-B Eyepiece
Base Unit, TI-TD Eyepiece Tube B, CFI 10x eyepieces, TI-ND6 Sextuple DIC Nosepiece, objectives, etc.
PORT
B

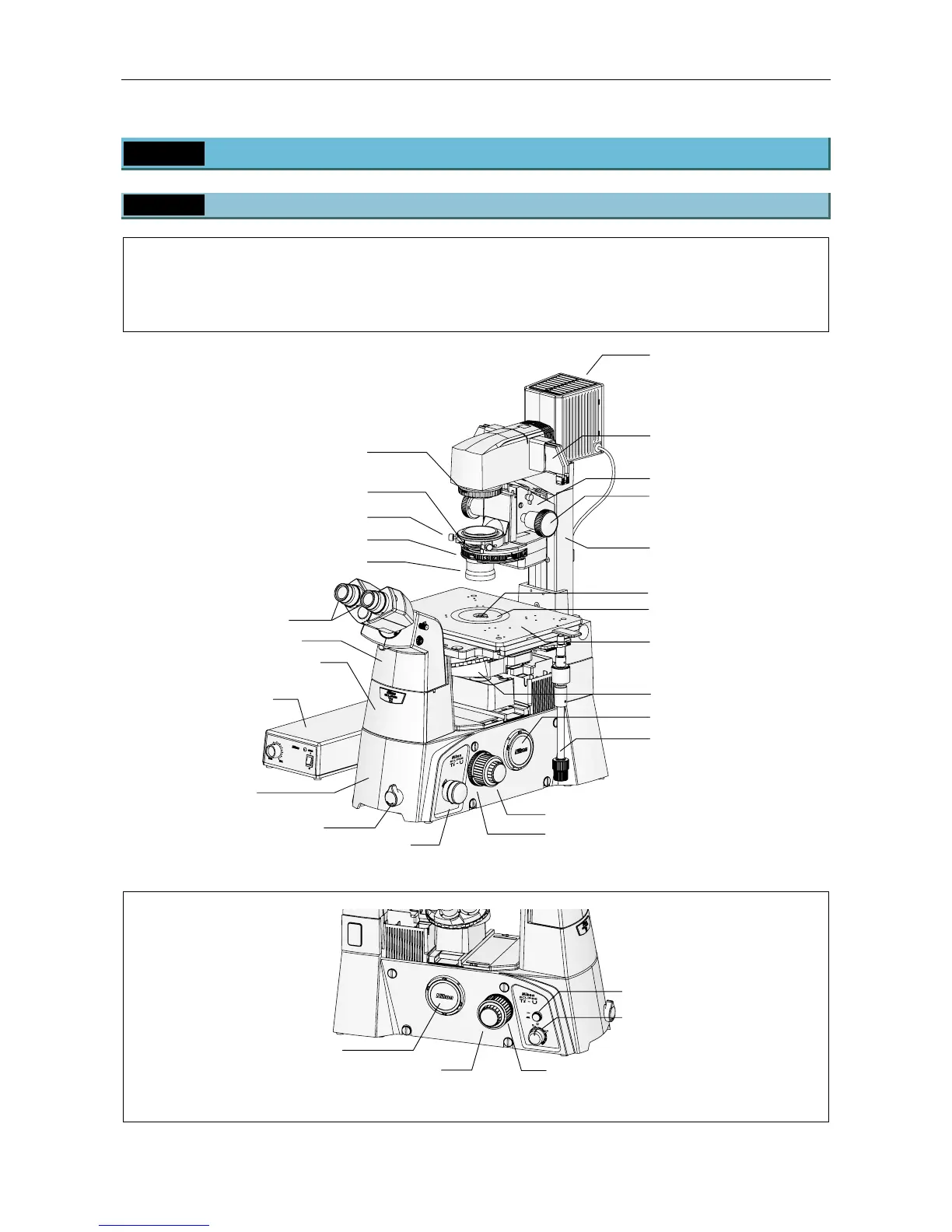

Figure 1-1 Ti-U
ON
OFF
6V30W
MAX.
12V100W
Figure 1-2 Ti-U (Left View)
* Attach a protective cap on the side port when the side port is not in use.
Dia illumination brightness
control knob
Dia illumination ON/OFF switch
Left side port*
Focus knob
(Coarse/Fine)
Torque adjustment ring
for coarse focus knob
Lamphouse for dia
illumination
(Fig.: D-LH/LC)
Filter sliders
(both sides, 4 total)
Dia pillar illuminator
(
Fi
g
.: TI-DH
)
Condenser mount
Stage (Fig.: TI-SR)
Nosepiece (Fig.: TI-ND6)
Stage knob
Right side port
Focus knob (Coarse/Fine)
Coarse focus stopper ring
Intermediate magnification
selector knob
(1.5x <
---
> 1x)
Microscope base
(Fig.: Ti-U)
Power supply device
(Fig.: TI-PS100W)
Eyepiece base unit (Fig.: TI-T-B)
Eyepiece tube (Fig.: TI-TD)
Eyepieces (both sides)
Field diaphragm knob
Condenser lens
Condenser turret (Fig.: TI-C)
Condenser centering knob (both sides)
Aperture diaphragm open/close leve
r
Condenser focus knobs
(both sides)
Ob
j
ectives
Stage ring (concentric ring)
Optical path
selector knob
