Nikon Monarch 7 User Manual

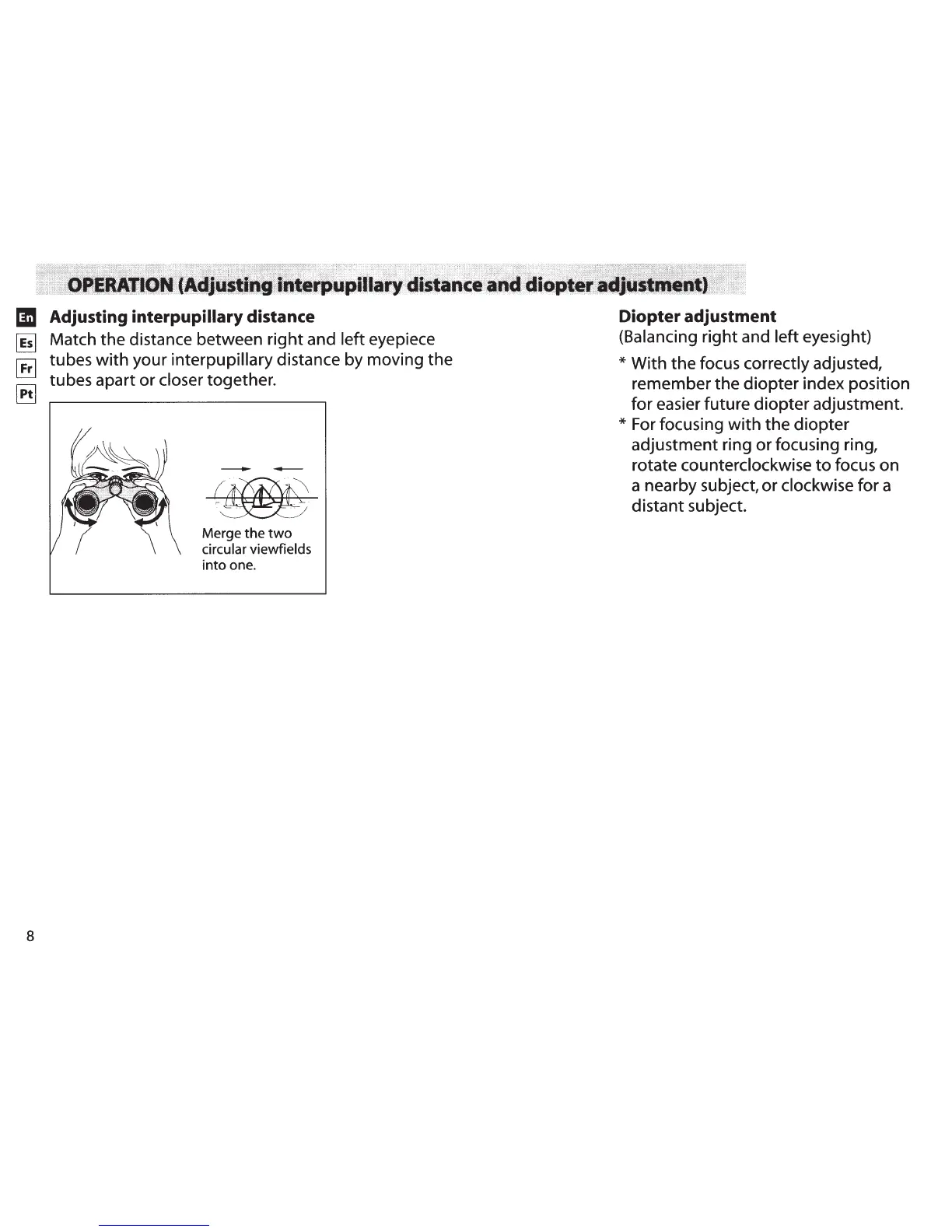

1m Adjusting interpupillary distance
~ Match the distance between right and left eyepiece
~ tubes with your interpupillary distance by moving the
tubes apart or closer together.
[!!]
8
-- --
Merge the two
circular viewfields
into one.
Diopter adjustment
(Balancing right and left eyesight)
* With the focus correctly adjusted,
remember the diopter index position
for easier future diopter adjustment.
* For focusing with the diopter
adjustment ring or focusing ring,
rotate counterclockwise
to focus on
a nearby subject, or clockwise for a
distant subject.

Nikon Monarch 7 Specifications

General

Magnification	8x
Objective Lens Diameter	42mm
Eye Relief	17.1mm
Weight	22.9 oz
Waterproof	Yes
Fogproof	Yes
Lens Coating	Fully Multicoated
Prism System	Roof
Interpupillary Distance	56-72mm
Close Focus Distance	8.2 feet
Prism Glass	Extra-low Dispersion (ED) Glass
Diopter Adjustment	±4
Dimensions	5.7 x 5.1 inches (8x) or 5.7 x 5.1 inches (10x)
