Total Station Nivo Series Instruction Manual 19
Preparation 2
Setting Up the Prism Reflector

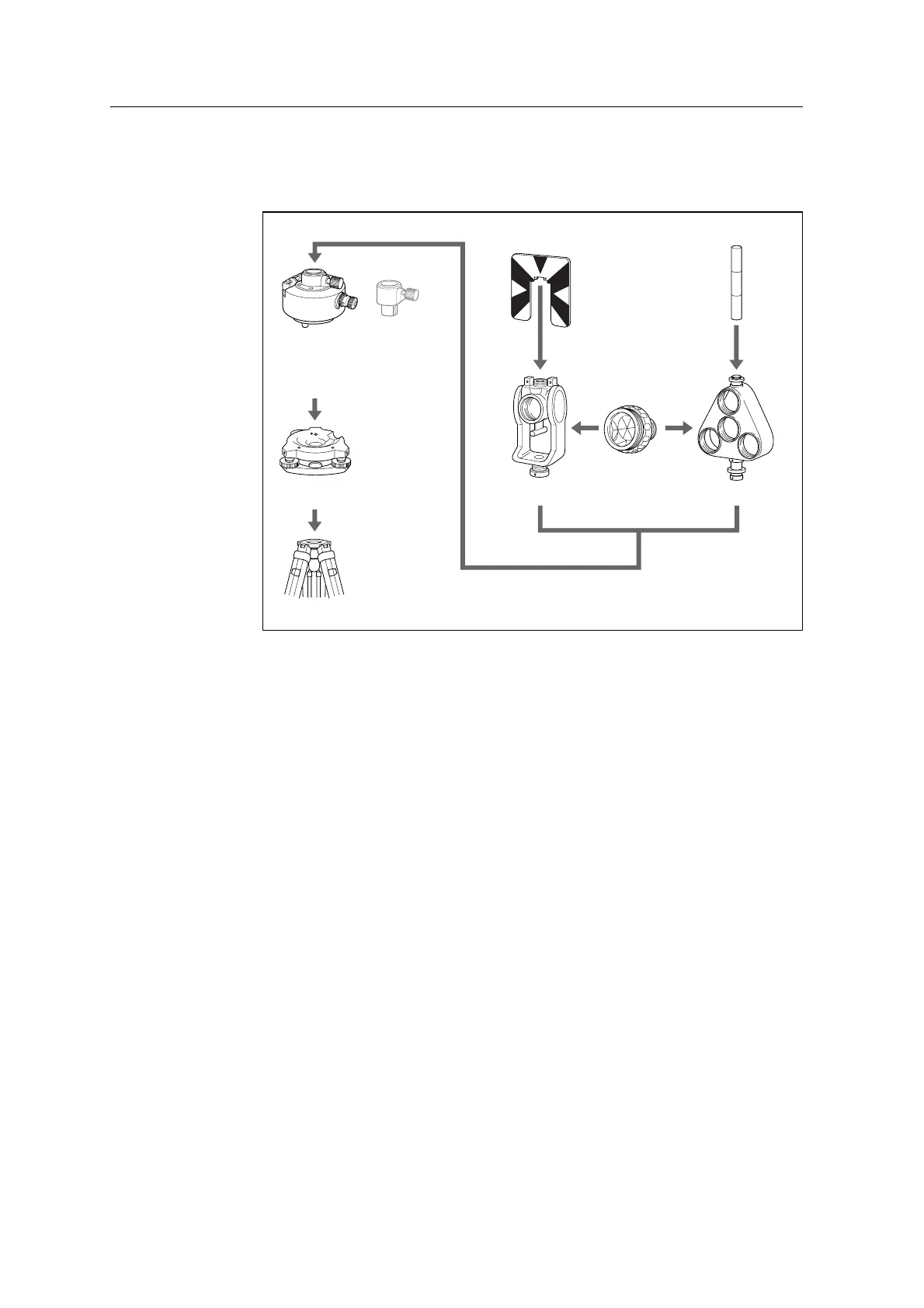

1. Assemble the prism reflector as shown below.
2. Adjust the height of the tribrach adaptor (see page 20).
3. If necessary, change the direction of the prism (see page 20).
4. If you are using a single prism holder, set the position of the target plate (see
page 20).
Detailed instructions for Step 2 through Step 4 are provided on the following pages.
Note – Nivo series must be used with the Tribrach W30 or W30b.
Tribrach
Tribrach
Tripod
Target plate for single prism
Tiltable single
prism holder
Prism C
Ta rge t pol e
Triple prism holder
Height adjust-
ment adapter
is not used.
W30/W30b
adapter 15
