5
EN
2.2 Operation elements
and model survey

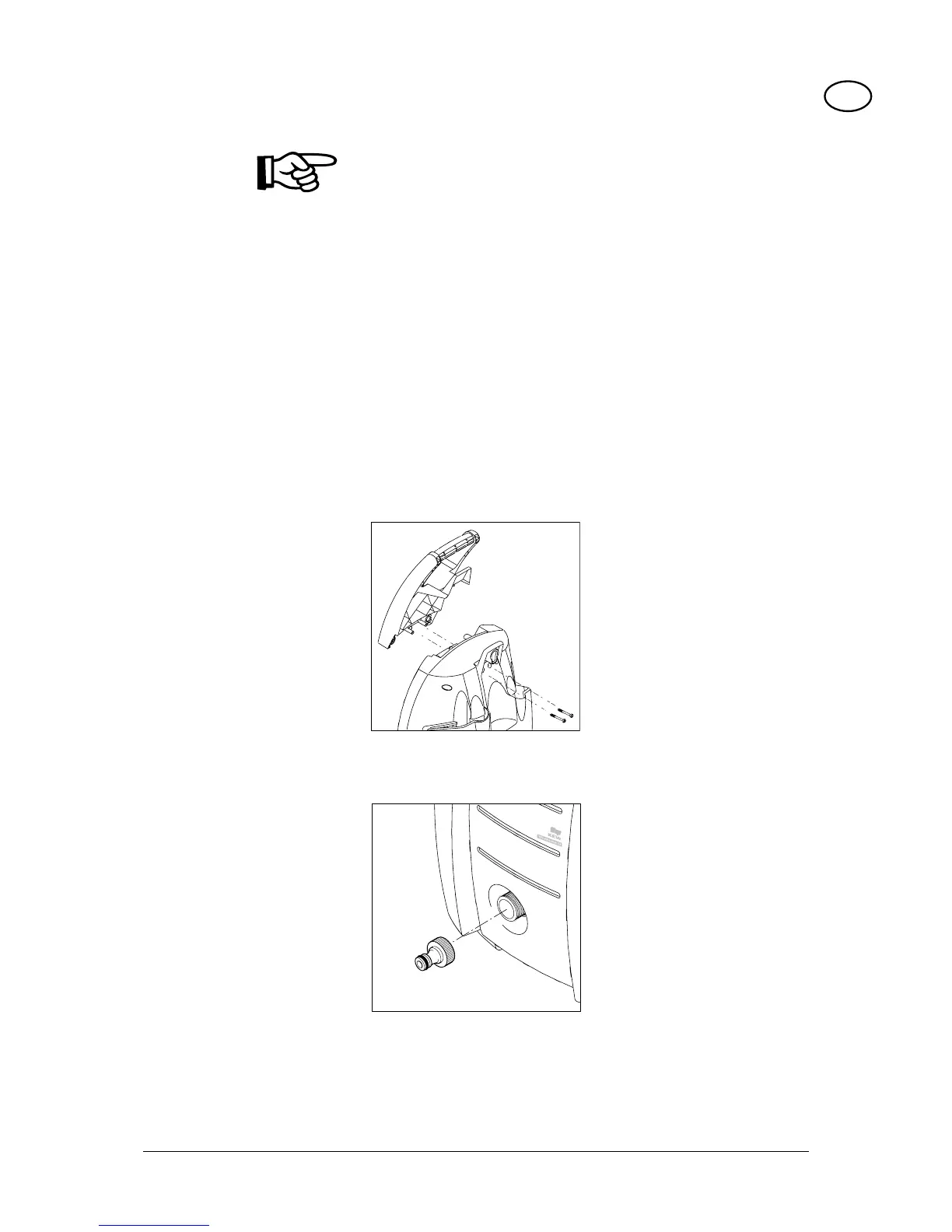

1. Place the trolley handle (12)
on the machine.
2. Secure the handle by mount-
ing the 2 screws.
3.2 Mounting of quick
coupling
1. Screw the quick coupling
tight on to the water inlet (2).
Note: The inlet fi lter (2a) must
always be fi tted in the water
inlet pipe to fi lter out sand, lime-
stone and other impurities as
these will damage the pump
valves.
Caution: Failure
to fi t the fi lter will
invalidate the
guarantee.
See foldout at the end of this
manual.
1 Start/stop switch
2 Water inlet with fi lter (2a)
3 High pressure connection
4 High pressure hose
5 Electric cable
6 Click & Clean spray lance
7 Spray gun with lock (7a)
8 Click & Clean Tornado
®
PR
nozzle
9 Click & Clean Powerspeed
®
nozzle
10 Click & Clean foam sprayer
11 Nozzle cleaning tool
12 Trolley handle
13 Hose hook
14 Model tag
15 Hook for electric cable
Specifi cations: See model tag
(14) of machine.
We reserve the right to alter the
specifi cations.
3 Before you start using your
pressure washer
3.1 Mounting of trolley
handle
