Nokia 1661 RH-121/RH-122
Service Manual Level 1&2
12 Confidential  Copyright © 2009 NOKIA  All rights reserved Version 1.2 ISSUE 1

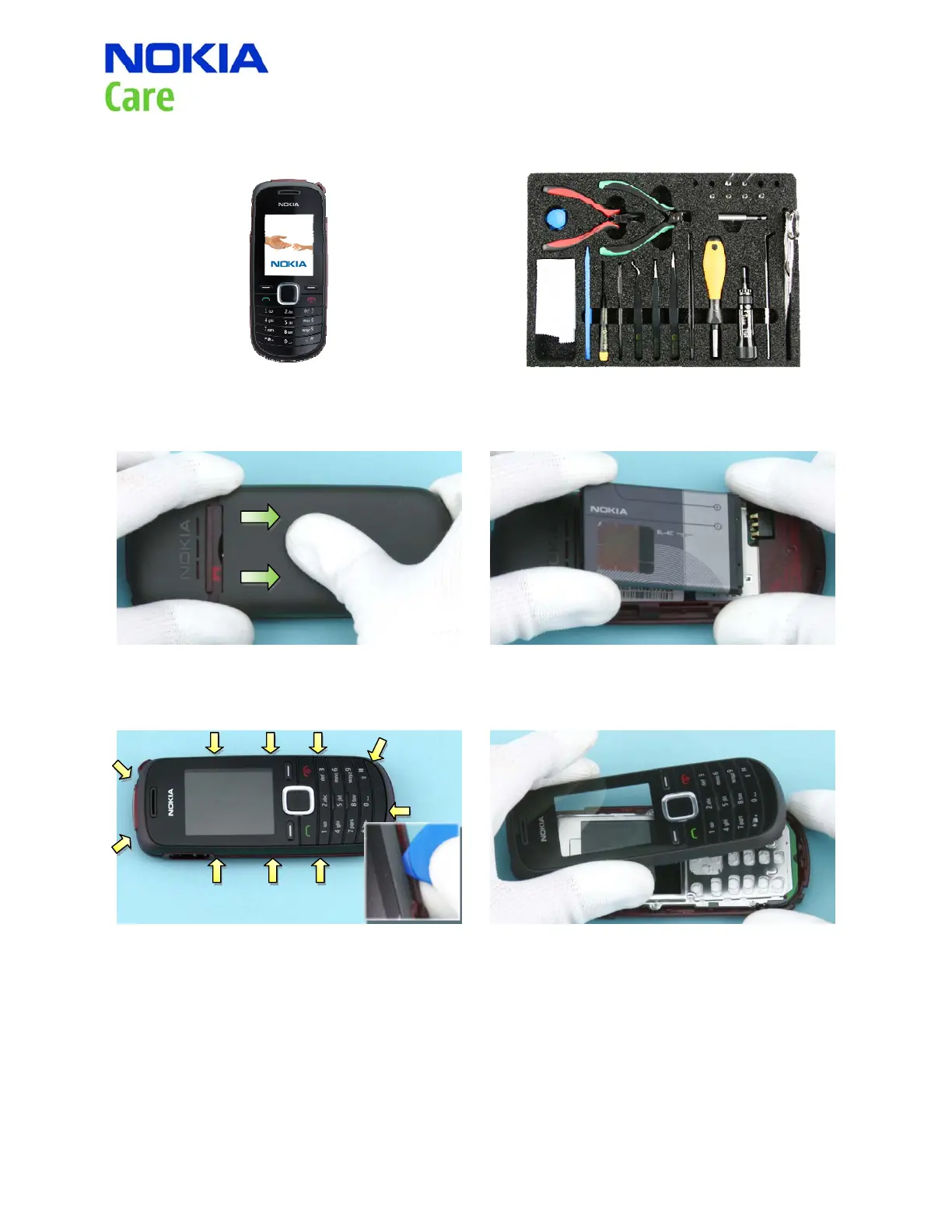

10. DISASSEMBLY INSTRUCTION
1) Nokia 1661 disassembly 2) You must use the Nokia Standard Toolkit version
2.
3) To remove the B-COVER pull it in the direction
shown.
4) Remove the battery.
5) Use the SRT-6 to detach the A-COVER. Slide the
SRT-6 along the cover edge to release the 10 clips.
6) Remove the A-COVER.
